MAX16491

• 4.5V to 16V Input Voltage Range
• 0.6V to 5.5V Output Voltage Range
• 9A Maximum Load
• High-Efficiency Solution

  • Up to 96% Peak
  • Up to 95.5% Full Load
  • Up to 94% Light-Load Efficiency at 1A with DCM Enabled
• Flexible Design allows Early PCB Definition

  • Footprint Compatible with VT2491/VT2491A and Related Scalable Products
  • Programmable Switching Frequency up to 1MHz
  • Programmable Soft-Start and STAT Delay Timings
  • Programmable Reference Voltage with External Input Option
  • Programmable Positive and Negative OCP Limit
  • Supports Current Sourcing and Sinking
• Advanced Architecture, Protection, and Reporting Guarantees Reliable Designs

  • Analog Current or Temperature Reporting
  • Differential Remote Sense with Open-Circuit Detection
  • Fast Transient Response with Quick-PWM™ Architecture
  • Percentage-Based Output Power Good and OVP
  • Open-Drain Status Indicator (STAT) Pin
  • Input Undervoltage and Overvoltage Lockout
  • Adaptive Dead-Time Control
• Saves Board Space

  • Integrated Boost Switch

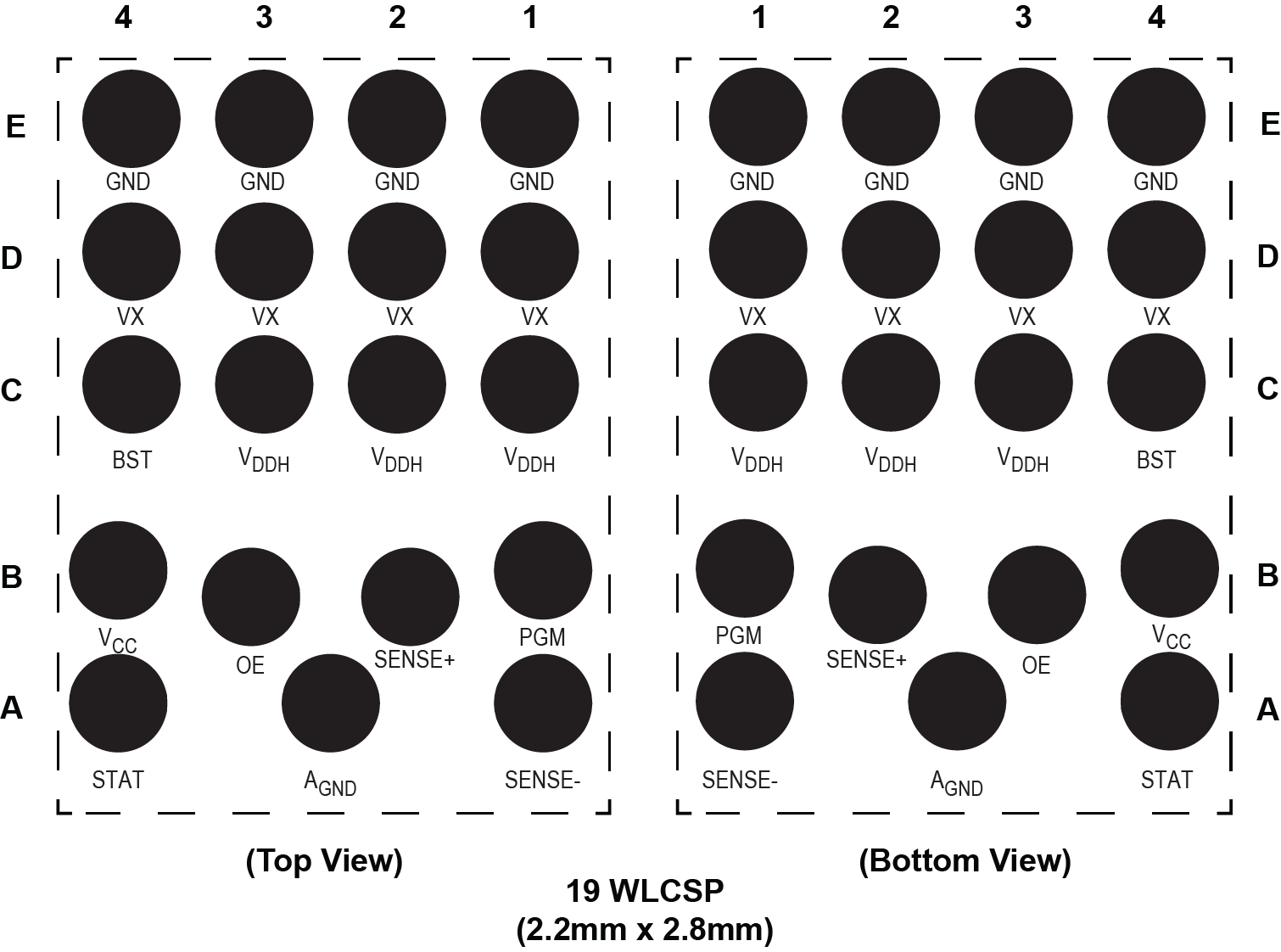

  • 19-Bump WLCSP (2.2mm x 2.8mm) Footprint
  • Operation Using Ceramic Input and Output Capacitors

The MAX16491 evaluation kit (EV kit) serves as a reference platform for evaluating the MAX16491 voltage regulator IC. This single-chip, integrated switching regulator provides an extremely compact, highly efficient, fast, accurate, and reliable power delivery solution for low-output voltage applications. The MAX16491 has different programmability options to enable a wide range of configurations.

The EV kit consists of a full-assembled and tested Printed Circuit Board (PCB) implementation of the MAX16491. Jumpers, test points, and input/output connectors are included for flexibility and ease-of-use. Refer to the IC data sheet for ordering information and more details.
