MAX16136
High-Precision Supervisory ICs with Window Watchdog and Overvoltage Indicator
Highly Accurate Automotive Voltage Monitoring Supervisor with Windowed Watchdog in Small 2x2 TDFN
Top
Overview
Features and Benefits
- ±1% Accuracy
- Enables ASIL Compliance at System Level
- FMEDA Results Available upon Request
- 0.5V to 5V Threshold Range with 20mV Increments
- ±4% to ±11% Undervoltage/Overvoltage Thresholds
- Latched Overvoltage Fault Output
- Clear Fault Input
- 5μs Overvoltage Fault Delay
- Window Watchdog Timeout
- Factory-Set Reset Timeout
- Open-Drain Reset Output
- 8-Pin TDFN Side-Wettable Package
- -40°C to +125°C Operating Temperature Range
Product Details

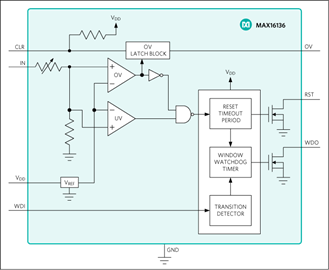

The MAX16136, a low voltage, ±1% accurate window-detector supervisor circuit monitors a single system supply voltage and the integrity of code execution by a microprocessor or microcontroller. This device features an active-low, open-drain output that asserts whenever the monitored supply rail falls outside of the factory-trimmed undervoltage/overvoltage window threshold. The reset output remain asserted for the programmed reset timeout period after the monitored supply voltage falls within the undervoltage/overvoltage window threshold.
The MAX16136 offers factory-trimmed voltage thresholds from 0.5V to 5V in approximately 20mV increment. A variety of factory trimmed undervoltage/overvoltage thresholds from ±4% to ±11% are available to accommodate different supply voltages and tolerances.
A window-watchdog timer circuit monitors microprocessor or microcontroller activity. During normal operation, the microprocessor or microcontroller must repeatedly toggle the watchdog input (WDI) low within the fast watchdog timeout (tWD_F) and slow watchdog timeout (tWD_S). If the microcontroller or microprocessor does not toggle WDI within the window-timeout period, the supervisor asserts the watchdog output (active-low WDO) to signal that the system is not executing code as expected. The watchdog output pulse can be used to reset the microprocessor or micro controller, or it may be used to interrupt the system to warn of execution errors.
In addition, the MAX16136 features an overvoltage fault output (active-low OV) that latches low when the monitored rail exceeds the overvoltage threshold. The latched output can be cleared by pulling active-low CLR low.
The MAX16136 is available in a small, 2mm x 2mm, 8-pin TDFN side-wettable package with exposed pad and operates over the automotive temperature range of -40°C to +125°C.
Applications
- Advanced Driver-Assistance Systems (ADAS)
- Automotive
- Multivoltage ASICs
- Servers
- Storage Equipment
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
Tools & Simulations
IBIS Models
IBS
MAX16136 IBIS Model
700.20K
Product Recommendations
MAX16136 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX1613600/VY+ | Material Declaration | Reliability Data | 8-LFCSP_SS-2X2X0.75 | |
| MAX1613600/VY+T | Material Declaration | Reliability Data | 8-LFCSP_SS-2X2X0.75 | |
| MAX1613603/VY+ | Material Declaration | Reliability Data | 8-LFCSP_SS-2X2X0.75 | |
| MAX1613603/VY+T | Material Declaration | Reliability Data | 8-LFCSP_SS-2X2X0.75 | |
| Wafer Fabrication Data |
