Features and Benefits
- Ultra-Small: Requires Only Three Ceramic Capacitors
- No Inductors Required
- Up to 125mA Output Current
- Regulated ±3% Output Voltage
- 1MHz Switching Frequency
- 1.8V to 5.5V Input Voltage
- 220µA Quiescent Current
- 0.1µA Shutdown Current
- Load Disconnect in Shutdown

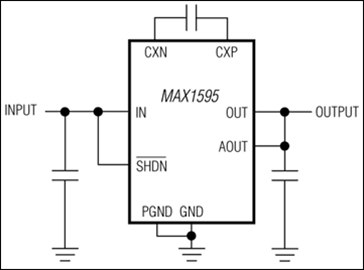

The MAX1595 charge-pump regulator generates either 3.3V or 5V from a 1.8V to 5.5V input. The unique control architecture allows the regulator to step up or step down the input voltage to maintain output regulation. The 1MHz switching frequency, combined with a unique control scheme, allows the use of a ceramic capacitor as small as 1µF for 125mA of output current. The complete regulator requires three external capacitors—no inductor is needed. The MAX1595 is specifically designed to serve as a high-power, high- efficiency auxiliary supply in applications that demand a compact design. The MAX1595 is offered in space-saving 8-pin µMAX® and high-power 12-pin TQFN packages.
- 3.3V to 5V Local Conversion Applications
- 3V to 5V GSM SIMM Cards
- Backup Battery Boost Converters
- Battery-Powered Applications
- Flash Memory Supplies
- Miniature Equipment
- PCMCIA Cards
- White LED Power
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
