MAX1589A
MAX1589A
PRODUCTIONLow-Input-Voltage, 500mA LDO Regulator with Active-Low RESET in SOT and TDFN
- Part Models
- 12
- 1ku List Price
- Starting From $1.83
Viewing:
Overview
- Low 1.62V Minimum Input Voltage
- Guaranteed 500mA Output Current
- ±0.5% Initial Accuracy
- Low 175mV Dropout at 500mA Load
- 70ms Active-Low RESET Output Flag
- Supply Current Independent of Load and Dropout Voltage
- Logic-Controlled Shutdown
- Thermal-Overload and Short-Circuit Protection
- Preset Output Voltages (0.75V, 1.0V, 1.3V, 1.5V, 1.8V, 2.5V, and 3.0V)
- Tiny 6-Pin Thin SOT23 Package (< 1.1mm High)
- Thin 6-Pin TDFN Package (< 0.8mm High)

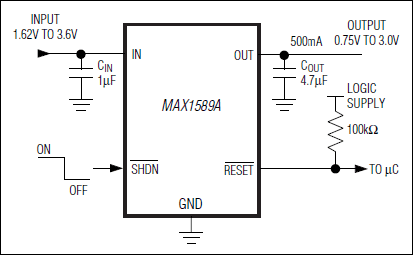

The MAX1589A low-dropout linear regulator operates from a +1.62V to +3.6V supply and delivers a guaranteed 500mA continuous load current with a low 175mV dropout. The high-accuracy (±0.5%) output voltage is preset to internally trimmed voltages from +0.75V to +3.0V. An active-low, open-drain reset output remains asserted for at least 70ms after the output voltage reaches regulation. This device is offered in 6-pin thin SOT23 and 6-pin, 3mm x 3mm thin DFN packages.
An internal pMOS pass transistor maintains low supply current, independent of load and dropout voltage, making the MAX1589A ideal for portable battery-powered equipment such as personal digital assistants (PDAs), digital still cameras, cell phones, cordless phones, and notebook computers. Other features include logic-controlled shutdown, short-circuit protection, and thermal-overload protection.
Applications
- CD and MP3 Players
- Cellular and PCS Phones
- Digital Still Cameras
- Handheld Computers
- Notebook Computers
- PCMCIA Cards
- Personal Digital Assistants (PDAs)
Documentation
Data Sheet 1
Technical Articles 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX1589AETT150+ | Thin Dual Flatpack No Leads, Exposed Pad | ||
| MAX1589AETT150+T | Thin Dual Flatpack No Leads, Exposed Pad | ||
| MAX1589AETT180+ | Thin Dual Flatpack No Leads, Exposed Pad | ||
| MAX1589AETT180+T | Thin Dual Flatpack No Leads, Exposed Pad | ||
| MAX1589AETT250+ | Thin Dual Flatpack No Leads, Exposed Pad | ||
| MAX1589AETT250+T | Thin Dual Flatpack No Leads, Exposed Pad | ||
| MAX1589AEZT100+ | TSOT | ||
| MAX1589AEZT100+T | TSOT | ||
| MAX1589AEZT180+ | TSOT | ||
| MAX1589AEZT180+T | TSOT | ||
| MAX1589AEZT250+ | TSOT | ||
| MAX1589AEZT250+T | TSOT |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Aug 2, 2025 - 2505 PIN/ERRATA |
||
| MAX1589AETT150+ | PRODUCTION | |
| MAX1589AETT180+ | PRODUCTION | |
| MAX1589AETT250+ | PRODUCTION | |
|
Jun 20, 2016 - 1612 ASSEMBLY |
||
| MAX1589AETT150+ | PRODUCTION | |
| MAX1589AETT150+T | PRODUCTION | |
| MAX1589AETT180+ | PRODUCTION | |
| MAX1589AETT180+T | PRODUCTION | |
| MAX1589AETT250+ | PRODUCTION | |
| MAX1589AETT250+T | PRODUCTION | |
|
Apr 20, 2026 - 2571D PIN/ERRATA |
||
| MAX1589AETT150+T | PRODUCTION | |
| MAX1589AETT180+T | PRODUCTION | |
|
Apr 20, 2026 - 2571C PIN/ERRATA |
||
| MAX1589AEZT100+T | PRODUCTION | |
| MAX1589AEZT180+T | PRODUCTION | |
| MAX1589AEZT250+T | PRODUCTION | |
