MAX15569
LAST TIME BUY2-Phase/1-Phase, QuickTune-PWM Controller with Serial I²C Interface
ARM Core VR Solution and General I²C Controller
- Part Models
- 1
- 1ku List Price
- price unavailable
Overview
- Multiphase Controller Maximizes Processor Performance
- 2-Phase QuickTune-PWM CPU Core Regulator
- Output-Voltage Control
- Active Load-Line Amplifier with Adjustable Gain
- ±5mV FB Accuracy Over Line and Load
- Programmable Slew Rate and Soft-Start
- Accurate Current Balance and Current Limit
- True Differential Remote Output Sense
- 8-Bit ADC Digitizes Current Sense to Store in Current Monitor Register
- Transient Phase Overlap Reduces Output Capacitance
- Programmable Functionality Allows Optimized Design Performance
- Programmable 300kHz to 1400kHz Switching Frequency
- Programmable Soft-Shutdown (2kΩ Discharge Switch)
- I2C Serial-Interface Control
- Robust Protection for Reliable Operation
- Overcurrent, Output-Voltage Overrange, Overvoltage, Undervoltage, and Thermal-Fault Protection
- System Status Register
- Multifunction Active-Low INT Output
- 4.5V to 24V Battery Input Range
The MAX15569 step-down controller consists of one multiphase regulator. The multiphase CPU regulator uses Maxim’s unique 2-phase QuickTune-PWM constant “on-time” architecture. The 2-phase CPU regulator runs 180° out-of-phase for true interleaved operation, minimizing input capacitance.
The device’s VR is controlled by writing appropriate data into a function-mapped register file. Output voltages are dynamically changed through a 2-wire, fast I²C interface (clock, data), allowing the switching regulator to be programmed to different voltages. A slew-rate controller allows controlled voltage transition and controlled soft-start. The regulator runs in a unique smart, low-power pulse-skipping-state algorithm for best efficiency over the full load range and the best transient response with respect to common pulse-skipping methods.
The device includes multiple fault-protection features: Output overvoltage protection (OVP), undervoltage protection (UVP), and thermal protection. When any of these fault-protection features detect a fault condition, the controller shuts down. A multifunction active-low INT output monitors output voltage, overcurrent (OC), overrange (VOUTMAX), and thermal faults (active-low VRHOT).

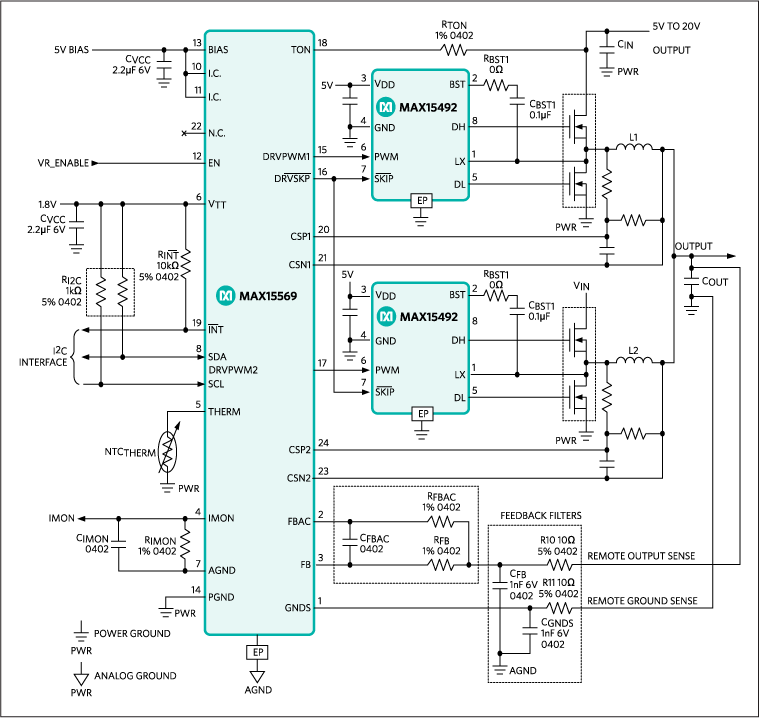

The controller has a programmable switching frequency, allowing 300kHz to 1400kHz per each phase of operation. The controller operates with a wide variety of drivers and MOSFETs, such as the MAX15492 MOSFET driver with standard MOSFETs, or with the power stage that integrates the drivers and MOSFETs together in a single device.
Applications
- ARM Core Power Supply
- Multiphase DC-DC Controllers
- Ultrabooks and Tablet Core Supply
- Voltage-Positioned Step-Down Converter
