MAX15492

PRODUCTION

Single-Phase Synchronous MOSFET Driver with Ultra-Low-Power Mode

Single-Phase Synchronous Buck MOSFET Driver with Ultra-Low-Power Mode in 2mm x 2mm Package

Data Sheet (Rev. 7) Product Selection Table

Part Models: 8
1ku List Price: price unavailable

Viewing:

Overview

Extends Battery Life
- Ultra-Low-Power Mode with 4µA Supply Current
- 2V to 24V Input Voltage Range
- Selectable Pulse-Skipping Mode
- 7ns Minimum Guaranteed Dead-Time
Allows Operation Up to 3MHz per Phase
- 0.7Ω Low-Side On-Resistance
- 1.5Ω High-Side On-Resistance
- 12ns Propagation Delay
- 4.2V to 5.5V Bias Supply Range (MAX15492)
- 3V to 5.5V Bias Supply Range (MAX15492B)
Integrated Boost Switch Saves Space and Cost

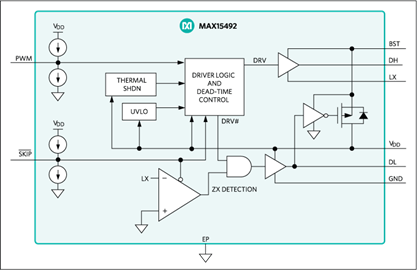

The MAX15492 is a synchronous half-bridge driver with ultra-low-power mode. The device is intended to work with controller ICs such as the MAX15411, MAX15566/MAX15567, or MAX15576/MAX15577 in multiphase CPU core regulators. To provide the best light-load efficiency, the controller can place the device into an ultra-low power mode where the supply current is only 4µA.

The low-side driver is optimized to drive 3nF capacitive loads with 3ns/7ns typical fall/rise times, and the high-side driver with 7ns/14ns typical fall/rise times. Adaptive dead-time control prevents shoot-through currents and maximizes converter efficiency.

The MAX15492 is available in a small, 8-pin (2mm × 2mm) TDFN package with an exposed pad.

Applications

Intel® Ultrabook™/Notebook Computers
Multiphase DC-DC Converters
Tablet Computers

Part Models: 8
1ku List Price: price unavailable

Documentation

Data Sheet 1

MAX15492: Single-Phase Synchronous MOSFET Driver with Ultra-Low-Power Mode Data Sheet (Rev.7) 08/13/2021

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX15492BGTA+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX15492BGTA+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX15492BGTA/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX15492BGTA/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX15492GTA+	8-LFCSP-2X2X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX15492GTA+T	8-LFCSP-2X2X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX15492GTA/V+	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX15492GTA/V+T	Thin Dual Flatpack No Leads, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
