MAX15104

PRODUCTION

Small 2A, Low-Dropout Linear Regulator in a 2.7mm × 1.6mm Package

Smallest, 1.7V to 5.5V, High PSRR, 2A LDO (150mV, max) on the Market

Data Sheet (Rev. 1) Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.39

Viewing:

Overview

1.7V to 5.5V Operating Range
150mV Dropout Guaranteed at 2A
±1.6% Output Accuracy Over Line, Load, and Temperature
70dB PSRR at 500kHz
Adjustable Output from 0.6V to 5.2V
Foldback Current Protection
Thermal Shutdown Protection
Low Noise 15µV_RMS (typ)
Small 1.6mm × 2.7mm WLP Package

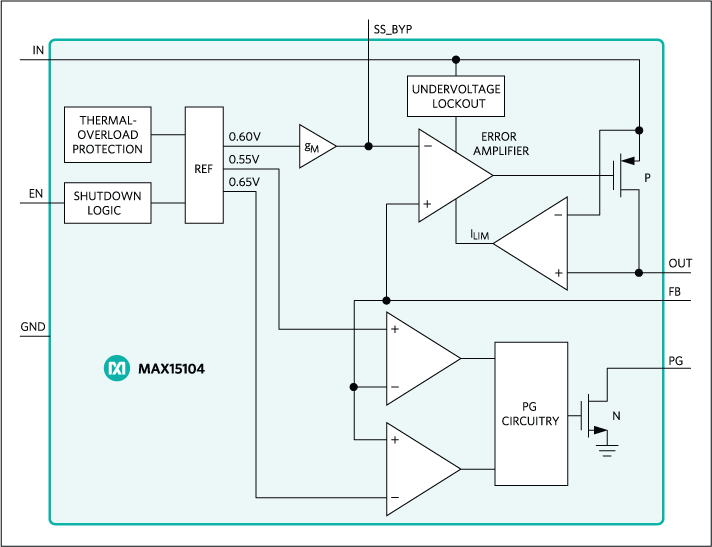

The MAX15104 is a small, low-dropout (LDO) linear regulator optimized for networking, datacom, and server applications. The regulator delivers up to 2A from a 1.7V to 5.5V input supply with output accuracy of ±1.6%. The output is adjustable down to 0.6V with a guaranteed dropout voltage of less than 150mV at full load. The internal p-channel switch is protected with a foldback current limit and thermal shutdown.

The MAX15104 features an external bypass input to reduce noise. This bypass input also serves as a soft-start control. An enable input and power-good output are included for power sequence control.

The MAX15104 is available in a 1.6mm × 2.7mm WLP package and is fully specified from the -40°C to +85°C operating temperature range.

Applications

Base Stations
Networking
PLL Power
Servers
Telecom/Datacom

Part Models: 2
1ku List Price: Starting From $2.39

Documentation

Data Sheet 1

MAX15104: Small 2A, Low-Dropout Linear Regulator in a 2.7mm × 1.6mm Package Data Sheet (Rev.1) 08/30/2016

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX15104EWL+	15-WLCSP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX15104EWL+T	15-WLCSP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
