MAX15068

Dual ORing, Single Hot-Swap Controller with Accurate Current Monitoring

Show More showmore-icon

Board Saving, 0.6% Current-Sense Accuracy, Single Chip for Both ORing and Hot-Swap SOA Control

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 2
1ku List Price Starting From $3.38
Features
  • 2.9V to 18V Operating Voltage Range (ORing and Hot Swap)
  • Seamless Power Transition of Redundant Supplies
  • Controls n-Channel MOSFETs
  • < 0.5µs Reverse Turn-Off Time
  • Precision Current Monitoring
  • Adjustable Slew-Rate Control
  • Adjustable Current-Limit Fault Delay
  • Adjustable Circuit-Breaker Current Threshold
  • Inrush Current Regulated at Startup
  • Adjustable Undervoltage Lockout
  • Small (4mm x 5mm) TQFN Package
Additional Details
show more Icon

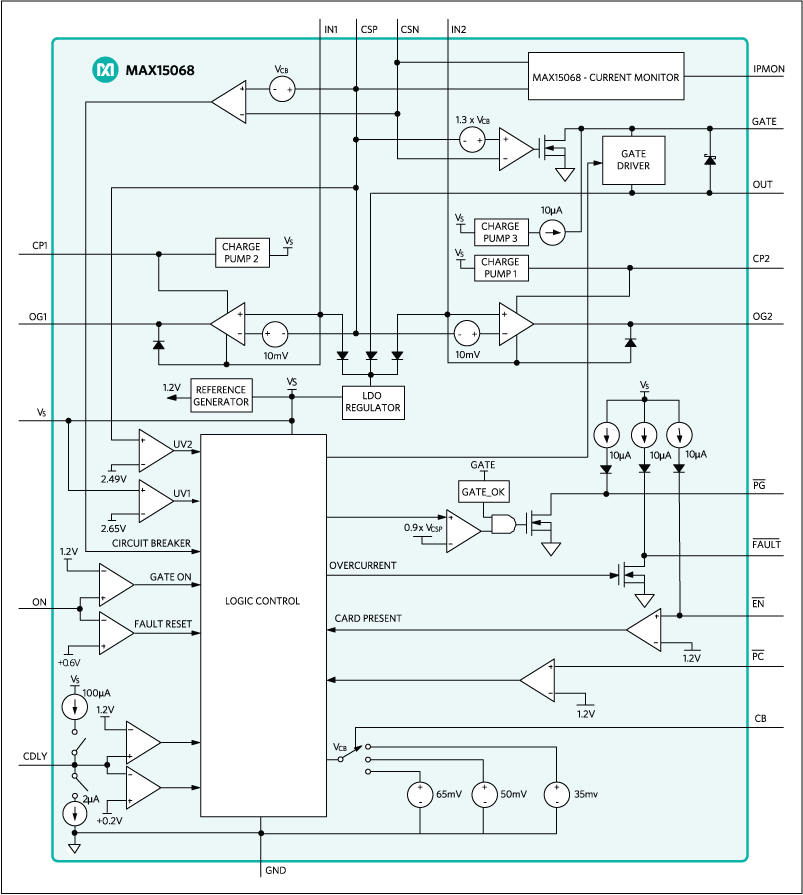

The MAX15068 offers ORing function and hot-swap features for two input-supply-rail applications requiring the safe insertion and removal of circuit line cards from a live backplane. The device integrates dual ORing MOSFET controllers, a single hot-swap controller, electronic circuitbreaker protection, and power monitoring in a single package. The device operates on 2.9V to 18V supply voltages.

The device regulates the forward voltage drop across the ORing MOSFETs to ensure smooth current transfer from one supply to the other without oscillation. The ORing MOSFET turns on quickly to reduce the load voltage drop during supply switchover. If the input supply fails or is shorted, a fast turn-off minimizes reverse-current transients.

The device implements a foldback current limit during hotswap startup in order to control inrush current, thereby keeping the hot-swap MOSFET under safe operating area (SOA). After the hot-swap startup cycle is completed, onchip comparators provide active current-limit protection against short-circuit and overcurrent faults. The load is disconnected from the input quickly in the event of a fault condition.

The device provides a current-sense amplifier output. A voltage proportional to the current delivered to the system can be read directly at the IPMON pin.

The device is factory-calibrated to deliver accurate overcurrent protection with ±5% accuracy. During an overcurrent-fault condition, the device enters an autoretry mode. The device features an adjustable slew-rate control during startup. Additional features include power-good and fault-indicator outputs.

The MAX15068 is available in a 20-pin, (4mm x 5mm) TQFN package and is specified from a -40°C to +125°C operating temperature range.

Applications

  • Baseband Station
  • Computer Systems and Servers
  • Redundant Power Supplies
  • Storage Bridge Bay
  • Supply Holdup
  • Telecom Networks
Part Models 2
1ku List Price Starting From $3.38

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX15068ATP+
  • HTML
  • HTML
MAX15068ATP+T
  • HTML
  • HTML

Software & Part Ecosystem

Evaluation Kits 1

MAX15068EVKIT

Evaluation Kit for the MAX15068

zoom

MAX15068EVKIT

Evaluation Kit for the MAX15068

Evaluation Kit for the MAX15068

Features and Benefits

  • 4.8V to 18V Operating Voltage Range
  • Banana Jacks for Input and Output Voltage
  • Current Monitoring
  • Programmable Slew-Rate Control
  • Selectable Circuit-Breaker Threshold
  • Configurable Undervoltage Lockout
  • Adjustable Current-Limit Fault Delay
  • Active-Low FAULT and PG Outputs
  • Enable Input
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

The MAX15068 evaluation kit (EV kit) provides a proven design to evaluate the MAX15068 dual ORing, single hotswap controller. The EV kit operates from a 4.8V to 18V range and provides a solution for evaluating two input supply rail applications requiring the safe insertion and removal of circuit line cards from a live backplane. Each rail has an individual ideal diode and is connected to the load through a single hot-swap MOSFET. The EV kit uses the MAX15068ATP+ in a 4mm x 5mm, 20-pin TQFN package on a proven four-layer PCB design.

Applications

  • Baseband Station
  • Computer Systems and Servers
  • Redundant Power Supplies
  • Storage Bridge Bay
  • Supply Holdup
  • Telecom Networks

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
