MAX14912

Octal High-Speed, High-Side Switch/Push-Pull Driver

Show More showmore-icon

Industry's Most Robust and Fastest 24V Driver, Capable of 200kHz Switching Rate, Improves Factory Throughput

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $8.89
Features
  • Low Power and Heat Dissipation
    • 230mΩ (max) High-Side RON at TA = 125°C
    • High-Efficiency 5V/100mA Buck Regulator
  • Fast Switching Ideal for High-Speed Control Systems
    • 0.1µs (typ.) Propagation Delay (High-Side Mode)
    • 0.5µs (typ.) Propagation Delay (Push-Pull Mode)
    • 200kHz Switching-Rate Capability in Push-Pull Mode
    • Fast Inductive Load Demagnetization
  • Robust Operation
    • 60V Abs Max VDD Rating
    • Safe-Demagnetization with Maxim Integrated's patented SafeDemag™: Turn-Off of Unlimited Inductance
    • IEC61000-4-2 12kV Air Gap/8kV Contact ESD Protection
    • ±1kV/42Ω Surge Protection with TVS on VDD
    • Robust SPI Interface with Watchdog and CRC
    • -40°C to +125°C Ambient Operating Temperature Range
  • Extensive Diagnostics Reduces System Downtime
    • Per Driver and Chip Thermal Shutdown
    • Open-Wire Detection in High-Side Mode
    • Low Supply Voltage Warning
    • Undervoltage Detection
    • Overvoltage Detection on OUT
    • Overcurrent Detection
    • LED Drivers for Visual Fault and Output State Indication
  • Flexible Interface for Ease of Design
    • Serial and/or Parallel Control Interface
    • Per-Channel Configuration and Monitoring
    • Wide Logic Voltage Range (1.6V to 5.5V)
  • Small Package and High Integration Enables Compact High-Density I/O Modules
    • 56-Pin QFN 8mm x 8mm Package
    • Eight High-Side Switches/Push-Pull Drivers
    • Daisy-Chainable SPI Interface
Additional Details
show more Icon

The MAX14912/MAX14913 have eight 640mA smart high-side switches that can also be configured as push-pull drivers for high-speed switching. The propagation delay from input to switching of the high-side/low-side drivers is 1µs (max). Each high-side driver has a low on-resistance of 230mΩ (max) at 500mA load current at TA = 125°C.

The device is configured and controlled either through pins or the SPI interface. The SPI interface is daisy-chainable, which allows efficient cascading of multiple devices. SPI also supports command mode, for the highest detailed diagnostic information. The MAX14912 allows configuration through SPI in parallel and serial setting modes, while the MAX14913 only supports configuration through SPI in serial setting mode.

Open-load detection in high-side mode detects both open-wire conditions in the switch on/off states, and LED drivers provide indication of per-channel fault and status conditions. Internal active clamps accelerate the shutdown of inductive loads fast in high-side mode.

The MAX14912/MAX14913 are available in a 56-pin QFN 8mm x 8mm package.

Applications

  • Building Automation
  • Industrial Digital Outputs
  • PLC Systems
Part Models 2
1ku List Price Starting From $8.89

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX14912AKN+
  • HTML
  • HTML
MAX14912AKN+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 8, 2019

- 1904

DESIGN,ELECTRICAL DA

MAX14912AKN+

PRODUCTION

MAX14912AKN+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 8, 2019

- 1904

arrow down

DESIGN,ELECTRICAL DA

MAX14912AKN+

PRODUCTION

MAX14912AKN+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

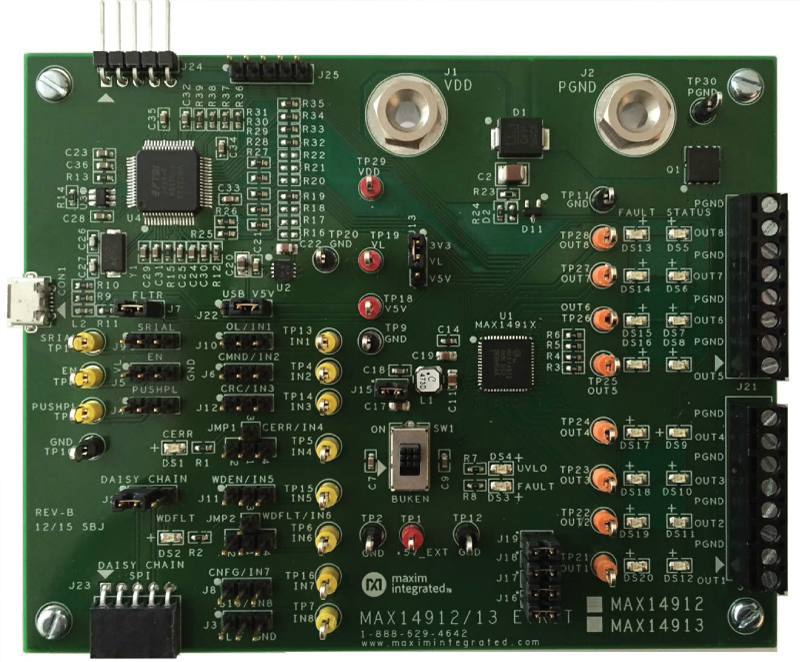

MAX14912EVKIT

Evaluation Kit for the MAX14912 and MAX14913

zoom

MAX14912EVKIT

Evaluation Kit for the MAX14912 and MAX14913

Evaluation Kit for the MAX14912 and MAX14913

Features and Benefits

  • Robust Operation with Wide Range of Input Voltages and Load Conditions
  • SPI Interface with up to 20MHz Clock Rate
  • Parallel Interface with up to 200kHz Switching Rate
  • Manual Control in Parallel Mode
  • Wide Logic Voltage Range
  • -40°C to +125°C Temperature Range
  • On-Board LED Indication of Status and Fault Conditions
  • Daisy-Chain Capability
  • Reverse-Voltage Protection
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Windows 7, Windows 8 and Windows 10 Compatible Software

Product Detail

The MAX14912/MAX14913 evaluation kit (EV kit) provides a proven design to evaluate the MAX14912 or MAX14913 octal digital output driver. The EV kit includes an evaluation board and a graphical user interface (GUI) that provides communication from a PC to the target device through a USB port.

The EV kit includes Windows 7, Windows 8 and Windows 10 compatible software for exercising the features of the IC. The EV kit GUI allows controlling the MAX14912/MAX14913 in either Parallel Mode or Serial (SPI) Mode. The EV kit must be powered from an external +24V power supply and can consume up to 10A when fully loaded.

The MAX14912EVKIT/MAX14913EVKIT comes with a MAX14912AKN+, or MAX14913AKN+ installed in a 56-pin, 8 x 8mm TQFN-EP package.

Applications

  • Building Automation
  • Industrial Digital Outputs
  • PLC Systems
reference details image

MAX14913EVKIT

Evaluation Kit for the MAX14912 and MAX14913

zoom

MAX14913EVKIT

Evaluation Kit for the MAX14912 and MAX14913

Evaluation Kit for the MAX14912 and MAX14913

Features and Benefits

  • Robust Operation with Wide Range of Input Voltages and Load Conditions
  • SPI Interface with up to 20MHz Clock Rate
  • Parallel Interface with up to 200kHz Switching Rate
  • Manual Control in Parallel Mode
  • Wide Logic Voltage Range
  • -40°C to +125°C Temperature Range
  • On-Board LED Indication of Status and Fault Conditions
  • Daisy-Chain Capability
  • Reverse-Voltage Protection
  • Proven PCB Layout
  • Fully Assembled and Tested
  • Windows 7, Windows 8 and Windows 10 Compatible Software

Product Detail

The MAX14912/MAX14913 evaluation kit (EV kit) provides a proven design to evaluate the MAX14912 or MAX14913 octal digital output driver. The EV kit includes an evaluation board and a graphical user interface (GUI) that provides communication from a PC to the target device through a USB port.

The EV kit includes Windows 7, Windows 8 and Windows 10 compatible software for exercising the features of the IC. The EV kit GUI allows controlling the MAX14912/MAX14913 in either Parallel Mode or Serial (SPI) Mode. The EV kit must be powered from an external +24V power supply and can consume up to 10A when fully loaded.

The MAX14912EVKIT/MAX14913EVKIT comes with a MAX14912AKN+, or MAX14913AKN+ installed in a 56-pin, 8 x 8mm TQFN-EP package.

Applications

  • Building Automation
  • Industrial Digital Outputs
  • PLC Systems
reference details image

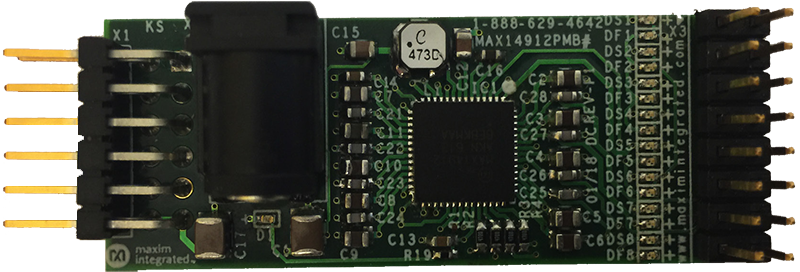

MAX14912PMB
