Features and Benefits
- Design with Wide Signal Range
- Wide ±25V Analog Input Signal Range
- Single 3.0V to 5.5V Supply Voltage
- 1.62V to 5.5V Flexible Logic Input Levels
- High Performance Analog Switch
- 2.5Ω (max) On-Resistance at +85°C
- 18mΩ (typ) On-Resistance Flatness
- ±100nA (max) On-Leakage Current at +85°C for MAX14774
- ±200nA (max) On-Leakage Current at +85°C for MAX14779
- ±200mA (max) Continuous Current Through Each Switch
- Short Circuit Protection on Each Switch
- 147MHz (typ) Signal Bandwidth for MAX14774
- Small 4mm x 4mm 20-Pin TQFN Package
- -40°C to +125°C Operating Temperature Range
The MAX14774 quad SPST and the MAX14779 dual SPDT Beyond-The-Rails switches support switching analog signals of up to ±25V using a single 3.0V to 5.5V supply. The MAX14774 is a quad SPST switch configuration with four EN_ control inputs, and the MAX14779 is a dual SPDT switch configuration with two EN_ and two S_ control inputs. Both the MAX14774 and MAX14779 have a flexible 1.62V to 5.5V CMOS logic interface.
The switches feature 2.5Ω (max) on-resistance and 18mΩ (typ) flatness at 85°C. The MAX14774 has a low on-leakage current of ±100nA (max) while the MAX14779 has ±200nA (max) at 85°C. The switches maintain the performance over the entire common-mode voltage range to maximum signal integrity. Each device can carry up to 200mA (max) of continuous current in either direction while operating from -40°C to +125°C.
- ATE Systems
- Switching Full Speed USB, CAN, RS-232/485, TTL, Audio
- Instrumentation Systems
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

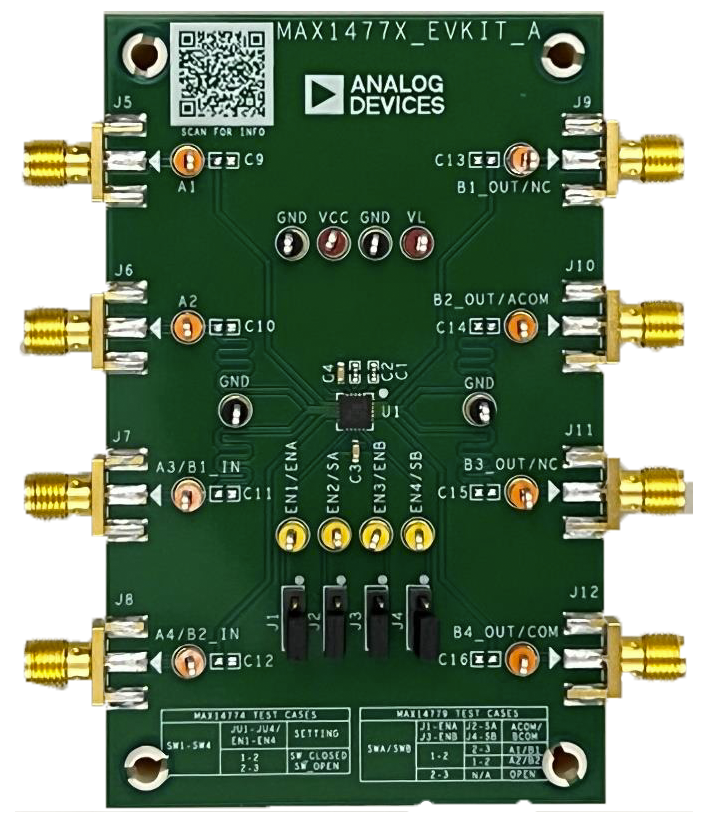

The MAX1477X evaluation kit (EV kit) provides a proven design to evaluate the MAX14774, a quad single-pole/single-throw (SPST), or the MAX14779, a dual single-pole/double-throw (SPDT) Beyond-the-RailsTM analog switch. The MAX1477XEVKIT# is fully assembled and tested and comes populated with the MAX14774ATP+.
The MAX1477XEVKIT# can also be used to evaluate the MAX14779ATP+. See the Configure the MAX1477X EV Kit section for more information.
