MAX14713
Compact 6A Smart Power Path Selector
Provides the system power from two separate power sources with ultra-low supply current
Top
Overview
Features and Benefits
- Provides Robust Bidirectional Power Path
- Wide Operating Input Voltage: +1.6V to +5.5V
- 6A Continuous Current Capability
- Integrated Two 11mΩ (typ) MOSFET Switches
- Simple Power-Switch Design
- Individual Path Control
- Automatic Power Path Control
- Automatic Soft-Start
- Powered by IN1, IN2, or OUT
- Long Battery Life
- Ultra-Low Quiescent Supply Current 2.5μA (typ)
- Fast Switchover
- Optimum Soft-Start Feature
- Space-Saving Package
- 15-Bump 1.2mm x 2.0mm WLP
Product Details

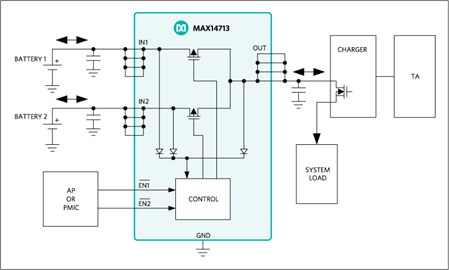

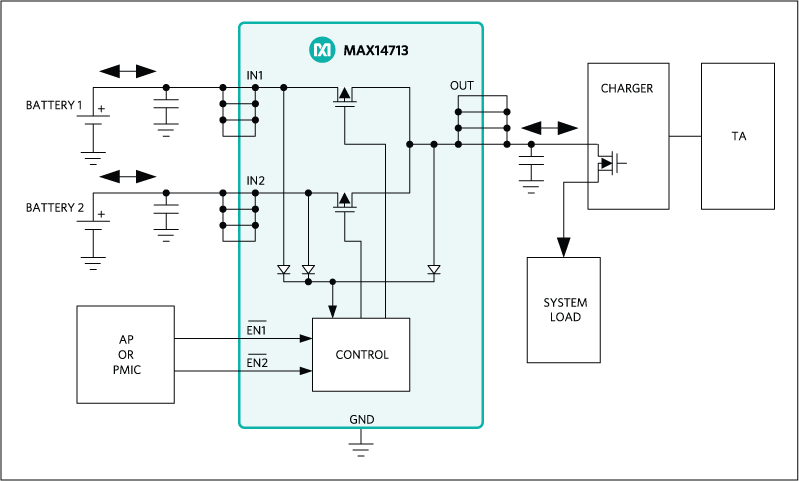

The MAX14713 compact 6A smart power path selector features a low, 11mΩ (typ) RON internal FET and provides the system power from two separate power sources. The device has two switches in SPDT configuration, with bidirectional current-blocking capability when the switch is off.
The MAX14713 features two individual enable inputs to control each power path. Each enable input controls the corresponding path as an independent switch. However, when both paths are enabled, the internal comparator controls the path based on the voltage at input nodes. The device also features an ultra-low supply current, in the operating or off states, for longer battery life.
The device is available in a 15-bump (1.2mm x 2.0mm) wafer-level package (WLP) and operates over the -40ºC to +85ºC extended temperature range.
Applications
- e-Readers
- Smart Phones
- Tablet PCs
- Wearables
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
