Features and Benefits

  • Provide Efficient System Battery Switch
    • Integrated FET for Bidirectional Blocking
    • Ultra-Low 7mΩ (typ) RON
    • Wide +2.3V to +5.5V Input Voltage Range
    • Low Quiescent Current
  • Save Space
    • Integrated Pulldown and Logic Buffer Circuits
    • 12-Bump, 1.3mm x 1.7mm, 0.4mm Pitch WLP Package

Product Details

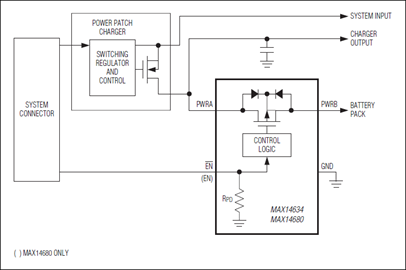

The MAX14634/MAX14680 bidirectional battery switches feature reverse blocking capability to isolate the battery from the system. These internal switches feature ultra-low 7mΩ (typ) on-resistance and operate from a +2.3V to +5.5V input voltage range, making these devices ideal battery-disconnect switches for high-capacity battery applications. The slew-rate controlled switches are also ideal for a large load capacitor as well as high-current load switching applications.
The devices are available in an ultra-small 12-bump (1.3mm x 1.7mm, 0.4mm pitch) WLP package. The tiny, low-profile package is suitable for space-limited portable device applications. The devices operate over the -40°C to +85°C extended temperature range.


  • Battery Isolators
  • Smartphone Battery Switches
  • Tablet PC Battery Switches

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAX14634EWC+ Material Declaration Reliability Data N/A
MAX14634EWC+T Material Declaration Reliability Data N/A
Wafer Fabrication Data MAX14634 Reliability Data
