MAX14594E

High-Density, ±5V Capable DPDT Analog Switches

Show More showmore-icon

Reduces Click and Pop and Provides Low RON in Only 1.2mm x 1.2mm

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $2.16
Features
  • Distortion-Free Beyond-the-Rails Signaling
    • Negative Audio and Video Signal Capable
    • -5.5V to +5.5V Analog Signal Range Independent from VCCEN
    • On-Resistance 0.2Ω (typ)
    • +1.6V to +5.5V Single-Supply Range
    • Click-and-Pop Suppression
  • Smooth Switch Transition
    • Break-Before-Make Operation
  • Low Supply Current 30µA (typ) at 1.6V
    • Can Be Powered by a GPIO
    • High-Impedance Mode When VCCEN Not Applied
  • ESD Protection on COM_
    • ±15kV Human Body Model
    • ±10kV IEC 61000-4-2 Air Gap
    • ±8kV IEC 61000-4-2 Contact
  • ESD Protection on NC_ and NO_
    • ±15kV Human Body Model
  • Small Board Space
    • 9-Bump WLP (1.2mm x 1.2mm)
  • -40°C to +85°C Operating Temperature Range
Additional Details
show more Icon

The MAX14589E/MAX14594E high-density, double-pole/double-throw (DPDT) analog switches feature Beyond-the-Rails signal capability that allows signals from -5.5V to +5.5V to pass without distortion even when the power supply is below the signal range. The low RON resistance (0.2Ω) makes the devices ideal for low-distortion switching, such as audio.

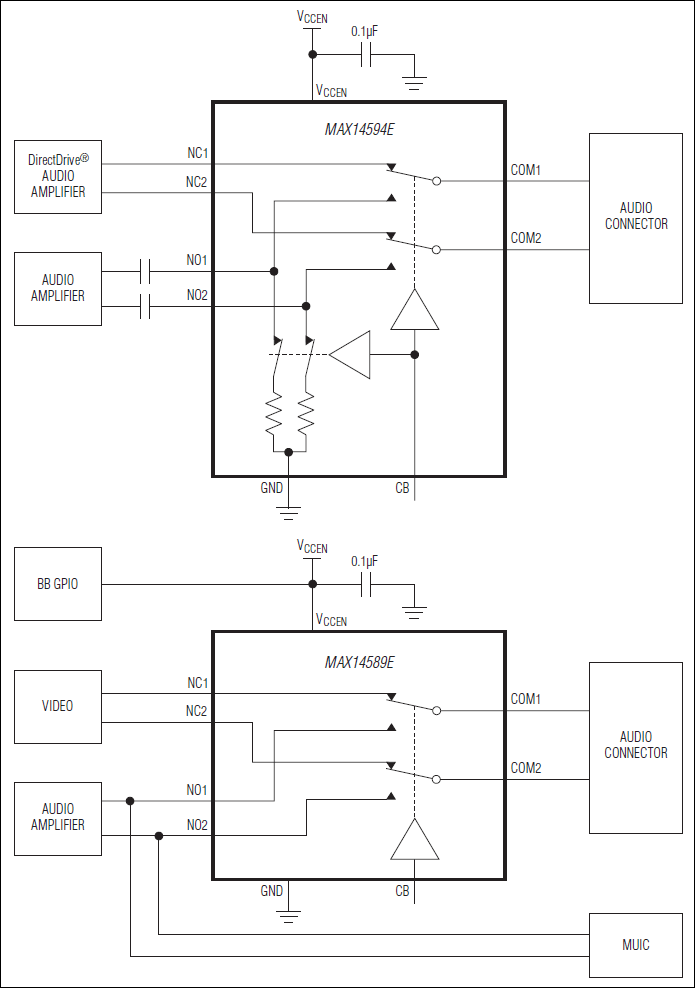

The MAX14594E has internal shunt switches that discharge the audio amplifier AC-coupling capacitance at the normally open (NO1 and NO2) terminals. This feature reduces click-and-pop sounds that occur when switching audio signals between precharged points.

The switches are fully specified to operate from a single +1.6V to +5.5V power supply. Because of the low supply current requirement, VCCEN can be provided by a GPIO. When the power is not applied, switches go to a high-impedance mode and all analog signal ports can withstand signals within the analog signal range. The devices control the switches with a control bit, CB.

The MAX14589E/MAX14594E are available in a 1.2mm × 1.2mm, 0.4mm pitch, 9-bump wafer-level package (WLP) and operate over the -40°C to +85°C extended temperature range.

Applications

  • Portable Audio/Video Equipment
  • Portable Navigation Devices
  • Smartphones
  • Tablets
Part Models 2
1ku List Price Starting From $2.16

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX14594EEWL+
  • HTML
  • HTML
MAX14594EEWL+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 19, 2016

- 1594_AMENDED

ASSEMBLY

MAX14594EEWL+T

PRODUCTION

Dec 8, 2015

- 1594_PRE-PCN

WAFER FAB

MAX14594EEWL+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 19, 2016

- 1594_AMENDED

arrow down

ASSEMBLY

MAX14594EEWL+T

PRODUCTION

Dec 8, 2015

- 1594_PRE-PCN

arrow down

WAFER FAB

MAX14594EEWL+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

MAX14689EVKIT

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

zoom

MAX14689EVKIT

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

Features and Benefits

  • Proven PCB Layout
    • Decrease Evaluation Time
  • Fully Assembled and Tested
  • SMA and 3.5mm Audio Jack Connectors
    • Directly Evaluate AC Characteristics through SMA Connectors
    • Quickly Evaluate Audio Performance with 3.5mm Audio Jack Connectors
  • USB 5V Power with On-Board Adjustable LDO

Product Detail

The MAX14589E/MAX14594E/MAX14689 evaluation kits (EV kits) are fully assembled and tested circuit boards that demonstrate the functionality of the MAX14589E, MAX14594E, and MAX14689 double-pole double-throw (DPDT) analog switches in a 9-bump wafer-level package (WLP). The features of the EV kits enable evaluation of the analog switches through audio jack inputs and outputs, as well as SMA connectors for AC characteristic evaluation. Input power to the EV kits is provided by a Micro-USB, type-B connector or an external power supply.

Applications

  • Portable Audio/Video Equipment
  • Portable Navigation Devices
  • Smartphones
  • Tablets

MAX14589EEVKIT

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

zoom

MAX14589EEVKIT

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

Features and Benefits

  • Proven PCB Layout
    • Decrease Evaluation Time
  • Fully Assembled and Tested
  • SMA and 3.5mm Audio Jack Connectors
    • Directly Evaluate AC Characteristics through SMA Connectors
    • Quickly Evaluate Audio Performance with 3.5mm Audio Jack Connectors
  • USB 5V Power with On-Board Adjustable LDO

Product Detail

The MAX14589E/MAX14594E/MAX14689 evaluation kits (EV kits) are fully assembled and tested circuit boards that demonstrate the functionality of the MAX14589E, MAX14594E, and MAX14689 double-pole double-throw (DPDT) analog switches in a 9-bump wafer-level package (WLP). The features of the EV kits enable evaluation of the analog switches through audio jack inputs and outputs, as well as SMA connectors for AC characteristic evaluation. Input power to the EV kits is provided by a Micro-USB, type-B connector or an external power supply.

Applications

  • Portable Audio/Video Equipment
  • Portable Navigation Devices
  • Smartphones
  • Tablets

MAX14594EEVKIT

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

zoom

MAX14594EEVKIT

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

Evaluation Kit for the MAX14589E, MAX14594E, and MAX14689

Features and Benefits

  • Proven PCB Layout
    • Decrease Evaluation Time
  • Fully Assembled and Tested
  • SMA and 3.5mm Audio Jack Connectors
    • Directly Evaluate AC Characteristics through SMA Connectors
    • Quickly Evaluate Audio Performance with 3.5mm Audio Jack Connectors
  • USB 5V Power with On-Board Adjustable LDO

Product Detail

The MAX14589E/MAX14594E/MAX14689 evaluation kits (EV kits) are fully assembled and tested circuit boards that demonstrate the functionality of the MAX14589E, MAX14594E, and MAX14689 double-pole double-throw (DPDT) analog switches in a 9-bump wafer-level package (WLP). The features of the EV kits enable evaluation of the analog switches through audio jack inputs and outputs, as well as SMA connectors for AC characteristic evaluation. Input power to the EV kits is provided by a Micro-USB, type-B connector or an external power supply.

Applications

  • Portable Audio/Video Equipment
  • Portable Navigation Devices
  • Smartphones
  • Tablets
