MAX14591

High-Speed, Open-Drain Capable Logic-Level Translator

Show More showmore-icon

Dual-Channel Bidirectional Logic-Level Translator Is Optimized for I²C and MDIO Buses

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 2
1ku List Price Starting From $1.28
Features
  • Meets Industry Standards
    • I²C Requirements for Standard, Fast, and High Speeds*
    • MDIO Open Drain Above 4MHz*
  • Allows Greater Design Flexibility
    • Down to 0.9V Operation on VL Side
    • Supports Above 8MHz Push-Pull Operation
  • Offers Low Power Consumption
    • 23µA (typ) VCC Supply Current
    • 0.5µA (typ) VL Supply Current
  • Provides High Level of Integration
    • Pullup Resistor Enabled with One Side Power Supply when TS-bar Is High
    • 12kΩ (max) Internal Pullup
    • Low Transmission Gate RON: 17Ω (max)
  • Saves Space
    • 8-Bump, 0.4mm pitch, 0.8mm x 1.6mm WLP Package
    • 8-Pin, 2mm x 2mm TDFN Package
Additional Details
show more Icon

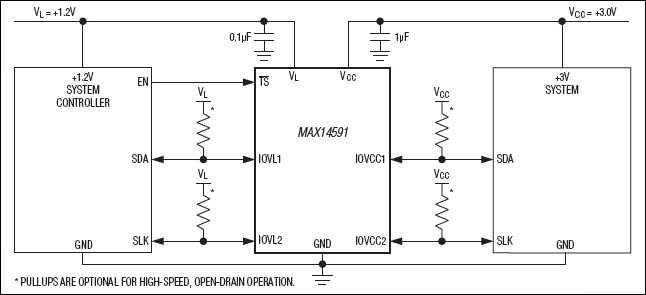

The MAX14591 is a dual-channel, bidirectional logic-level translator with the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. A logic signal present on the VL side of the device appears as the same logic signal on the VCC side of the device, and vice-versa.

The device is optimized for the I²C bus as well as the management data input/output (MDIO) bus where often high-speed, open-drain operation is required. When TS-bar is high, the device allows the pullup to be connected to the I/O port that has the power. This allows continuous I²C operation on the powered side without any disruption while the level translation function is off.

The part is specified over the extended -40°C to +85°C temperature range, and is available in 8-bump WLP and 8-pin TDFN packages.

Applications

  • Devices with I²C Communication
  • Devices with MDIO Communication
  • General Logic-Level Translation
Part Models 2
1ku List Price Starting From $1.28

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX14591ETA+
  • HTML
  • HTML
MAX14591ETA+T
  • HTML
  • HTML

Software & Part Ecosystem

Evaluation Kits 1

MAX14591EVKIT

Evaluation Kit for the MAX14591

zoom

MAX14591EVKIT

Evaluation Kit for the MAX14591

Evaluation Kit for the MAX14591

Features and Benefits

  • Proven PCB Layout
    • Decrease Evaluation Time
  • Fully Assembled and Tested
  • On-Board Adjustable Oscillators
    • Evaluate Without External Function Generator
  • Jumper-Selectable Open-Drain and Push-Pull Buffers Enable Simple Evaluation

Product Detail

The MAX14591 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the functionality of the MAX14591 high-speed, open-drain capable logic-level translator in both the 8-bump WLP and 8-pin TDFN packages. Only the TDFN package device is installed in this EV kit. The EV kit enables direct evaluation of the device by multiple jumper-selectable methods. The highly configurable PCB allows the user to evaluate each package separately or both at once. Input power to the EV kit is provided by a micro-USB, type-B connector or an external 5V power supply. On-board LDO regulators provide the appropriate voltage for each component, and potentiometers allow the user to adjust the power supply for either side of the level translator independently.

Applications

  • Devices with I2C Communication
  • Devices with MDIO Communication
  • General Logic-Level Translation
