- Single 3.3V Power Supply
- 67dB SNR at fIN = 5MHz
- Internal 2.048V Precision Bandgap Reference
- Differential Wideband Input T/H Amplifier
- Power-Down Modes
- 130mW (Reference Shutdown Mode)
- 10µW (Shutdown Mode)
- Space-Saving 48-Pin TQFP Package

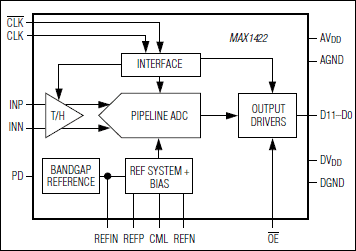

The MAX1422 3.3V, 12-bit analog-to-digital converter (ADC) features a fully differential input, pipelined, 12- stage ADC architecture with wideband track-and-hold (T/H) and digital error correction incorporating a fully-differential signal path. The MAX1422 is optimized for lowpower, high dynamic performance applications in imaging and digital communications. The converter operates from a single 3.3V supply, consuming only 137mW while delivering a 67dB (typ) signal-to-noise ratio (SNR) at a 5MHz input frequency and a 20Msps sampling frequency. The fully-differential input stage has a small signal -3dB bandwidth of 400MHz and may be operated with single-ended inputs.
An internal 2.048V precision bandgap reference sets the ADCs full-scale range. A flexible reference structure accommodates an internally or externally applied buffered or unbuffered reference for applications requiring increased accuracy or a different input voltage range.
In addition to low operating power, the MAX1422 features two power-down modes, a reference power-down, and a shutdown mode. In reference power-down, the internal bandgap reference is deactivated, resulting in a 2mA (typ) supply current reduction. For idle periods, a full shutdown mode is available to maximize power savings.
The MAX1422 provides parallel, offset binary, CMOS-compatible three-state outputs.
The MAX1422 is available in a 7mm x 7mm x 1.4mm, 48-pin TQFP package and is specified over the commercial (0°C to +70°C) and extended industrial (-40°C to +85°C) temperature ranges.
Pin-compatible higher-speed versions of the MAX1422 are also available. Please refer to the MAX1421 data sheet for 40Msps and the MAX1420 data sheet for 60Msps.
Applications
- CCD Pixel Processing
- Data Acquisition
- IF and Baseband Digitization
- Medical Ultrasound Imaging
- Radar
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX1422
Documentation
Filters
1 Applied
Data Sheet
3
Technical Articles
3
HTML
HTML
HTML
Design Note
1
HTML
Documentation
Data Sheet 1
Design Note 1
Technical Articles 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
MAX1422ECM+D | 48-LQFP-7X7X1.4 |
|
|
MAX1422ECM+TD | 48-LQFP-7X7X1.4 |
|
- MAX1422ECM+D
- Pin/Package Drawing
- 48-LQFP-7X7X1.4
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX1422ECM+TD
- Pin/Package Drawing
- 48-LQFP-7X7X1.4
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Dec 3, 2021
- 2218E
ASSEMBLY
MAX1422ECM+D
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Dec 3, 2021
- 2218E
ASSEMBLY
Evaluation Kits 1
MAX1420EVKIT
Evaluation Kit for the MAX1420, MAX1421, and MAX1422
Product Detail
The MAX1420 evaluation kit (EV kit) is a fully assembled and tested circuit board that contains all the components necessary to evaluate the performance of the MAX1420, MAX1421, or MAX1422, 12-bit, +3.3V, analog-to-digital converters (ADCs). The MAX1420/MAX1421/MAX1422 ADCs accept 2Vp-p differential analog inputs. The offset binary digital output produced by the ADC can be easily sampled with a user-provided high-speed logic analyzer or data-acquisition system. The EV kit comes with the 60Msps part (MAX1420) installed. Order a free sample of the MAX1421CCM or MAX1422CCM to evaluate the 40Msps or 20Msps parts.
Applications
- CCD Pixel Processing
- IF and Baseband Digitization
- IR Focal Plane Arrays
- Medical Ultrasound Imaging
- Radar
