MAX1202

5V, 8-Channel, Serial, 12-Bit ADCs with 3V Digital Interface

Show More showmore-icon

Ideal for 12-Bit +5V or +/-5V Analog, +3V Digital Systems

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $13.58
Features
  • 8-Channel Single-Ended or 4-Channel Differential Inputs
  • Operates from Single +5V or Dual ±5V Supplies
  • User-Adjustable Output Logic Levels (2.7V to 5.25V)
  • Low Power:
    • 1.5mA (Operating Mode)
    • 2µA (Power-Down Mode)
  • Internal Track/Hold, 133kHz Sampling Rate
  • Internal 4.096V Reference (MAX1202)
  • SPI/MICROWIRE/TMS320-Compatible 4-Wire Serial Interface
  • Software-Configurable Unipolar/Bipolar Inputs
  • 20-Pin PDIP/SSOP
Additional Details
show more Icon

The MAX1202/MAX1203 are 12-bit data-acquisition systems specifically designed for use in applications with mixed +5V (analog) and +3V (digital) supply voltages. They operate with a single +5V analog supply or dual ±5V analog supplies, and combine an 8-channel multiplexer, high-bandwidth track/hold, and serial interface with high conversion speed and low power consumption.

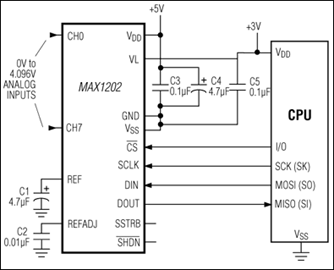

A 4-wire serial interface connects directly to SPI/MICROWIRE® devices without external logic, and a serial strobe output allows direct connection to TMS320-family digital signal processors. The MAX1202/MAX1203 use either the internal clock or an external serial-interface clock to perform successive approximation analog-to-digital conversions. The serial interface operates at up to 2MHz.

The MAX1202 features an internal 4.096V reference, while the MAX1203 requires an external reference. Both parts have a reference-buffer amplifier that simplifies gain trim. They also have a VL pin that is the power supply for the digital outputs. Output logic levels (3V, 3.3V, or 5V) are determined by the value of the voltage applied to this pin.

These devices provide a hard-wired active-low SHDN pin and two software-selectable power-down modes. Accessing the serial interface automatically powers up the devices. A quick turn-on time enables the MAX1202/MAX1203 to be shut down between conversions, allowing the user to optimize supply currents. By customizing power-down between conversions, supply current can drop below 10µA at reduced sampling rates.

The MAX1202/MAX1203 are available in 20-pin SSOP and PDIP packages, and are specified for the commercial and extended temperature ranges.

Applications

  • 5V/3V Mixed-Supply Systems
  • Battery-Powered Applications
  • Data Acquisition
  • High-Accuracy Process Control
  • Medical Instruments
Part Models 10
1ku List Price Starting From $13.58

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX1202ACAP+
  • HTML
  • HTML
MAX1202ACAP+T
  • HTML
  • HTML
MAX1202AEAP+
  • HTML
  • HTML
MAX1202AEAP+T
  • HTML
  • HTML
MAX1202AEPP+
  • HTML
  • HTML
MAX1202BCAP+
  • HTML
  • HTML
MAX1202BCAP+T
  • HTML
  • HTML
MAX1202BCPP+
  • HTML
  • HTML
MAX1202BEAP+
  • HTML
  • HTML
MAX1202BEAP+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 28, 2023

- 2361H

WAFER FAB

MAX1202ACAP+

PRODUCTION

MAX1202ACAP+T

PRODUCTION

MAX1202AEAP+

PRODUCTION

MAX1202AEAP+T

PRODUCTION

MAX1202AEPP+

PRODUCTION

MAX1202BCAP+

PRODUCTION

MAX1202BCAP+T

PRODUCTION

MAX1202BEAP+

PRODUCTION

MAX1202BEAP+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 28, 2023

- 2361H

arrow down

WAFER FAB

MAX1202ACAP+

PRODUCTION

MAX1202ACAP+T

PRODUCTION

MAX1202AEAP+

PRODUCTION

MAX1202AEAP+T

PRODUCTION

MAX1202AEPP+

PRODUCTION

MAX1202BCAP+

PRODUCTION

MAX1202BCAP+T

PRODUCTION

MAX1202BEAP+

PRODUCTION

MAX1202BEAP+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

MAX1203EVKIT

Evaluation System for MAX1202 and MAX1203

zoom

MAX1203EVKIT

Evaluation System for MAX1202 and MAX1203

Evaluation System for MAX1202 and MAX1203

Features and Benefits

  • Proven PC Board Layout
  • Complete Evaluation System
  • Convenient On-Board Test Points
  • Data-Logging Software
  • 3V/5V Logic Interface
  • Fully Assembled and Tested

Product Detail

The MAX1202 evaluation system (EV system) is a complete, 8-channel data-acquisition system consisting of a MAX1202 evaluation kit (EV kit) and a Maxim 3V 68L11D microcontroller (µC) module.

The MAX1202 is a low-power, +5V, 8-channel, 12-bit analog-to-digital converter (ADC) that connects directly to 3V and 5V microprocessors (µPs). Windows® 3.1/Windows 95 software provides a handy user interface to exercise the MAX1202's features.

Order the EV system for comprehensive evaluation of the MAX1202 using a personal computer. Order the EV kit if you have already purchased the 68L11D µC module with a previous Maxim EV system, or for custom use in other µC-based systems.

The MAX1202 EV kit and EV system can also be used to evaluate the MAX1203. Simply order a free sample of the MAX1203BCPP along with the MAX1202 EV kit. For 3V-only applications, refer to the MAX147 data sheet.

Applications

  • 5V/3V Mixed-Supply Systems
  • Battery-Powered Applications
  • Data Acquisition
  • High-Accuracy Process Control

MAX1202EVKIT

Evaluation System for MAX1202 and MAX1203

zoom

MAX1202EVKIT

Evaluation System for MAX1202 and MAX1203

Evaluation System for MAX1202 and MAX1203

Features and Benefits

  • Proven PC Board Layout
  • Complete Evaluation System
  • Convenient On-Board Test Points
  • Data-Logging Software
  • 3V/5V Logic Interface
  • Fully Assembled and Tested

Product Detail

The MAX1202 evaluation system (EV system) is a complete, 8-channel data-acquisition system consisting of a MAX1202 evaluation kit (EV kit) and a Maxim 3V 68L11D microcontroller (µC) module.

The MAX1202 is a low-power, +5V, 8-channel, 12-bit analog-to-digital converter (ADC) that connects directly to 3V and 5V microprocessors (µPs). Windows® 3.1/Windows 95 software provides a handy user interface to exercise the MAX1202's features.

Order the EV system for comprehensive evaluation of the MAX1202 using a personal computer. Order the EV kit if you have already purchased the 68L11D µC module with a previous Maxim EV system, or for custom use in other µC-based systems.

The MAX1202 EV kit and EV system can also be used to evaluate the MAX1203. Simply order a free sample of the MAX1203BCPP along with the MAX1202 EV kit. For 3V-only applications, refer to the MAX147 data sheet.

Applications

  • 5V/3V Mixed-Supply Systems
  • Battery-Powered Applications
  • Data Acquisition
  • High-Accuracy Process Control
