MAX1182

PRODUCTION

Dual 10-Bit, 65Msps, +3V, Low-Power ADC with Internal Reference and Parallel Outputs

Data Sheet (Rev. 1) Product Selection Table

Part Models: 1
1ku List Price: Starting From $16.26

Viewing:

Overview

Single 3V Operation
Excellent Dynamic Performance:
- 59dB SNR at f_IN = 20MHz
- 77dB SFDR at f_IN = 20MHz
Low Power:
- 65mA (Normal Operation)
- 2.8mA (Sleep Mode)
- 1µA (Shutdown Mode)
0.02dB Gain and 0.25° Phase Matching (typ)
Wide ±1V_P-P Differential Analog Input Voltage Range
400MHz -3dB Input Bandwidth
On-Chip 2.048V Precision Bandgap Reference
User-Selectable Output Format—Two's Complement or Offset Binary
48-Pin TQFP Package with Exposed Pad for Improved Thermal Dissipation
Evaluation Kit Available

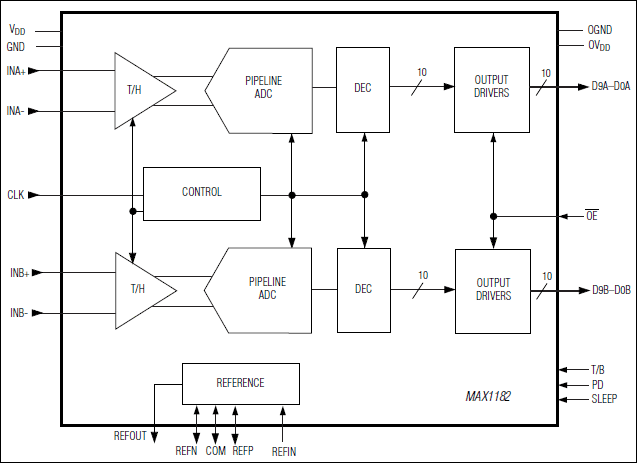

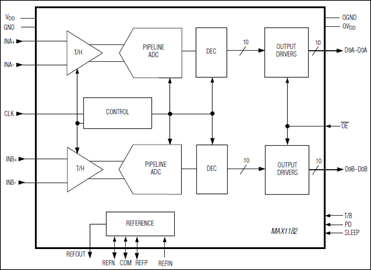

The MAX1182 is a 3V, dual 10-bit analog-to-digital converter (ADC) featuring fully-differential wideband track-and-hold (T/H) inputs, driving two pipelined, 9-stage ADCs. The MAX1182 is optimized for low-power, high-dynamic performance applications in imaging, instrumentation and digital communication applications. This ADC operates from a single 2.7V to 3.6V supply, consuming only 195mW while delivering a typical signal-to-noise ratio (SNR) of 59dB at an input frequency of 20MHz and a sampling rate of 65Msps. The T/H driven input stages incorporate 400MHz (-3dB) input amplifiers. The converters may also be operated with single-ended inputs. In addition to low operating power, the MAX1182 features a 2.8mA sleep mode as well as a 1µA power-down mode to conserve power during idle periods.

An internal 2.048V precision bandgap reference sets the full-scale range of the ADC. A flexible reference structure allows the use of the internal or an externally derived reference, if desired for applications requiring increased accuracy or a different input voltage range.

The MAX1182 features parallel, CMOS-compatible three-state outputs. The digital output format is set to two's complement or straight offset binary through a single control pin. The device provides for a separate output power supply of 1.7V to 3.6V for flexible interfacing. The MAX1182 is available in a 7mm x 7mm, 48-pin TQFP package, and is specified for the extended industrial (-40°C to +85°C) temperature range.

Pin-compatible higher and lower speed versions of the MAX1182 are also available. Please refer to the MAX1180 data sheet for 105Msps, the MAX1181 data sheet for 80Msps, the MAX1183 data sheet for 40Msps, and the MAX1184 data sheet for 20Msps. In addition to these speed grades, this family includes a 20Msps multiplexed output version (MAX1185), for which digital data is presented time-interleaved on a single, parallel 10-bit output port.

Applications

High-Resolution Imaging
I/Q Channel Digitization
Instrumentation
Multichannel IF Undersampling
Video Application
