MAX1003

Low-Power, 90Msps, Dual 6-Bit ADC

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 2
1ku List Price Starting From $6.34
Features
  • Two Matched 6-Bit ADCs
  • High Sampling Rate: 90Msps per ADC
  • Low Power Dissipation: 350mW
  • Excellent Dynamic Performance:
    • 5.85 ENOB with 20MHz Analog Input
    • 5.7 ENOB with 50MHz Analog Input
  • ±1/4LSB INL and DNL (typ)
  • Internal Bandgap Voltage Reference
  • Internal Oscillator with Overdrive Capability
  • 55MHz (-0.5dB) Bandwidth Input Amplifiers with True Differential Inputs
  • User-Selectable Input Full-Scale Range (125mVp-p, 250mVp-p, or 500mVp-p)
  • 1/4LSB Channel-to-Channel Offset Matching (typ)
  • 0.1dB Gain and 0.5° Phase Matching (typ)
  • Single-Ended or Differential Input Drive
  • Flexible, 3.3V, CMOS-Compatible Digital Outputs
Additional Details
show more Icon

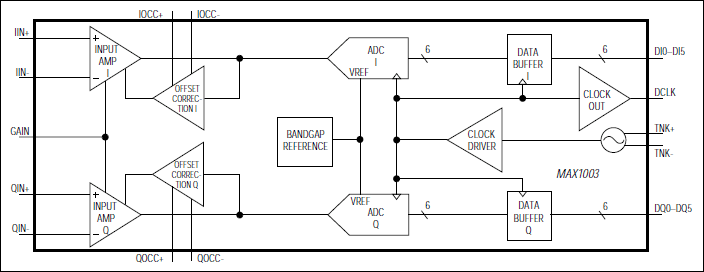

The MAX1003 is a dual, 6-bit analog-to-digital converter (ADC) that combines high-speed, low-power operation with a user-selectable input range, an internal reference, and a clock oscillator. The dual parallel ADCs are designed to convert in-phase (I) and quadrature (Q) analog signals into two 6-bit, offset-binary-coded digital outputs at sampling rates up to 90Msps. The ability to directly interface with baseband I and Q signals makes the MAX1003 ideal for use in direct-broadcast satellite, VSAT, and QAM16 demodulation applications.

The MAX1003 input amplifiers feature true differential inputs, a -0.5dB analog bandwidth of 55MHz, and user-programmable input full-scale ranges of 125mVp-p, 250mVp-p, or 500mVp-p. With an AC-coupled input signal, matching performance between input channels is typically better than 0.1dB gain, 1/4LSB offset, and 0.5° phase. Dynamic performance is 5.85 effective number of bits (ENOB) with a 20MHz analog input signal, or 5.7 ENOB with a 50MHz signal.

The MAX1003 operates with +5V analog and +3.3V digital supplies for easy interfacing to +3.3V-logic-compatible digital signal processors and microprocessors. It comes in a 36-pin SSOP package.

Applications

  • Cable Television Set-Top Boxes
  • Direct-Broadcast Satellite (DBS) Receiver
  • VSAT Receivers
  • Wide Local Area Networks (WLANs)
Part Models 2
1ku List Price Starting From $6.34

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX1003CAX+
  • HTML
  • HTML
MAX1003CAX+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 1, 2016

- 1618

ASSEMBLY

MAX1003CAX+

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 1, 2016

- 1618

arrow down

ASSEMBLY

MAX1003CAX+

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

MAX1002EVKIT

Evaluation Kit for the MAX1002 and MAX1003

zoom

MAX1002EVKIT

Evaluation Kit for the MAX1002 and MAX1003

Evaluation Kit for the MAX1002 and MAX1003

Features and Benefits

  • 5.85 Effective Number of Bits at 20MHz Analog Input Frequency
  • Separate Analog and Digital Power and Ground Connections with Optimized PC Board Layout
  • Matched Single-Ended or Differential Analog Inputs for Both I and Q Channels
  • Square-Pin Header for Easy Connection of Logic Analyzer to Digital Outputs
  • User-Selectable ADC Full-Scale Gain Ranges
  • Fully Assembled and Tested

Product Detail

The MAX1002/MAX1003 evaluation kits (EV kits) simplify evaluation of the 60Msps MAX1002 and 90Msps MAX1003 dual, 6-bit analog-to-digital converters (ADCs). The kits include the basic components necessary to operate the on-chip oscillator as a voltage-controlled oscillator (VCO). Each board can also be easily modified to accommodate an external clocking source.

Connectors for power supplies, analog inputs, and digital outputs simplify connections to the device. The PC board features an optimized layout to ensure the best possible dynamic performance. The EV kits include a MAX1002 or MAX1003.

MAX1003EVKIT

Evaluation Kit for the MAX1002 and MAX1003

zoom

MAX1003EVKIT

Evaluation Kit for the MAX1002 and MAX1003

Evaluation Kit for the MAX1002 and MAX1003

Features and Benefits

  • 5.85 Effective Number of Bits at 20MHz Analog Input Frequency
  • Separate Analog and Digital Power and Ground Connections with Optimized PC Board Layout
  • Matched Single-Ended or Differential Analog Inputs for Both I and Q Channels
  • Square-Pin Header for Easy Connection of Logic Analyzer to Digital Outputs
  • User-Selectable ADC Full-Scale Gain Ranges
  • Fully Assembled and Tested

Product Detail

The MAX1002/MAX1003 evaluation kits (EV kits) simplify evaluation of the 60Msps MAX1002 and 90Msps MAX1003 dual, 6-bit analog-to-digital converters (ADCs). The kits include the basic components necessary to operate the on-chip oscillator as a voltage-controlled oscillator (VCO). Each board can also be easily modified to accommodate an external clocking source.

Connectors for power supplies, analog inputs, and digital outputs simplify connections to the device. The PC board features an optimized layout to ensure the best possible dynamic performance. The EV kits include a MAX1002 or MAX1003.
