LTP8800-1A

RECOMMENDED FOR NEW DESIGNS

150A DC/DC μModule Regulator with PMBus Interface

Data Sheet (Rev. D) Product Selection Table

Part Models: 1
1ku List Price: Starting From $112.50

Viewing:

Part Details

High Efficiency at High Frequency

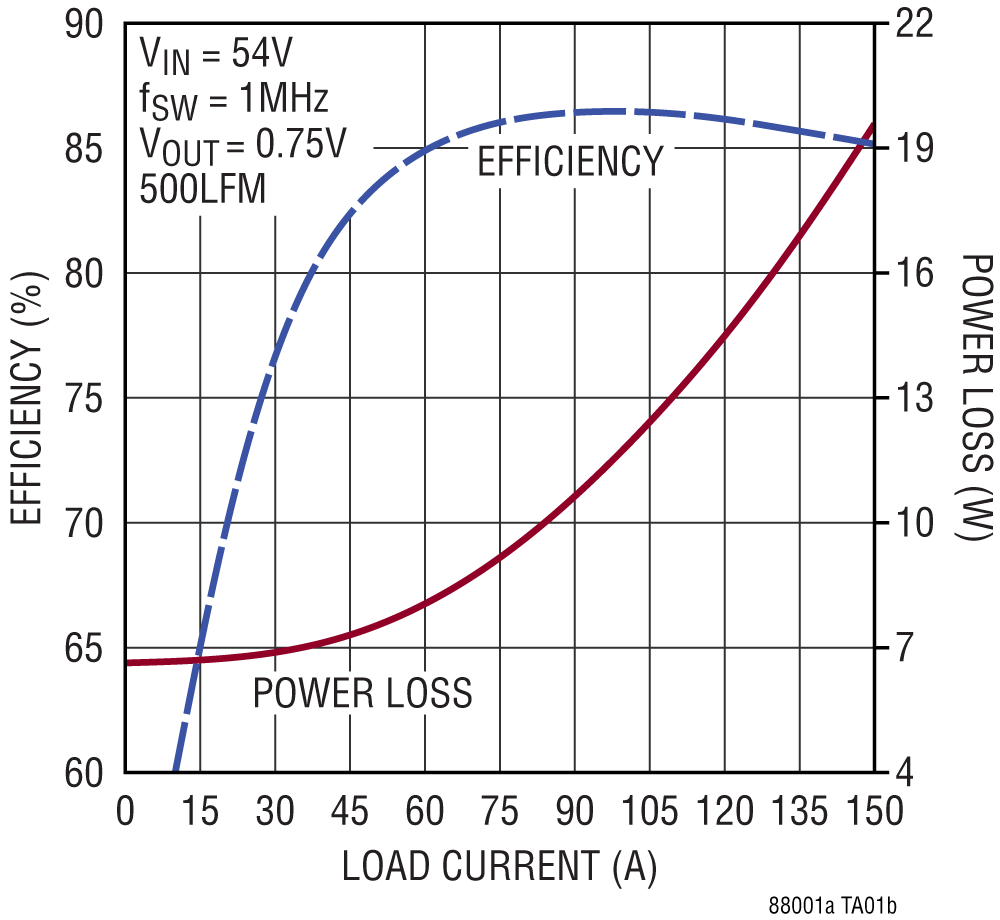

- Up to 87.0% Efficiency at 1 MHz, 54 V_IN to 0.8 V_OUT
PMBus-Compliant I²C Serial Interface
- Monitor Voltage, Current, Temperature and Faults
- Internal EEPROM Fault Log Record
- Digitally Programmable Control Loop
- Program Voltage, Current Limits, Soft-Start/Soft-Stop, Frequency, Synchronization and Phasing, Power-Good, Warnings and Faults

Wide Input Voltage Range: 45 V to 65 V
Output Voltage Range: 0.5 V to 1.1 V
Optimized for 45 V to 65 V_IN to 0.8 V_OUT
±0.5% Maximum DC Output Error with Differential Remote Voltage Sense
±3% Current Readback Accuracy
Parallel and Current Share Multiple μModule^® ICs

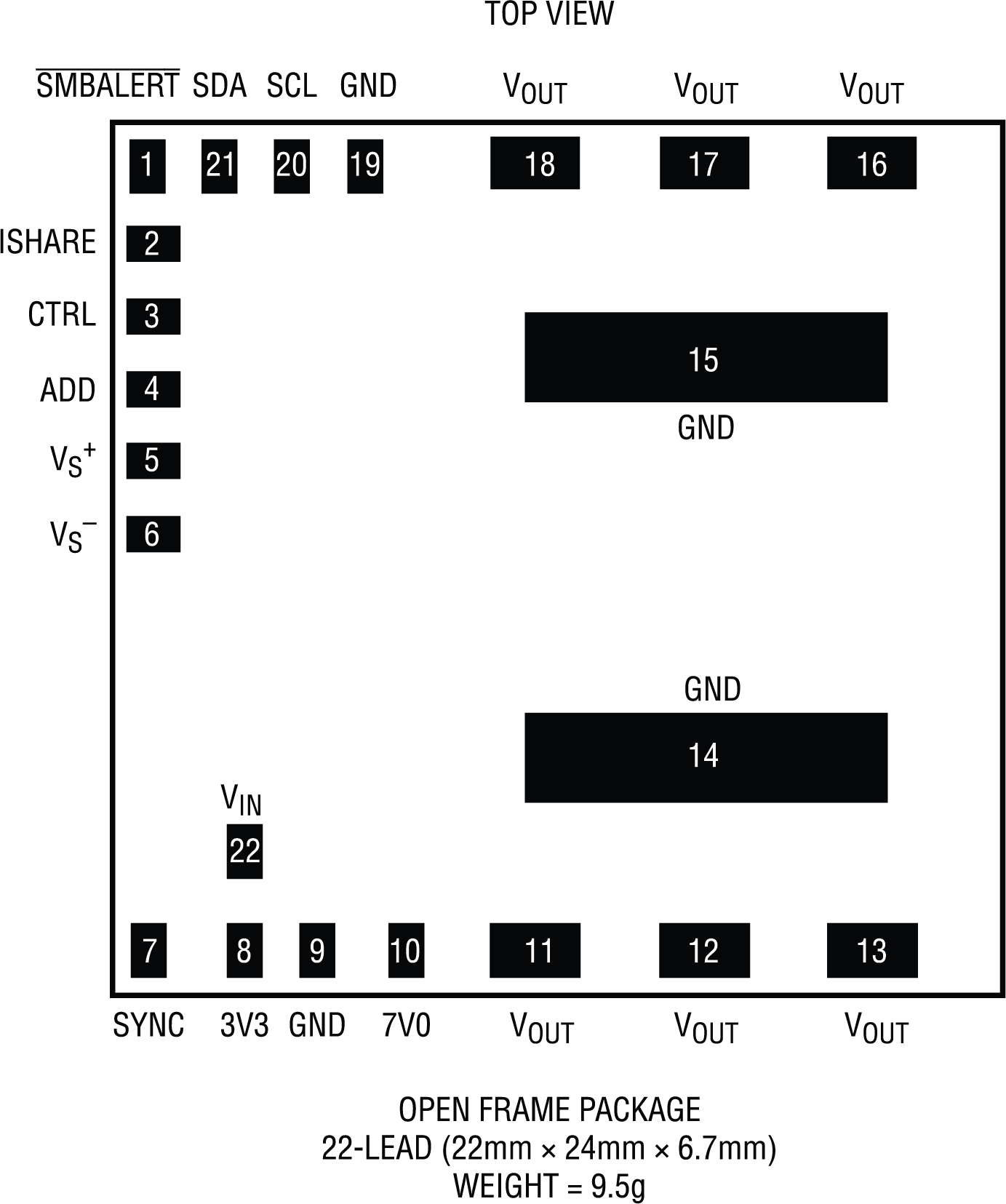

22 mm × 24 mm × 6.7 mm Surface Mount Package

Part Models: 1
1ku List Price: Starting From $112.50

Documentation

Data Sheet 1

LTP8800-1A: 150A DC/DC μModule Regulator with PMBus Interface Data Sheet (Rev.D) 12/20/2024

User Guide 1

DC3190A-A - Demo Manual (Rev.A) 08/07/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTP8800-1AIPV#PBF	PCA Package 22-Lead (22mm × 24mm × 6.70mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 1

LTP8800-1A - ?Module Regulators

Models for the following parts are available in LTspice:

LTP8800-1A
LTP8800-2
LTP8800-4A

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTP8800-1A | 54V Input, High Current DC/DC Power μModule with PMBus Interface

Buy Now View Details

Product Details

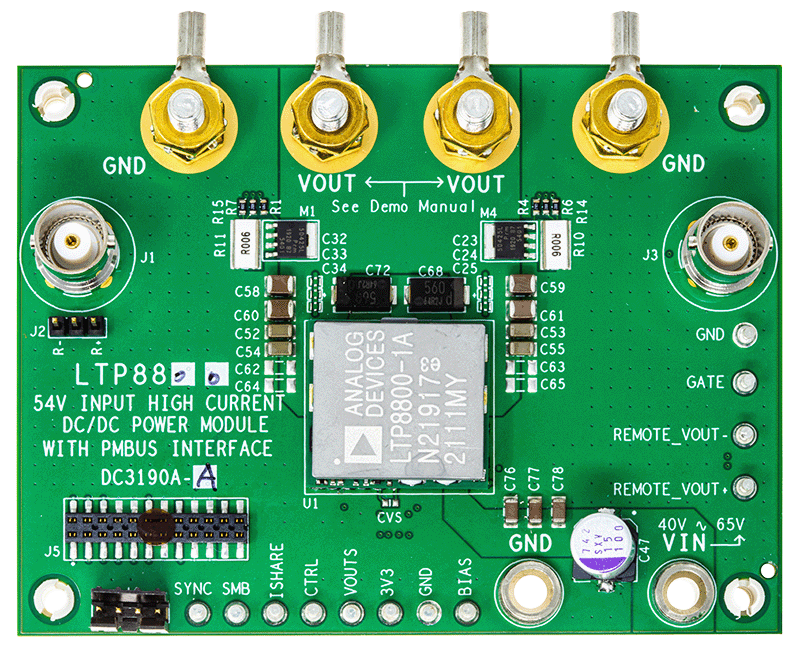

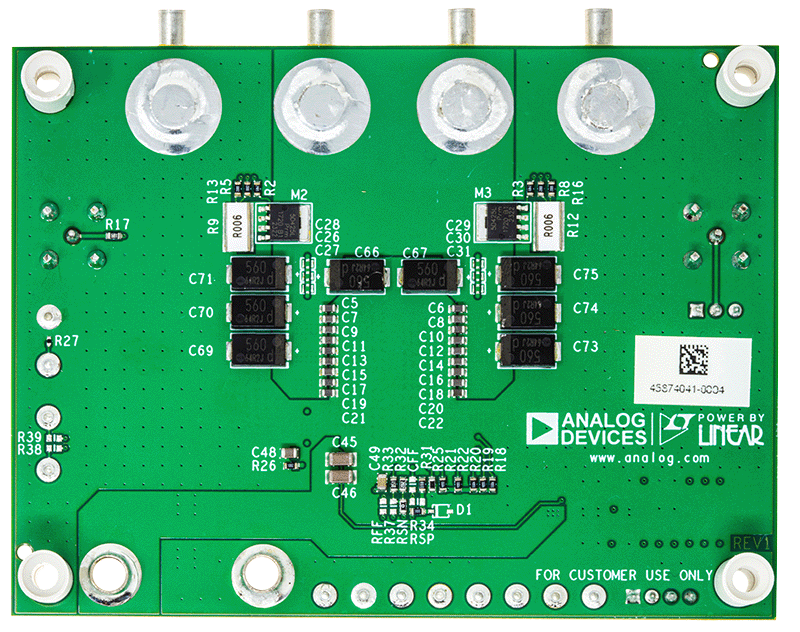

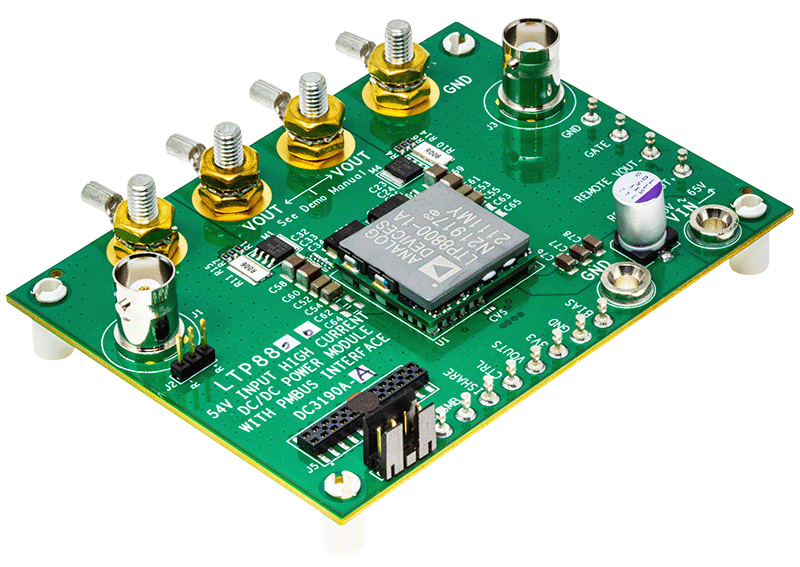

Demonstration circuit 3190A-A is a high current, high density, high efficiency open-frame μModule^® regulator with 45V to 65V input range. The demo board has a LTP8800-1A μModule regulator which provides microprocessor 0.75V voltage from 54V power distribution architecture with digital power system management. The maximum output current for the demo board is 150A. Please see LTP8800-1A data sheet for more detailed information.

DC3190A-A powers up to default settings and produces power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay^® onto your PC and use ADI’s I²C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

GUI Download

The software can be downloaded from: LTpowerPlay

For more details and instructions of LTpowerPlay, please refer to LTpowerPlay GUI for LTP8800-1A Quick Start Guide.
