Features and Benefits
- Complete Buck-Boost Switch Mode Power Supply
- Wide Input Voltage Range: 3V to 36V
- Wide Output Voltage Range: 1V to 36V
- 12V/0.8A Output at 6VIN
- 12V/1.5A Output at 12VIN
- 12V/1.5A Output at 36VIN
- Integrated Three-Terminal Capacitors and Spread Spectrum for Excellent EMI Performance
- Compliant with CISPR25 Class 5 Limits (Refer to Figure 25 in the data sheet)
- 300kHz to 2MHz Fixed Switching Frequency with External Frequency Synchronization
- Adjustable Output Current Limit
- Output Current Monitoring
- RoHS Compliant Package
- 6.25mm × 6.25mm × 2.22mm BGA Package
The LTM8083 is a 36VIN, Buck-Boost μModule® Regulator. Included in the package are the switching controller, power switches, inductor, and support components. All that is needed to complete the design is resistors for setting the output voltage and operating frequency, and input and output capacitors. Operating over an input voltage range from 3V to 36V, the LTM8083 can regulate output voltages between 1V and 36V with seamless low-noise transitions between operation regions, as well as controlling both input and output average currents through external sense resistors.
The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8083 is packaged in thermally enhanced, compact over-molded Ball Grid Array (BGA) packages suitable for automated assembly by standard surface mount equipment. The LTM8083 is RoHS compliant.
- Battery-Operated Devices
- Test and Measurement Equipment
- Industrial Control
- Solar Powered Voltage Regulator
- Solar Powered Battery Charging
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

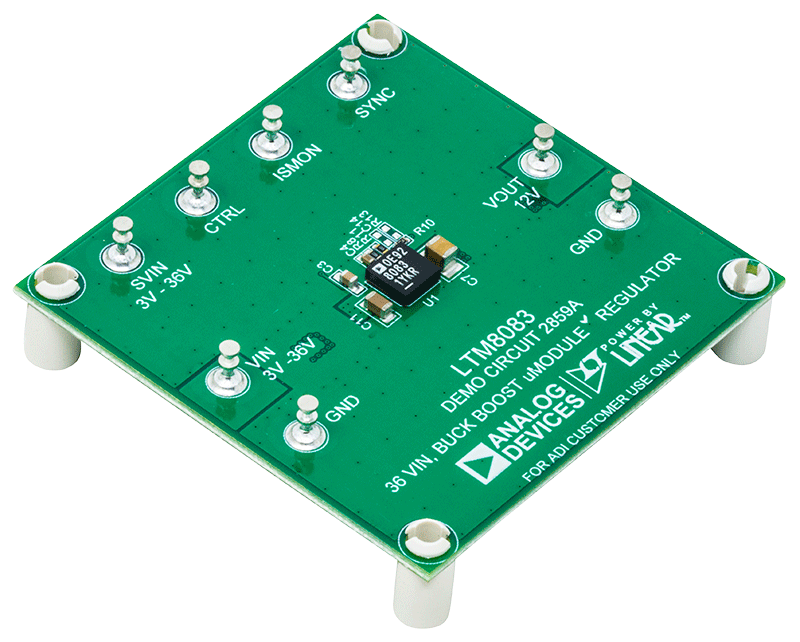

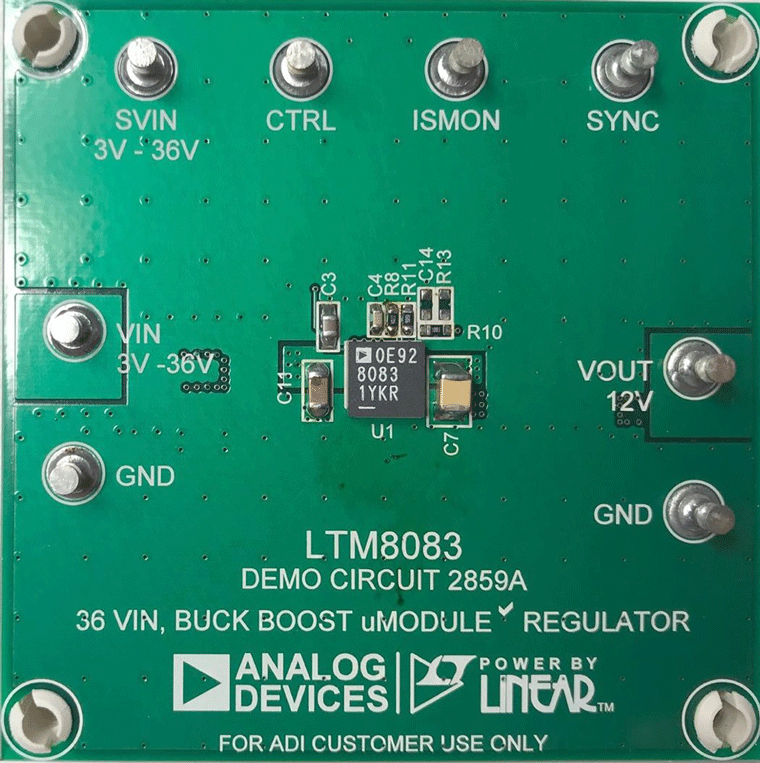

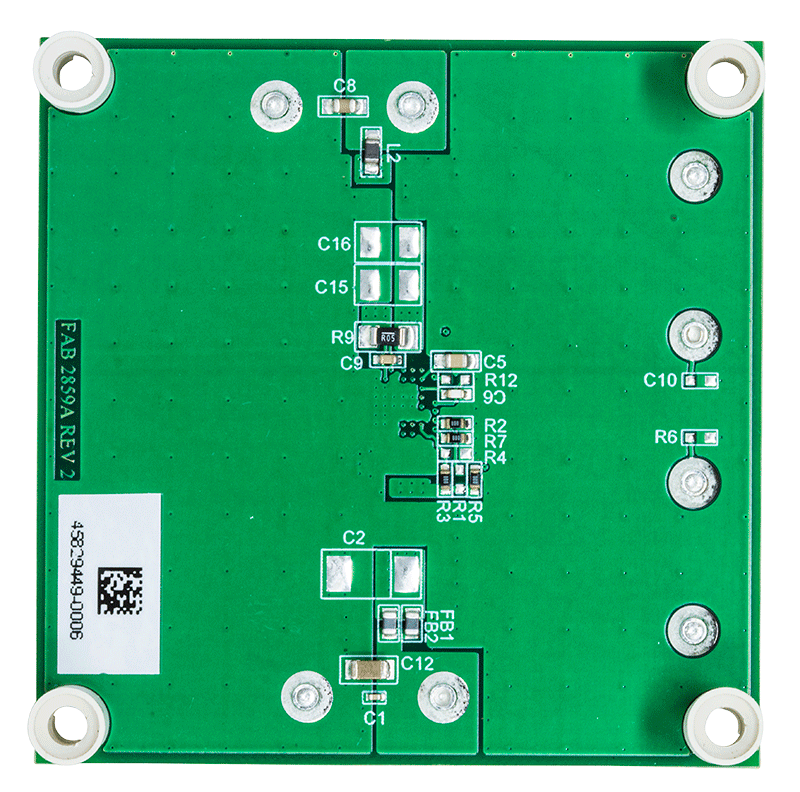

Demonstration circuit 2859A is a step-up/-down DC/DC converter with a 3V to 36V input voltage range and a 12V output capable of 1.5A from 12 to 36VIN, 0.8A at 6VIN, and 0.25A at 3VIN, featuring the LTM8083.
The LTM8083 data sheet gives complete description of the device, including operation and application information. The data sheet must be read in conjunction with this demo manual prior to working on or modifying DC2859A.
- SYNC Input for External Synchronization
- CTRL Input for Adjusting Current Limit Threshold
Documentation & Resources
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
