LTM8058

3.1VIN to 31VIN Isolated μModule (Power Module) DC/DC Converter with LDO Post Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 5
1ku List Price Starting From $13.48
Features
  • 2kV AC Isolated μModule Converter (Tested to 3kVDC)
  • UL60950 Recognized File E464570
  • Wide Input Voltage Range: 3.1V to 31V
  • VOUT1 Output:
    • Up to 440mA (VIN = 24V, VOUT1 = 2.5V)
    • 2.3V to 13V Output Range
  • VOUT2 Low Noise Linear Post Regulator:
    • Up to 300mA
    • 1.2V to 12V Output Range
  • Current Mode Control
  • Programmable Soft-Start
  • User Configurable Undervoltage Lockout
  • Low Profile (9mm × 11.25mm × 4.92mm) BGA Package
Additional Details
show more Icon

The LTM8058 is a 2kV AC isolated flyback μModule® (power module) DC/DC converter with LDO post regulator. Included in the package are the switching controller, power switches, transformer, LDO, and all support components. Operating over an input voltage range of 3.1V to 31V, the LTM8058 supports an output voltage range of 2.5V to 13V, set by a single resistor. There is also a linear post regulator whose output voltage is adjustable from 1.2V to 12V as set by a single resistor. Only output and input capacitors are needed to finish the design. Other components may be used to control the soft-start control and biasing.

The LTM8058 is packaged in a thermally enhanced, compact (9mm × 11.25mm × 4.92mm) overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8058 is available with SnPb or RoHS compliant terminal finish.

Applications

  • Industrial Sensors
  • Industrial Switches
  • Ground Loop Mitigation
Part Models 5
1ku List Price Starting From $13.48

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM8058EY#PBF
  • HTML
  • HTML
LTM8058IY
  • HTML
  • HTML
LTM8058IY#PBF
  • HTML
  • HTML
LTM8058MPY
  • HTML
  • HTML
LTM8058MPY#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM8058EY#PBF

PRODUCTION

LTM8058IY

PRODUCTION

LTM8058IY#PBF

PRODUCTION

LTM8058MPY

PRODUCTION

LTM8058MPY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8058EY#PBF

PRODUCTION

LTM8058IY

PRODUCTION

LTM8058IY#PBF

PRODUCTION

LTM8058MPY

PRODUCTION

LTM8058MPY#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM8058EY#PBF

PRODUCTION

LTM8058IY

PRODUCTION

LTM8058IY#PBF

PRODUCTION

LTM8058MPY

PRODUCTION

LTM8058MPY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8058EY#PBF

PRODUCTION

LTM8058IY

PRODUCTION

LTM8058IY#PBF

PRODUCTION

LTM8058MPY

PRODUCTION

LTM8058MPY#PBF

PRODUCTION

Software and Part Ecosystem

Software and Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

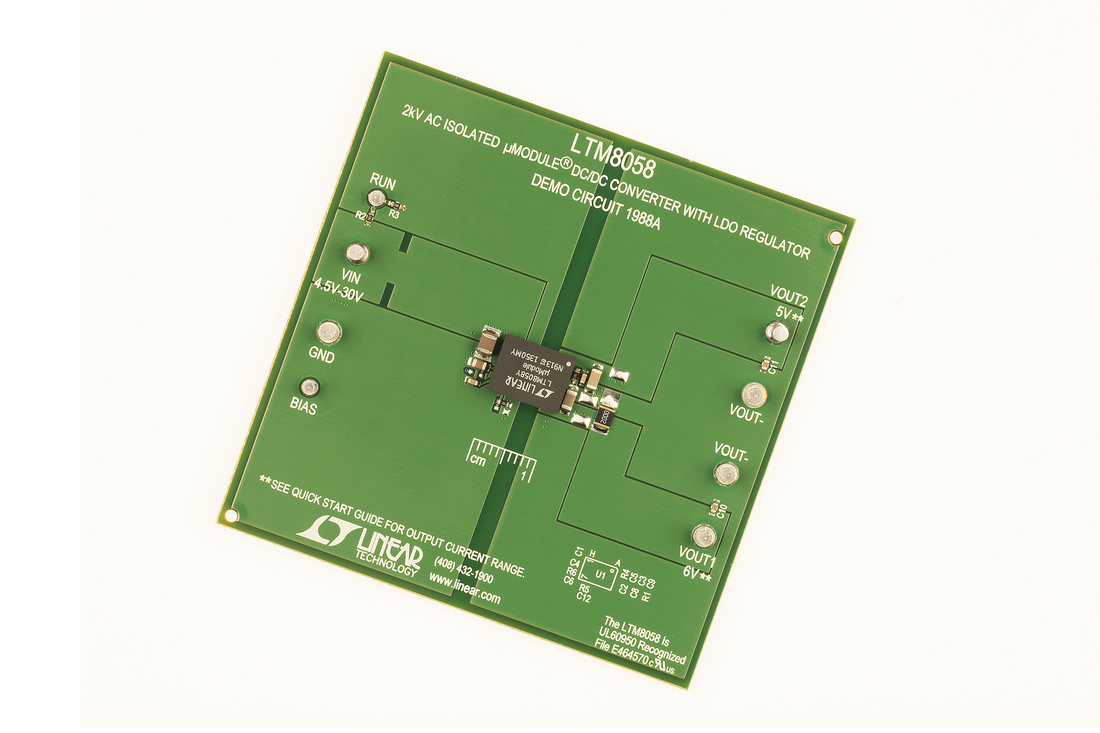

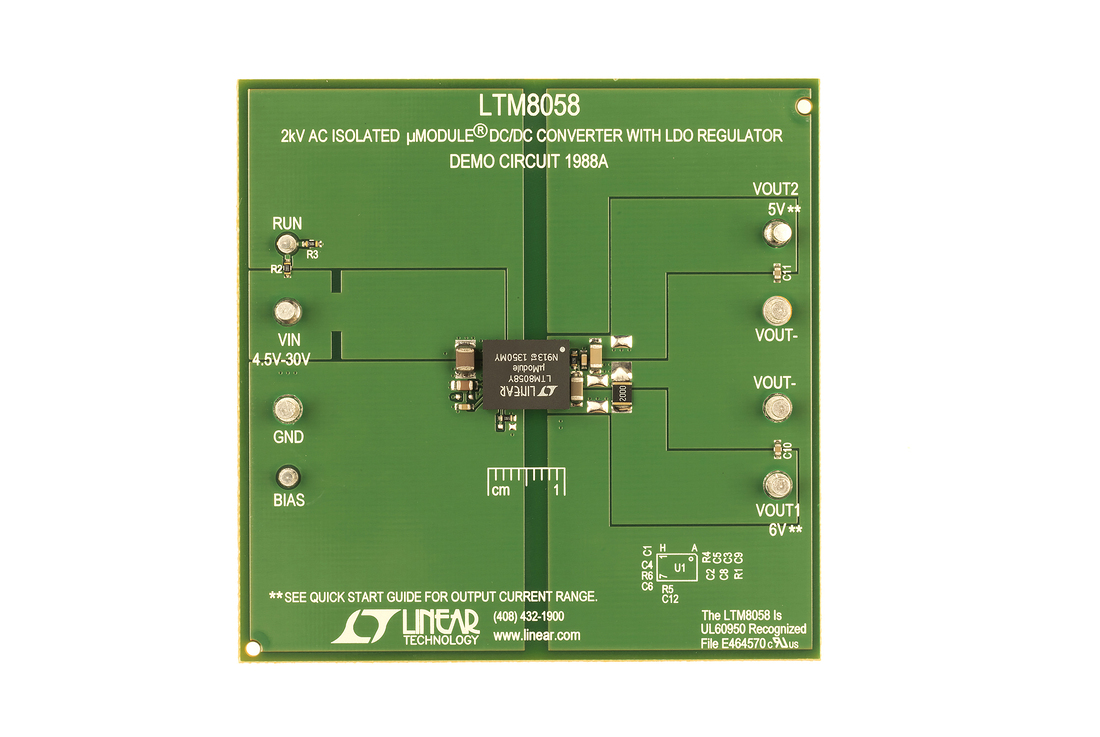

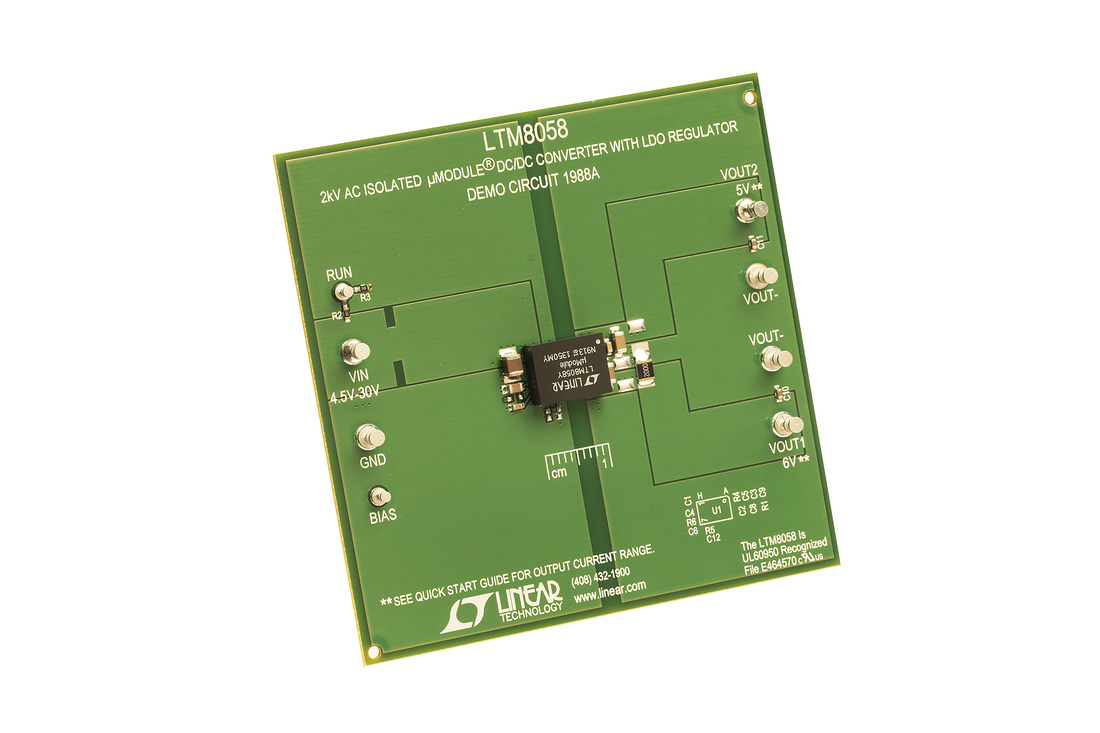

DC1988A

LTM8058 Demo Board | 2kV AC Isolated Flyback µModule Converter, 4.5V ≤ VIN ≤ 30V, VOUT1 = 6V @ Up to 320mA, VOUT2 = VOUT1 LDO Post Regulator

zoom

DC1988A

LTM8058 Demo Board | 2kV AC Isolated Flyback µModule Converter, 4.5V ≤ VIN ≤ 30V, VOUT1 = 6V @ Up to 320mA, VOUT2 = VOUT1 LDO Post Regulator

LTM8058 Demo Board | 2kV AC Isolated Flyback µModule Converter, 4.5V ≤ VIN ≤ 30V, VOUT1 = 6V @ Up to 320mA, VOUT2 = VOUT1 LDO Post Regulator

Product Detail

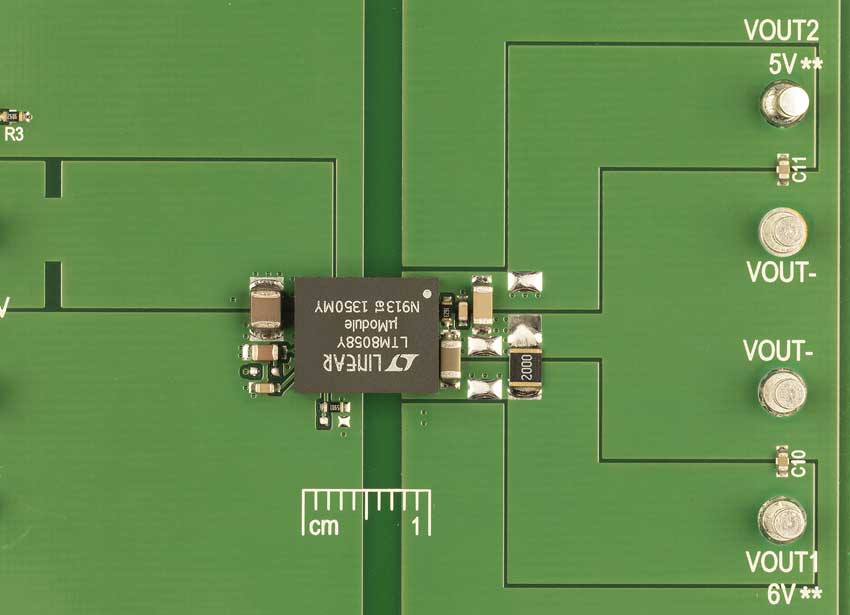

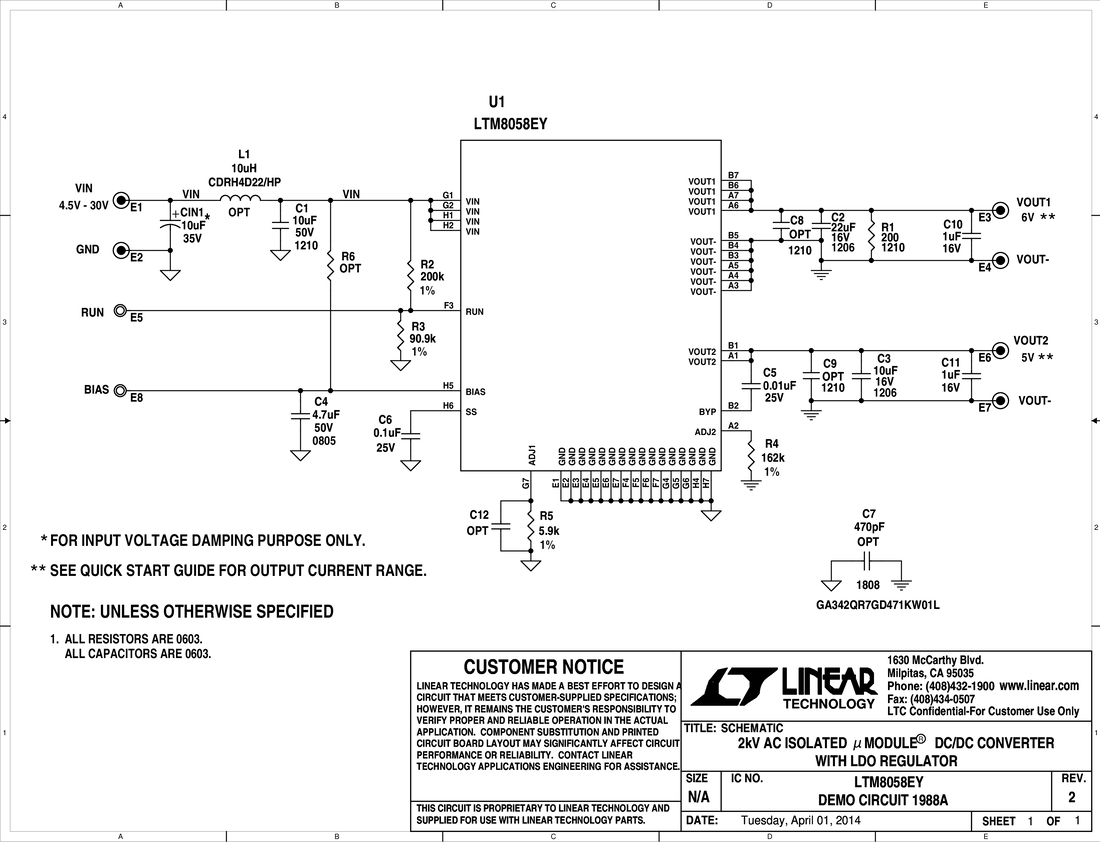

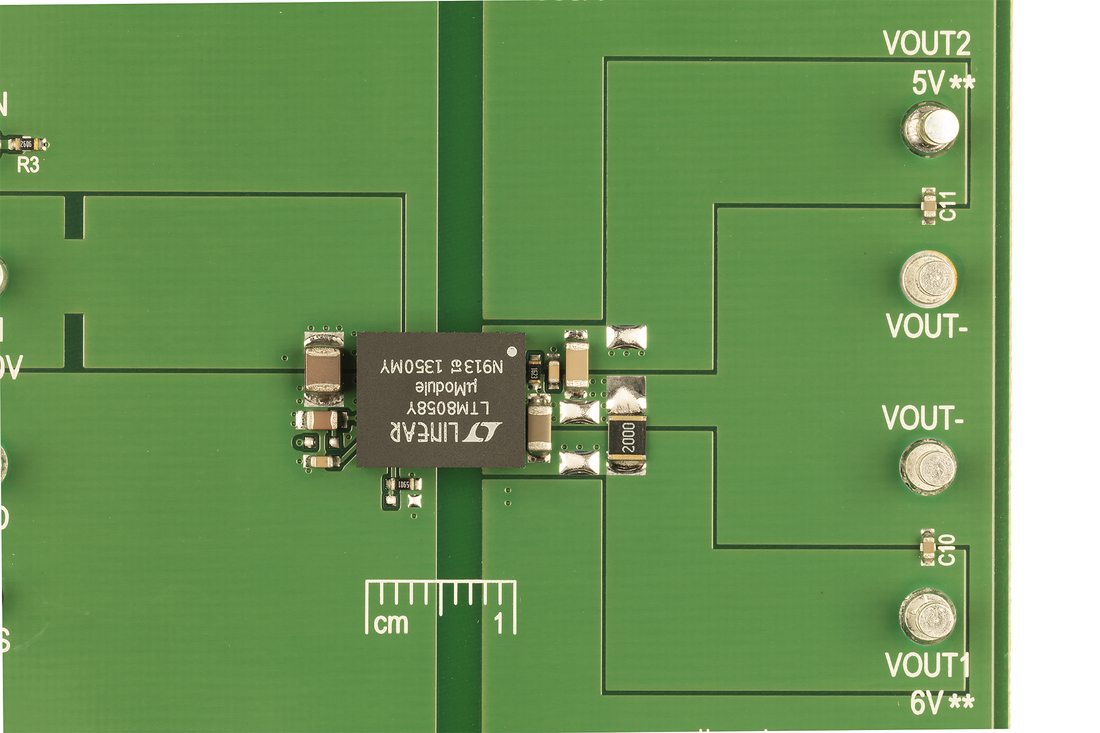

Demonstration circuit 1988A is a 2kV AC (3kVDC) isolated flyback μModule® DC/DC converter with LDO post regulator featuring the LTM8058. The demo circuit is designed for a 6V flyback output and a 5V post regulator output from a 4.5V to 30V input. The current capability of the 6V flyback output varies with input voltage from about 100mA at 4.5VIN to about 320mA at 30VIN. Figure 1 shows the typical maximum output current on VOUT1 when VOUT2 is not loaded. VOUT2 is the LDO post regulator from VOUT1. The current capability of VOUT2 is limited by either the current capability of VOUT1 minus VOUT1 loading or the 300mA current limit on the LDO post regulator itself. R1 provides the necessary minimum load current to keep the VOUT1 in regulation throughout the entire input voltage range. Please see the typical performance characteristic curves in the LTM8058 data sheet to determine the minimum load current for other input/output configurations.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
