Overview

Features and Benefits

  • Complete Buck-Boost Switch Mode Power Supply
  • Wide Input Voltage Range: 5V to 58V
  • 12V/1.7A Output from 6VIN
  • 12V/3.4A Output from 12VIN
  • 12V/5.4A Output from 24VIN

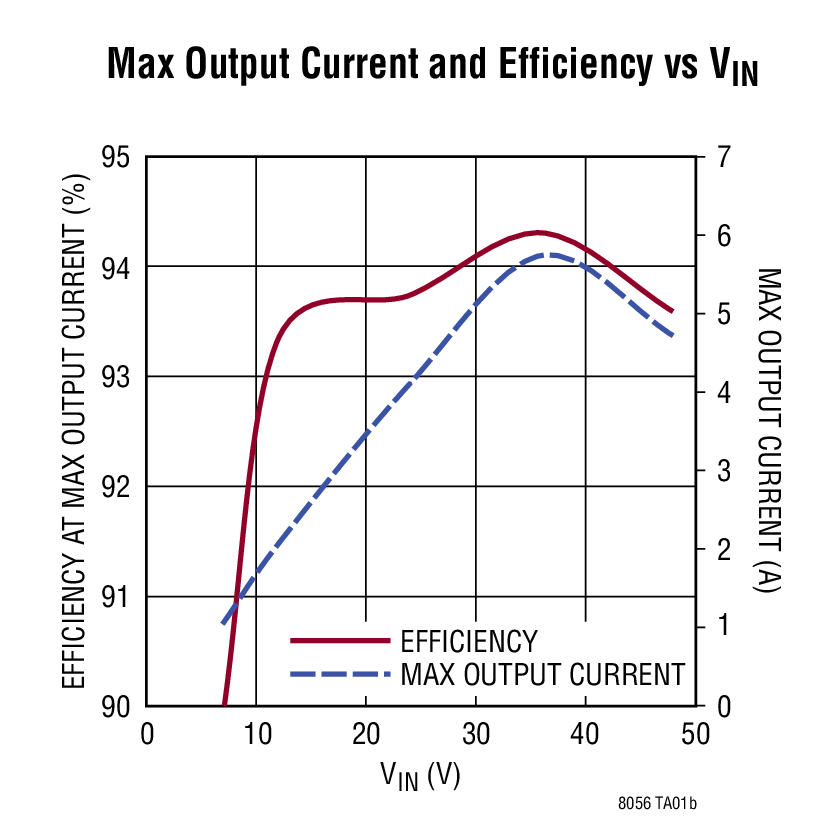

  • Up to 96% Efficient
  • Adjustable Input and Output Average Current Limits
  • Input and Output Current Monitors
  • Parallelable for Increased Output Current
  • Wide Output Voltage Range: 1.2V to 48V
  • Selectable Switching Frequency: 100kHz to 800kHz
  • Synchronization from 200kHz to 700kHz
  • 15mm × 15mm × 4.92mm BGA Package

Product Details

The LTM8056 is a 58VIN, buck-boost Power Module® (power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. A resistor to set the switching frequency, a resistor divider to set the output voltage, and input and output capacitors are all that are needed to complete the design. Other features such as input and output average current regulation may be implemented with just a few components. The LTM8056 operates over an input voltage range of 5V to 58V, and can regulate output voltages between 1.2V and 48V. The SYNC input and CLKOUT output allow easy synchronization.

The LTM8056 is housed in a compact overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8056 is available with SnPB or RoHS compliant terminal finish.

Buck-Boost Selection Table
LTM8054 LTM8055 LTM8056
VIN (Operation) 36 36 58
VIN Abs Max 40 40 60
VOUT Abs Max 40 40 60
IOUT (Peak) 24VIN, 12VOUT 5.4 8.5 5.5
Package 15 × 11.25mm × 3.42mm BGA 15 × 15mm × 4.92mm BGA Pin and Function Compatible


Applications

  • High Power Battery-Operated Devices
  • Industrial Control
  • Solar Powered Voltage Regulator
  • Solar Powered Battery Charging

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

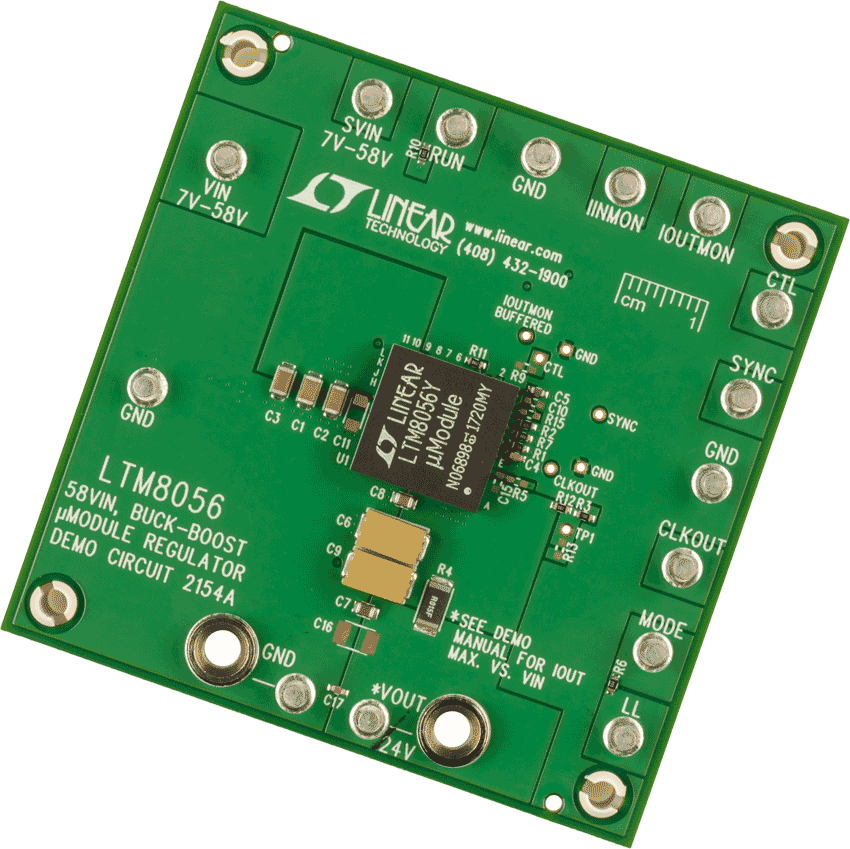

Evaluation Kits (1)

Documentation & Resources

  • View All (11)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
  • Product Selector Card (5)
  • Informational (1)
  • Product Selection Guide (1)
  • Technical Article (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

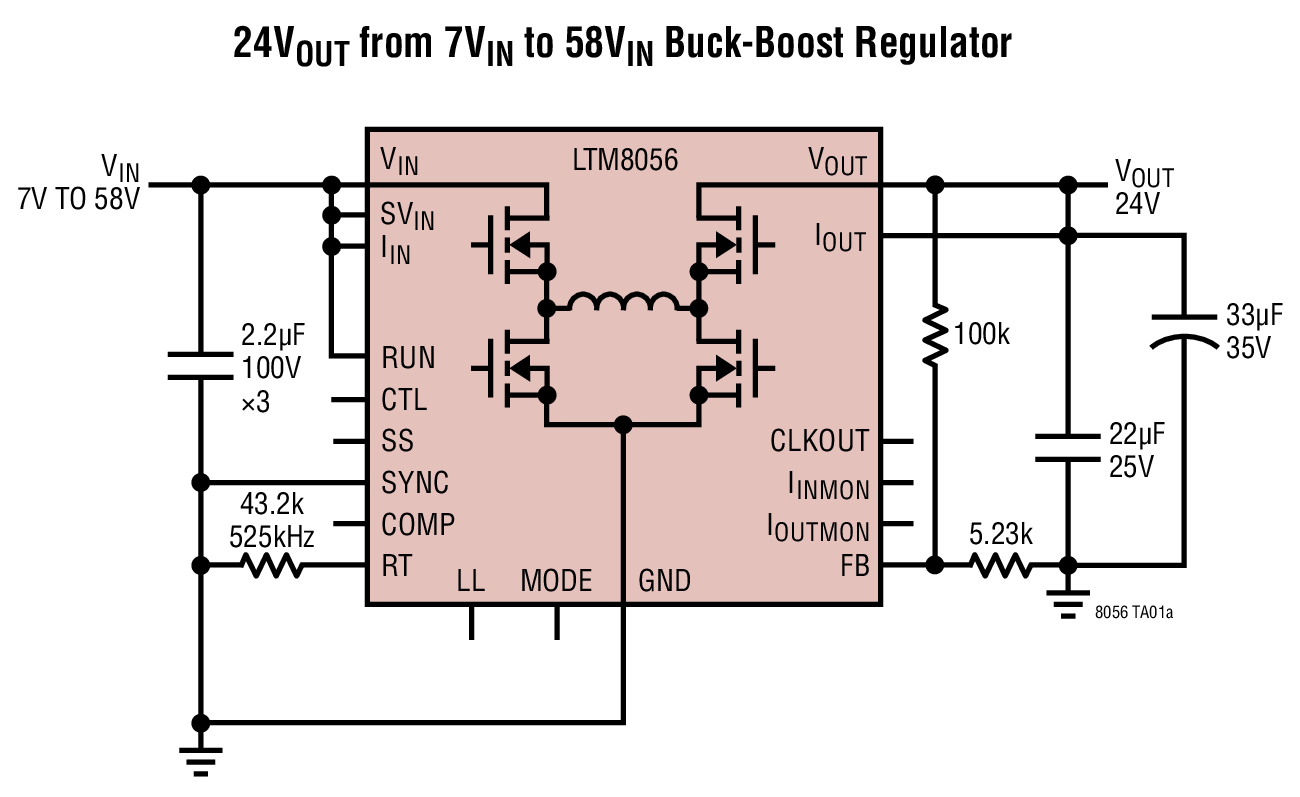

    LTM8056 Demo Circuit - High Efficiency Buck-Boost Regulator with Accurate Current Limit & Output Current Monitor (7-58V to 24V @ 3A)

    Models for the following parts are available in LTspice:

    LTM8056

    LTpowerCAD

    LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

    To open the project file for this circuit:

    Step 1: Download and install LTpowerCAD on your computer.

    Step 2: Click on the link(s) in the section below to download part-specific project files.

    Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.

    LTPowerCAD

    LTpowerCAD Project Files

    LTM8056 Project - Buck-Boost μModule Regulator (7-58V to 24V @ 5.4A)

    Design tools for the following parts are available in LTpowerCAD:

    LTM8056

    Product Recommendations

    LTM8056 Companion Parts

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

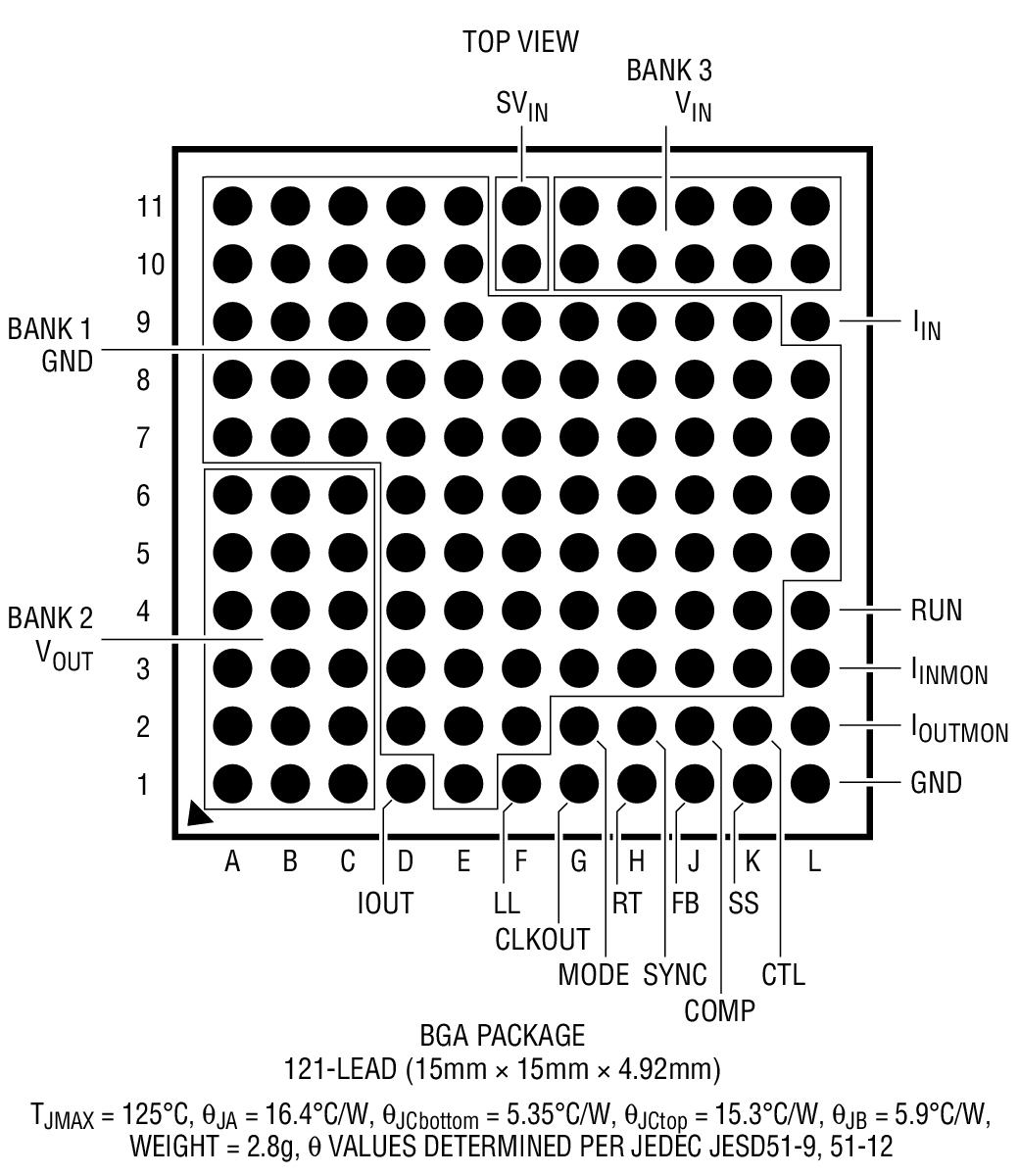

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
