LTM4663

Ultrathin 1.5A µModule Thermoelectric Cooler (TEC) Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 2
1ku List Price Starting From $7.03
Features
  • Built-in Two Zero-Drift, Rail-to-Rail Chopper Amplifiers
  • 2.7V to 5.5V Input Voltage Range
  • 1.5A Driving Capability
  • 1% Accuracy 2.5V Internal Reference Output
  • Independent Programmable Heating and Cooling Current Limit
  • TEC Voltage and Current Monitoring
  • Programmable Maximum TEC Voltage
  • Default 2MHz Switching Frequency
  • Synchronization from 1.85MHz to 3.25MHz
  • Capable of NTC, PTC and RTD Thermal Sensors
  • 3.5mm × 4mm × 1.3mm LGA Package
Additional Details
show more Icon

The LTM4663 is a complete 1.5A µModule® Thermoelectric Cooler (TEC) regulator in a tiny 3.5mm × 4mm × 1.3mm LGA package. Included in the package are the TEC controller, linear power stage, switching regulator, inductor and all support components.

Operating over an input voltage range of 2.7V to 5.5V, the LTM4663 supports a 1.5A continuous sink or source current capability. Only input and output capacitors are needed. The LTM4663 has two zero drift, rail-to-rail chopper amplifiers to serve as the thermistor input amplifier and the temperature feedback control loop.

The LTM4663 supports NTC, PTC thermistors and resistive temperature detectors (RTD). The maximum cooling and heating currents can be programmed independently as well as the maximum TEC voltage.

The LTM4663 is available in LGA RoHS compliant terminal finish.

APPLICATIONS

  • TEC Temperature Control
  • Optical Networking System, Optical Module
  • LiDAR System
Part Models 2
1ku List Price Starting From $7.03

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4663EV#PBF
  • HTML
  • HTML
LTM4663IV#PBF
  • HTML
  • HTML

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC2902A

LTM4663 Demo Board | Ultrathin 1.5A Thermoelectric Cooler (TEC) μModule Regulator

zoom

DC2902A

LTM4663 Demo Board | Ultrathin 1.5A Thermoelectric Cooler (TEC) μModule Regulator

LTM4663 Demo Board | Ultrathin 1.5A Thermoelectric Cooler (TEC) μModule Regulator

Product Detail

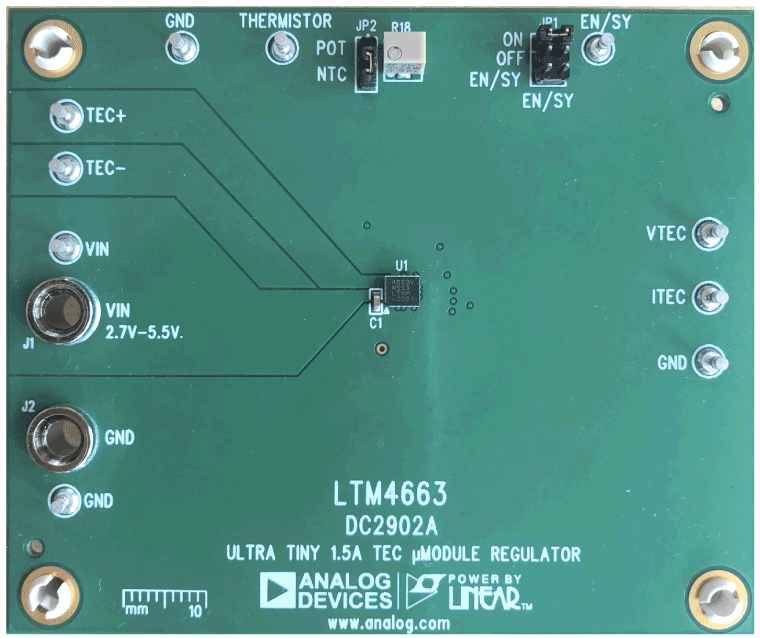

Demonstration circuit DC2902A is a thermoelectric cooler (TEC) regulator featuring the LTM4663 μModule regulator. The demo board has a 2.7V to 5.5V input voltage range and can deliver up to 1.5A of sinking or sourcing current. Inside the LTM4663, a linear power stage works together with a PWM power stage to form an H-bridge configuration. The direction of the current fed through the TEC can be either positive (for cooling mode), or negative (for heating mode). The LTM4663 has two built-in zero drift, rail-to-rail chopper amplifiers which can serve as a thermistor input amplifier and form an analog temperature control loop. The LTM4663 provides a 1% accuracy 2.5V internal reference voltage to bias the thermistor temperature sensing circuit and to program the maximum TEC current and voltage limits for both the cooling and heating modes.

The demo board has a default 2MHz switching frequency and can be synchronized to an external clock from 1.85MHz to 3.25MHz applied to the EN/SY input pin (JP1: EN/SY). The clock high level must be above 2.1V and the clock low level must be below 0.8V. Maximum TEC current limit can be programmed with a resistor, R7 (default: 1.5A for cooling mode; –1.5A for heating mode). Maximum TEC voltage limit can be programmed with a resistor, R10 (default: 5V for cooling mode; –4.8V for heating mode). Other features include VTEC output for TEC voltage monitor and ITEC output for TEC current monitor

The LTM4663 datasheet gives a complete description of the operation and application information. The datasheet must be read in conjunction with the demo manual.
