LTC7802
40V Low IQ, 3MHz Dual, 2-Phase Synchronous Step-Down Controller with Spread Spectrum
Top
Overview
Features and Benefits
- Wide Input Voltage Range: 4.5V to 40V
- Wide Output Voltage Range: 0.8V to 99% • VIN
- Low Operating IQ: 14μA (14V to 3.3V, Channel 1 On)
- Spread Spectrum Operation
- RSENSE or DCR Current Sensing
- Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
- Programmable Fixed Frequency (100kHz to 3MHz)
- Phase-Lockable Frequency (100kHz to 3MHz)
- Selectable Continuous, Pulse-Skipping, or Low Ripple, Burst Mode® Operation at Light Loads
- Very Low Dropout Operation: 99% Duty Cycle
- Power Good Output Voltage Monitors
- Output Overvoltage Protection
- Internal LDO Powers Gate Drive from VIN or EXTVCC
- Low Shutdown IQ: 1.5μA
- Small 28-Lead 4mm × 5mm QFN Package
- AEC-Q100 Qualified for Automotive Applications
Product Details
The LTC7802 is a high performance dual step-down synchronous DC/DC switching regulator controller that drives all N-channel power MOSFET stages. Constant frequency current mode architecture allows a phase-lockable switching frequency of up to 3MHz. The LTC7802 operates from a wide 4.5V to 40V input supply range. Power loss and supply noise are minimized by operating the two controller output stages out-of-phase.
The very low no-load quiescent current extends operating runtime in battery powered systems. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC7802 features a precision 0.8V reference and power good output indicators. The MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous inductor current mode at light loads.
The LTC7802 additionally features spread spectrum operation which significantly reduces the peak radiated and conducted noise on both the input and output supplies, making it easier to comply with electromagnetic interference (EMI) standards.
APPLICATIONS
- Automotive and Transportation
- Industrial
- Military/Avionics
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

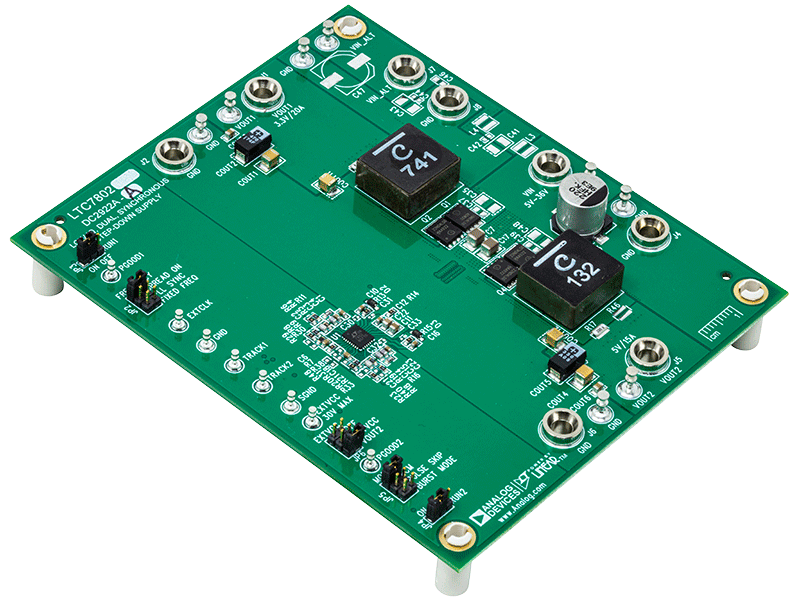

Evaluation Kits (1)
Documentation & Resources
-
DC2922A-A/DC2922A-B - Demo Manual (Rev. 0)7/14/2021PDF1 M
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
LTC7802
LTpowerCAD
LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.
To open the project file for this circuit:
Step 1: Download and install LTpowerCAD on your computer.
Step 2: Click on the link(s) in the section below to download part-specific project files.
Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.
LTpowerCAD Project Files
Design tools for the following parts are available in LTpowerCAD:
LTC7802
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC7802EUFDM#PBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC7802EUFDM#TRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC7802HUFDM#WPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC7802HUFDM#WTRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC7802IUFDM#WPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC7802IUFDM#WTRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC7802JUFDM#WPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LTC7802JUFDM#WTRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data |
