LTC7138
RECOMMENDED FOR NEW DESIGNSHigh Efficiency, 140V 400mA Step-Down Regulator with PassThru
- Part Models
- 12
- 1ku List Price
- Starting From $5.76
Overview
- Wide Operating Input Voltage Range: 4V to 140V
- Internal Low Resistance Power MOSFET
- No Compensation Required
- Adjustable 100mA to 400mA Maximum Output Current
- Low Dropout Operation: 100% Duty Cycle
- Low Quiescent Current: 12μA
- Wide Output Range: 0.8V to VIN
- 0.8V ±1% Feedback Voltage Reference
- Precise RUN Pin Threshold
- Internal or External Soft-Start
- Programmable 1.8V, 3.3V, 5V or Adjustable Output
- Few External Components Required
- Programmable Input Overvoltage Lockout
- Thermally Enhanced High Voltage MSOP Package
- AEC-Q100 Qualified for Automotive Applications
The LTC7138 is a high efficiency step-down DC/DC regulator with internal power switch that draws only 12μA typical DC supply current while maintaining a regulated output voltage at no load.
The LTC7138 can supply up to 400mA load current and features a programmable peak current limit that provides a simple method for optimizing efficiency and for reducing output ripple and component size. The LTC7138’s combination of Burst Mode® operation, integrated power switch, low quiescent current, and programmable peak current limit provides high efficiency over a broad range of load currents.
With its wide input range of 4V to 140V and programmable overvoltage lockout, the LTC7138 is a robust regulator suited for regulating from a wide variety of power sources. Additionally, the LTC7138 includes a precise run threshold and soft-start feature to guarantee that the power system start-up is well-controlled in any environment. A feedback comparator output enables multiple LTC7138s to be connected in parallel for higher current applications.
The LTC7138 is available in a thermally enhanced high voltage-capable 16-lead MSE package with four missing pins.
Applications
- Industrial Control Supplies
- Medical Devices
- Distributed Power Systems
- Portable Instruments
- Battery-Operated Devices
- Avionics
- Automotive
Documentation
Data Sheet 1
User Guide 1
Design Note 1
Technical Articles 2
Product Selector Card 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC7138EMSE#PBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138EMSE#TRPBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138HMSE#PBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138HMSE#TRPBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138HMSE#WPBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138HMSE#WTRPBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138IMSE#PBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138IMSE#TRPBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138IMSE#WPBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138IMSE#WTRPBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138MPMSE#PBF | 16(12)-Lead MSOP w/ EP | ||
| LTC7138MPMSE#TRPBF | 16(12)-Lead MSOP w/ EP |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jun 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2) |
||
| LTC7138EMSE#PBF | PRODUCTION | |
| LTC7138EMSE#TRPBF | PRODUCTION | |
| LTC7138HMSE#PBF | PRODUCTION | |
| LTC7138HMSE#TRPBF | PRODUCTION | |
| LTC7138IMSE#PBF | PRODUCTION | |
| LTC7138IMSE#TRPBF | PRODUCTION | |
| LTC7138MPMSE#PBF | PRODUCTION | |
| LTC7138MPMSE#TRPBF | PRODUCTION | |
|
Feb 4, 2020 - 20_0132 Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC |
||
| LTC7138EMSE#PBF | PRODUCTION | |
| LTC7138EMSE#TRPBF | PRODUCTION | |
| LTC7138HMSE#PBF | PRODUCTION | |
| LTC7138HMSE#TRPBF | PRODUCTION | |
| LTC7138IMSE#PBF | PRODUCTION | |
| LTC7138IMSE#TRPBF | PRODUCTION | |
| LTC7138MPMSE#PBF | PRODUCTION | |
| LTC7138MPMSE#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareHardware Ecosystem
| Parts | Product Life Cycle | Description |
|---|---|---|
| Overvoltage & Overcurrent Protectors 1 | ||
| LTC4366 | RECOMMENDED FOR NEW DESIGNS | High Voltage Surge Stopper |
Tools & Simulations
LTspice 2
- LTC7138/LT8330 Demo Circuit - Wide Input Voltage Range, Buck or Boost Bias Voltage Power Supply (5-140V to 12.5V @ 100mA)

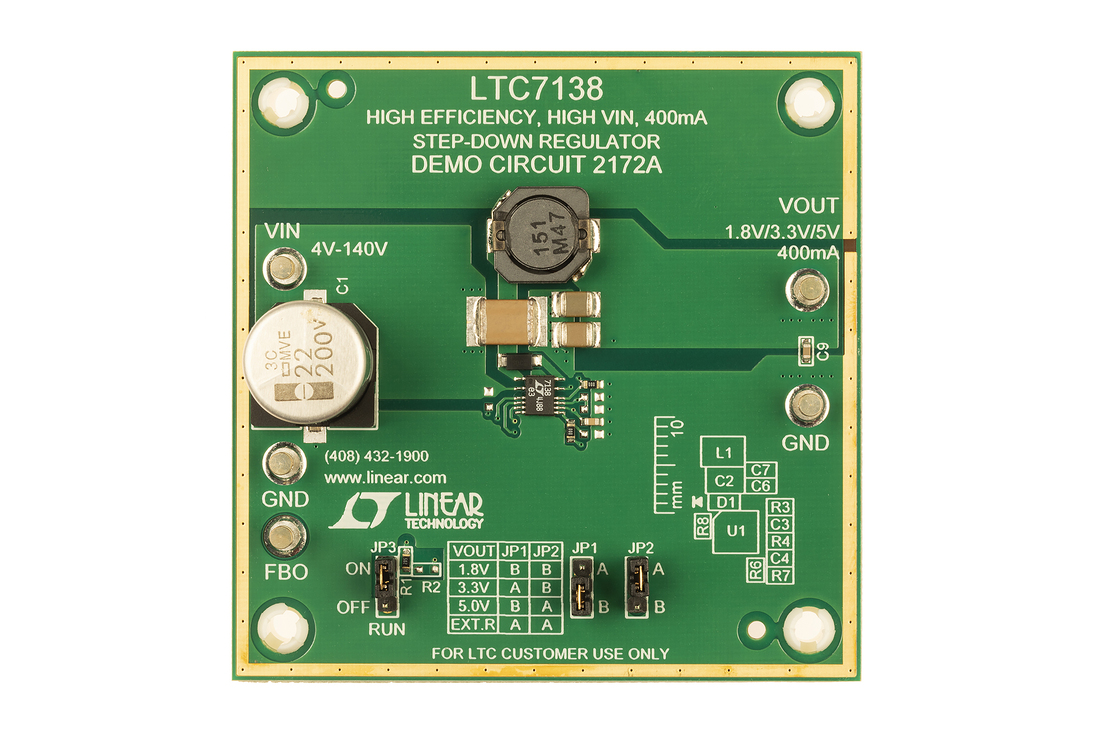

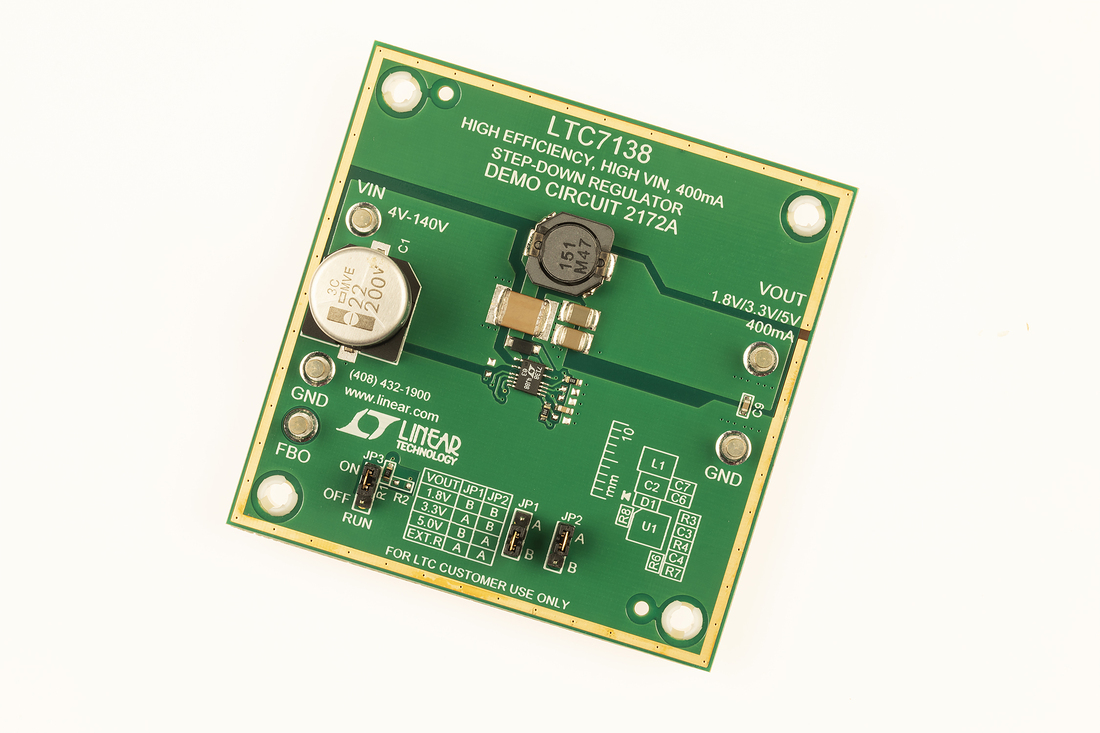

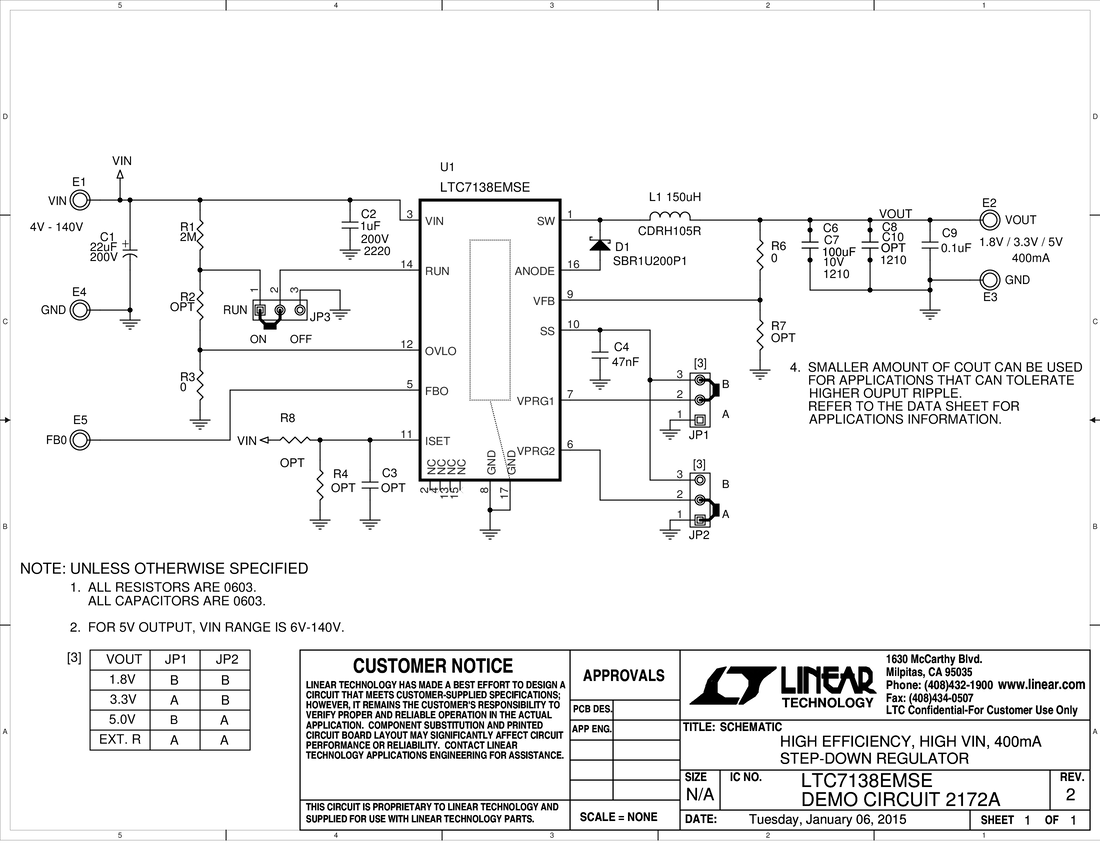

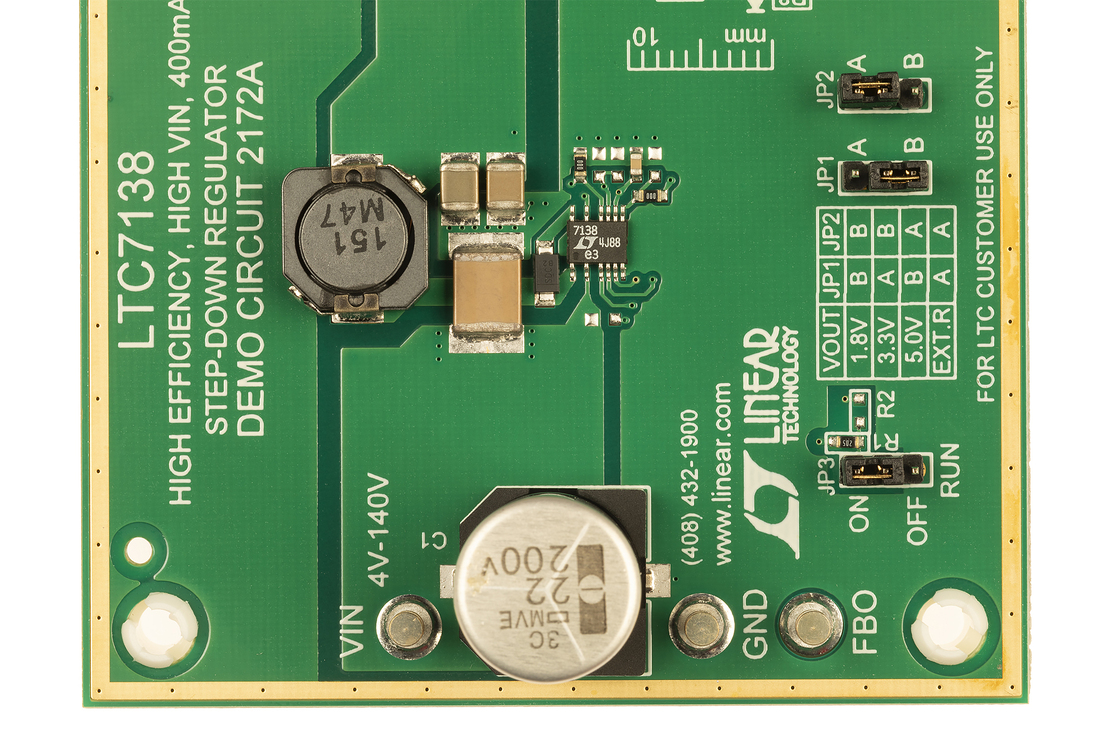

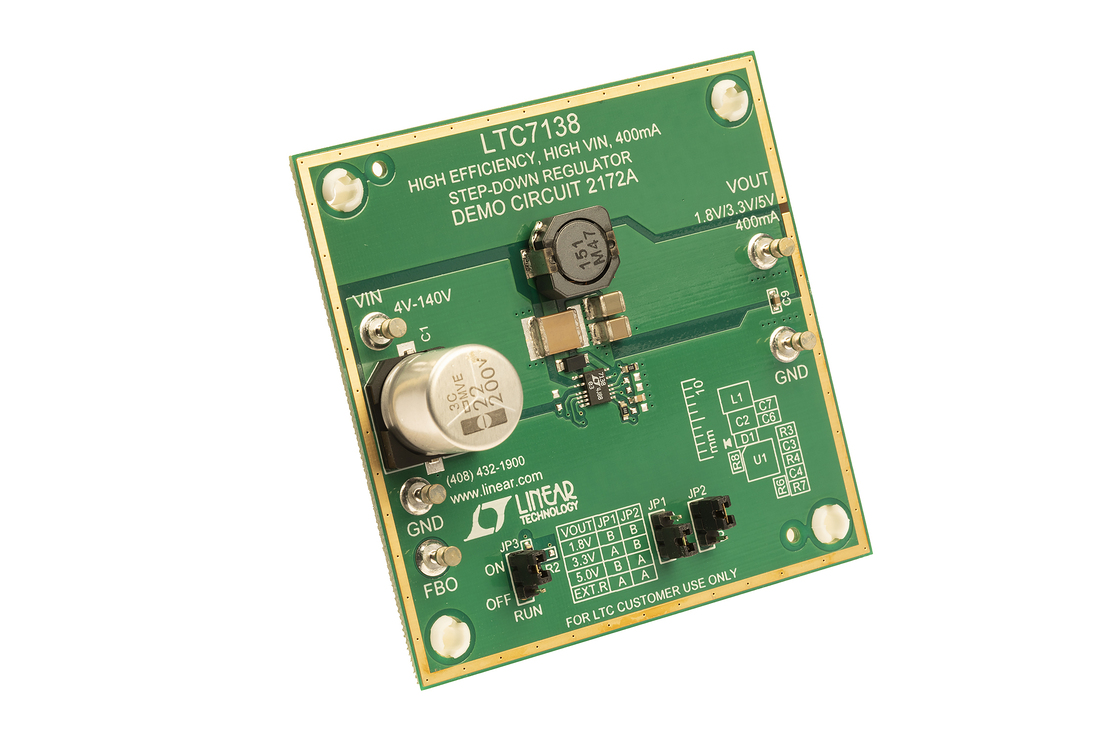

- LTC7138 Demo Circuit - High Voltage Input Buck Regulator (4-140V to 3.3V @ 400mA)
Models for the following parts are available in LTspice:
- LTC7138
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
