LTC7068

Name: LTC7068
Brand: Analog Devices
Price: 1.34 USD
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

150V Half Bridge Driver with Adaptive Shoot-Through Protection

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1.34

Viewing:

Overview

150V Maximum Input Voltage Independent of IC Supply Voltage V_CC
6V to 14V V_CC and Bottom Gate Driver Voltage
4V to 14V Top Gate Driver Voltage
1.3Ω Pull-Down, 1.6Ω Pull-Up
Adaptive Shoot-Through Protection
Three-State PWM Input with Enable Pin
V_CC UVLO and Floating Supply UVLO
Drives Dual N-Channel MOSFETs
Available in Thermally Enhanced 10-LEAD Mini Small Outline Package (MSOP)

Part Models: 2
1ku List Price: Starting From $1.34

Documentation

Data Sheet 1

LTC7068: 150V Half Bridge Driver with Adaptive Shoot-Through Protection Data Sheet (Rev.0) 03/13/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC7068RMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC7068RMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC7068

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Buy Now View Details

Product Details

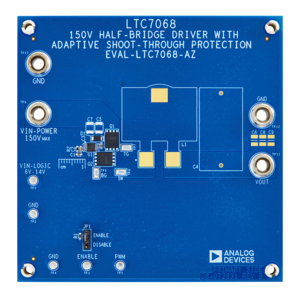

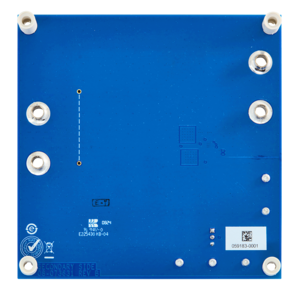

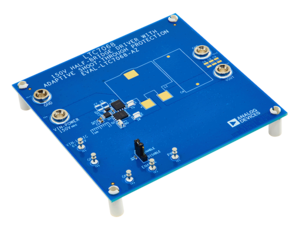

The EVAL-LTC7068-AZ evaluation circuit features LTC7068 driving two N-channel MOSFETs in a half-bridge configuration. The PWM input control is 5V logic compatible and controls both gate outputs, with one output complementing the other. The evaluation board has several unpopulated Printed Circuit Board (PCB) pads to help the user customize the board for their application.

The LTC7068 driver has powerful 1.3Ω pull-down and 1.6Ω pull-up MOSFET drivers driving two 150V N-Channel MOSFETs.
