LTC7061
LTC7061
RECOMMENDED FOR NEW DESIGNS100V Half Bridge Driver with Floating Grounds and Adjustable Dead-Time
- Part Models
- 8
- 1ku List Price
- Starting From $1.54
Viewing:
Overview
- Unique Symmetric Floating Gate Driver Architecture
- High Noise Immunity,Tolerates ±10V Ground Difference
- 100V Maximum Input Voltage Independent of IC Supply Voltage VCC
- 5V to 14V VCC Operating Voltage
- 4V to 14V Gate Driver Voltage
- 0.8Ω Pull-Down, 1.5Ω Pull-Up for Fast Turn-On/Off
- Adaptive Shoot-Through Protection
- Adjustable Dead-Time
- TTL/CMOS Compatible Input
- VCC UVLO/OVLO and Floating Supplies UVLO
- Drives Dual N-Channel MOSFETs
- Open-Drain Fault Indicator (VCC UVLO/OVLO, Gate Driver UVLO and Thermal Shutdown)

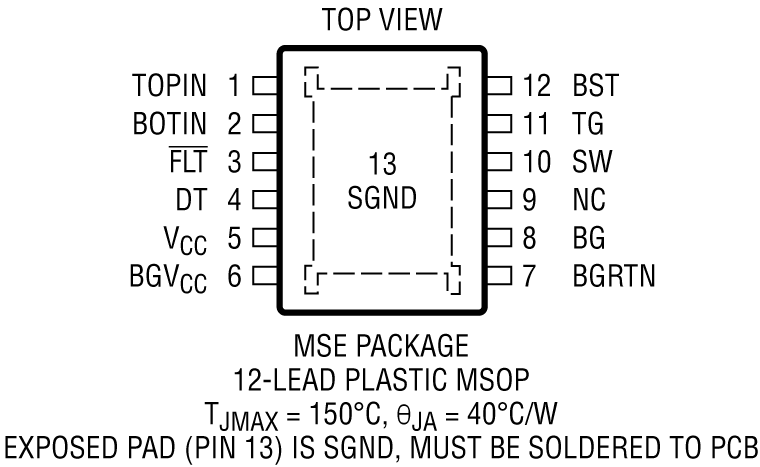

- Available in Thermally Enhanced 12-LEAD MSOP
- AEC-Q100 Automotive Qualification in Progress

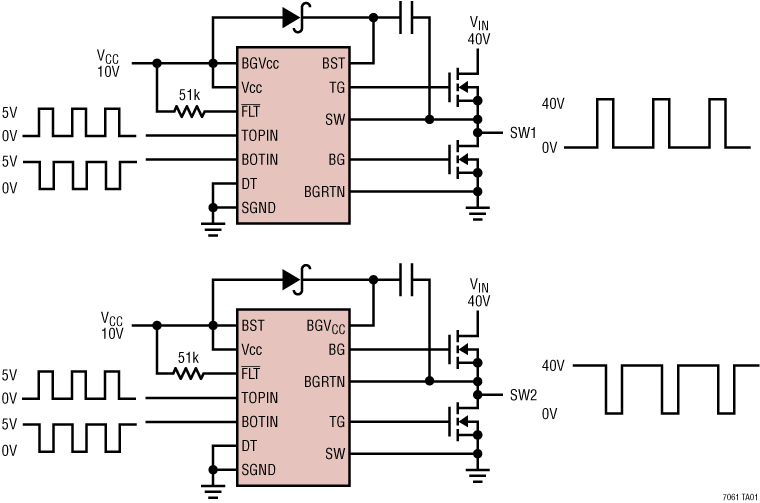

The LTC7061 drives two N-Channel MOSFETs in a half-bridge configuration with supply voltages up to 100V. Both high-side and low-side drivers can drive the MOSFETs with a different ground reference, providing excellent noise and transient immunity.
Its powerful 0.8Ω pull-down and 1.5Ω pull-up MOSFET drivers allows the use of large gate capacitance high voltage MOSFETs. Additional features include UVLO, TTL/ CMOS compatible inputs, adjustable turn-on/-off delays and shoot-through protection.
For a similar driver in this product family, please refer to chart in the data sheet.
Documentation
Data Sheet 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC7061EMSE#PBF | 12-Lead MSOP w/ EP | ||
| LTC7061EMSE#TRPBF | 12-Lead MSOP w/ EP | ||
| LTC7061HMSE#WPBF | 12-Lead MSOP w/ EP | ||
| LTC7061HMSE#WTRPBF | 12-Lead MSOP w/ EP | ||
| LTC7061IMSE#WPBF | 12-Lead MSOP w/ EP | ||
| LTC7061IMSE#WTRPBF | 12-Lead MSOP w/ EP | ||
| LTC7061JMSE#WPBF | 12-Lead MSOP w/ EP | ||
| LTC7061JMSE#WTRPBF | 12-Lead MSOP w/ EP |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jun 21, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices |
||
| LTC7061HMSE#WPBF | PRODUCTION | |
| LTC7061HMSE#WTRPBF | PRODUCTION | |
| LTC7061JMSE#WPBF | PRODUCTION | |
| LTC7061JMSE#WTRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareTools & Simulations
LTspice
Models for the following parts are available in LTspice:
- LTC7061
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
