LTC4442
LTC4442-1

High Speed Synchronous N-Channel MOSFET Drivers

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 8
1ku List Price Starting From $1.54
Features
  • Wide VCC Range: 6V to 9.5V
  • 38V Maximum Input Supply Voltage
  • Adaptive Shoot-Through Protection
  • 2.4A Peak Pull-Up Current
  • 5A Peak Pull-Down Current

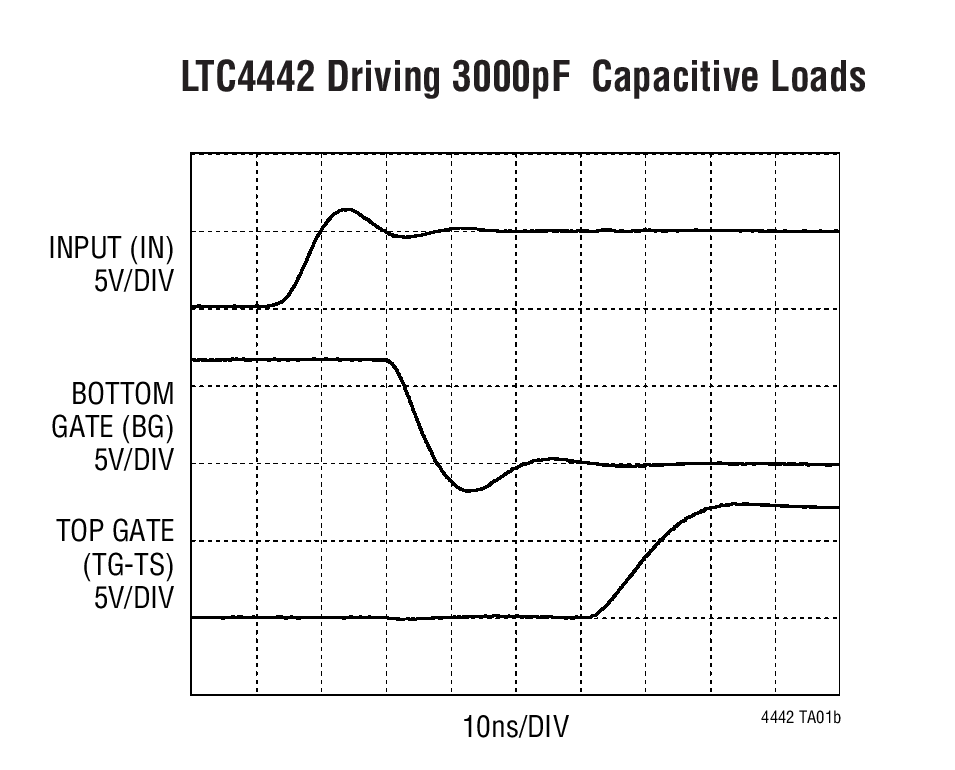

  • 8ns TG Fall Time Driving 3000pF Load
  • 12ns TG Rise Time Driving 3000pF Load
  • Separate Supply to Match PWM Controller
  • Drives Dual N-Channel MOSFETs
  • Undervoltage Lockout
  • Thermally Enhanced MSOP Package
Additional Details
show more Icon

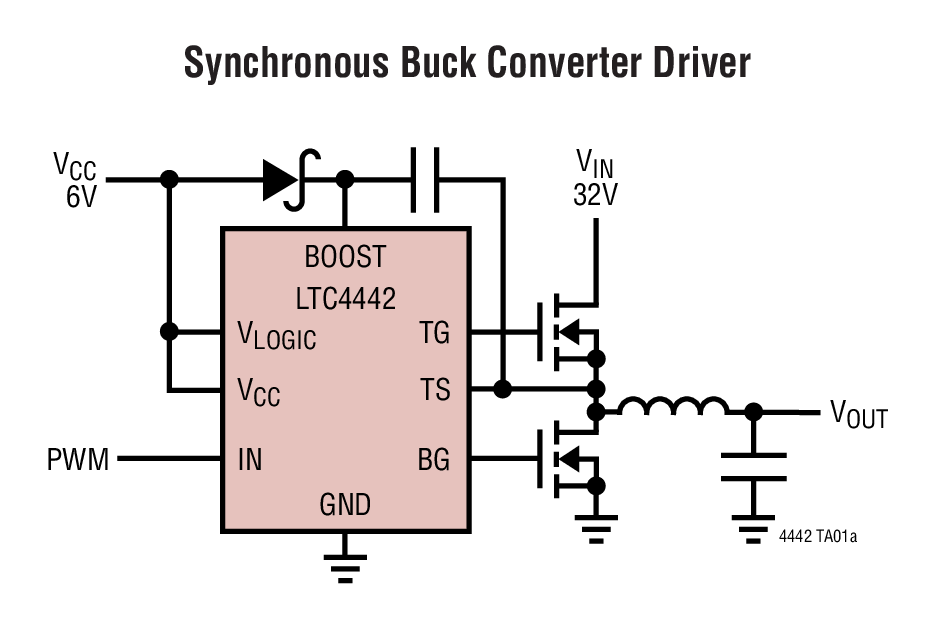

The LTC4442 is a high frequency gate driver designed to drive two N-channel MOSFETs in a synchronous buck DC/DC converter topology. The powerful driver capability reduces switching losses in MOSFETs with high gate capacitance.

The LTC4442 features a separate supply for the input logic to match the signal swing of the controller IC. If the input signal is not being driven, the LTC4442 activates a shutdown mode that turns off both external MOSFETs. The input logic signal is internally level-shifted to the bootstrapped supply, which may function at up to 42V above ground.

The LTC4442 contains undervoltage lockout circuits on both the driver and logic supplies that turn off the external MOSFETs when an undervoltage condition is present. The LTC4442 and LTC4442-1 have different undervoltage lockout thresholds to accommodate a wide variety of applications. An adaptive shoot-through protection feature is also built-in to prevent power loss resulting from MOSFET cross-conduction current.

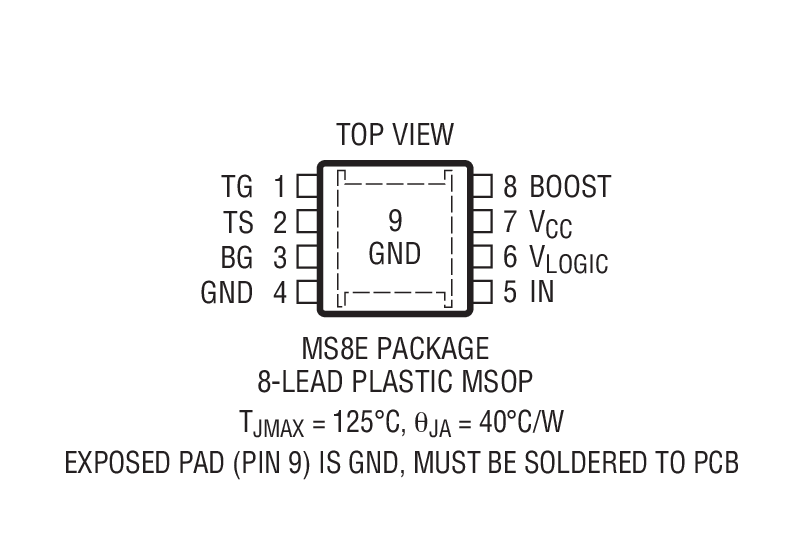

The LTC4442/LTC4442-1 are available in the thermally enhanced 8-lead MSOP package.

Applications

  • Distributed Power Architectures
  • High Density Power Modules
Part Models 8
1ku List Price Starting From $1.54
