LTC4413

RECOMMENDED FOR NEW DESIGNS

Dual 2.6A, 2.5V to 5.5V, Ideal Diodes in 3mm × 3mm DFN

Part Models: 2
1ku List Price: Starting From $2.92

Viewing:

Part Details

2-Channel Ideal Diode ORing or Load Sharing
Low Loss Replacement for ORing Diodes
Low Forward On-Resistance (100mΩ Max at 3.6V)
Low Reverse Leakage Current (1μA Max)
Small Regulated Forward Voltage (28mV Typ)
2.5V to 5.5V Operating Range
2.6A Maximum Forward Current
Internal Current Limit and Thermal Protection
Slow Turn-On/Off to Protect Against Inductive Source Impedance-Induced Voltage Spiking
Ultralow Quiescent Current Consumption, Low Power Alternative to the LTC4413-1
Status Output to Indicate if Selected Channel is Conducting
Programmable Channel On/Off
Low Profile (0.75mm) 10-Lead 3mm × 3mm DFN Package

The LTC4413 contains two monolithic ideal diodes, each capable of supplying up to 2.6A from input voltages between 2.5V and 5.5V. Each ideal diode uses a 100mΩ P-channel MOSFET that independently connects INA to OUTA and INB to OUTB. During normal forward operation the voltage drop across each of these diodes is regulated to as low as 28mV. Quiescent current is less than 40μA for diode currents up to 1A. If either of the output voltages exceeds its respective input voltages, that MOSFET is turned off and less than 1μA of reverse current will flow from OUT to IN. Maximum forward current in each MOSFET is limited to a constant 2.6A and internal thermal limiting circuits protect the part during fault conditions.

Two active-high control pins independently turn off the two ideal diodes contained within the LTC4413, controlling the operation mode as described by Table 1. When the selected channel is reverse biased, or the LTC4413 is put into low power standby, a status signal indicates this condition with a low voltage.

A 9μA open-drain STAT pin is used to indicate conduction status. When terminated to a positive supply through a 470k resistor, the STAT pin can be used to indicate that the selected diode is conducting with a high voltage. This signal can also be used to drive an auxiliary P-channel MOSFET power switch to control a third alternate power source when the LTC4413 is not conducting forward current.

The LTC4413 is housed in a 10-lead DFN package.


	Features
LTC4413	Lower Iq
LTC4413-1	Lower Vfwd, Faster Response, Higher Iq
LTC4413-2	Lower Vfwd, Faster Response, Higher Iq, 13V (max) OVP

Applications

Battery and Wall Adapter Diode ORing in Handheld Products
Backup Battery Diode ORing
Power Switching
USB Peripherals
Uninterruptable Supplies

Part Models: 2
1ku List Price: Starting From $2.92

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4413EDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4413EDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Low Voltage Hot Swap Controllers 1
LTC4361-1 LTC4361-2		Overvoltage/Overcurrent Protection Controller

Tools & Simulations

LTspice 1

LTC4413 - Power Monitor, Control, and Protection

Models for the following parts are available in LTspice:

LTC4413
LTC4413-1
LTC4413-2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTC4413EDD | Dual Ideal Diode-Triple Power Path Controller, VIN = 2.5 to 5.5V, VOUT = 2.5 to 5.5V @ 2.6A MAX

Buy Now View Details

Product Details

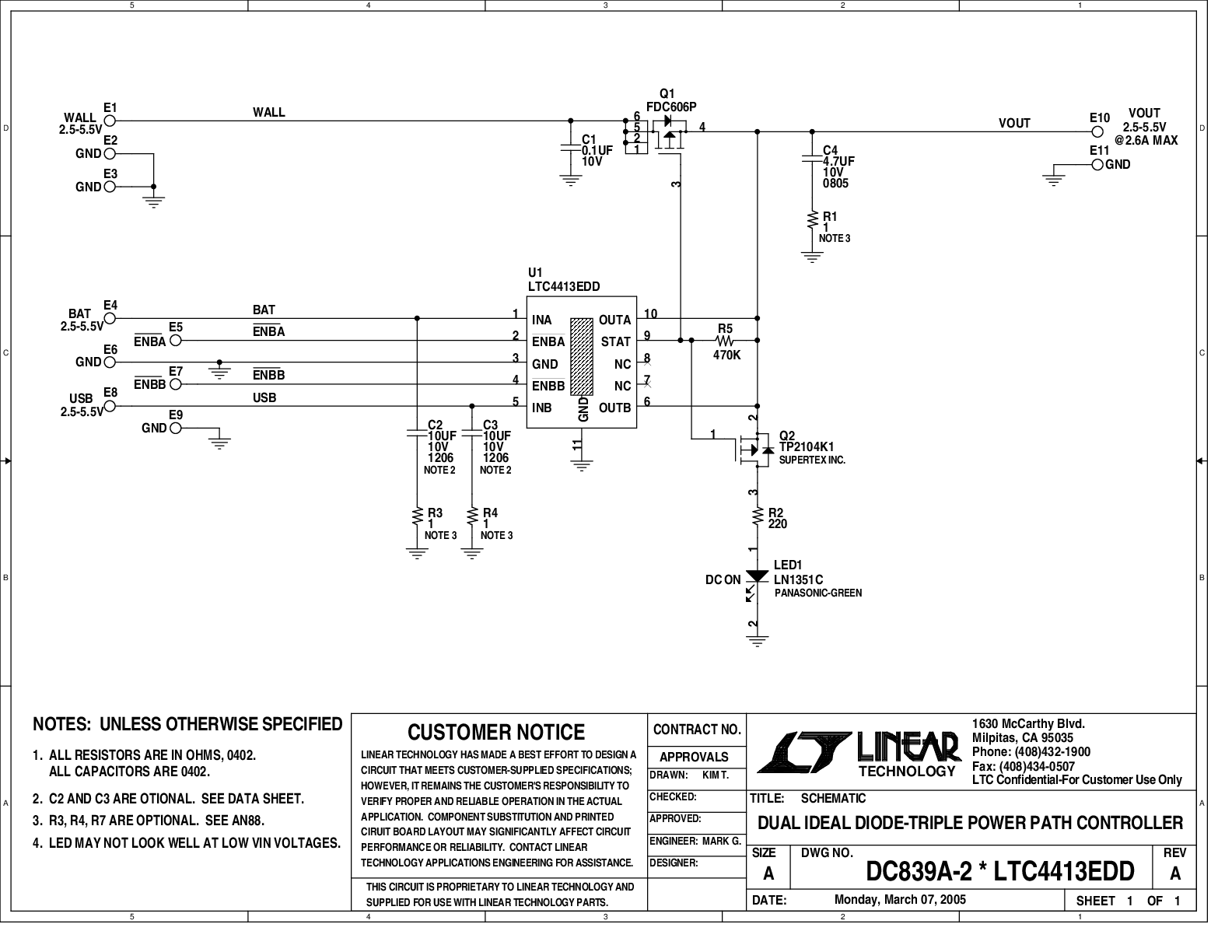

DC839A: Demo Board for the LTC4413 Dual 2.6A, 2.5V to 5.5V, Ideal Diodes in 3mm × 3mm DFN.
