Overview

Features and Benefits

  • Allows Safe Board Insertion into a Live Backplane
  • Small Footprint
  • 10mΩ MOSFET Including RSENSE
  • Safe Operating Area Guaranteed at 41W, 30ms
  • Wide Operating Voltage Range: 2.9V to 15V
  • Adjustable, 11% Accurate Current Limit
  • Current and Temperature Monitor Outputs
  • Overtemperature Protection
  • Adjustable Current Limit Timer Before Fault
  • Power Good and Fault Outputs
  • Adjustable Inrush Current Control
  • 2.5% Accurate Undervoltage and Overvoltage Protection

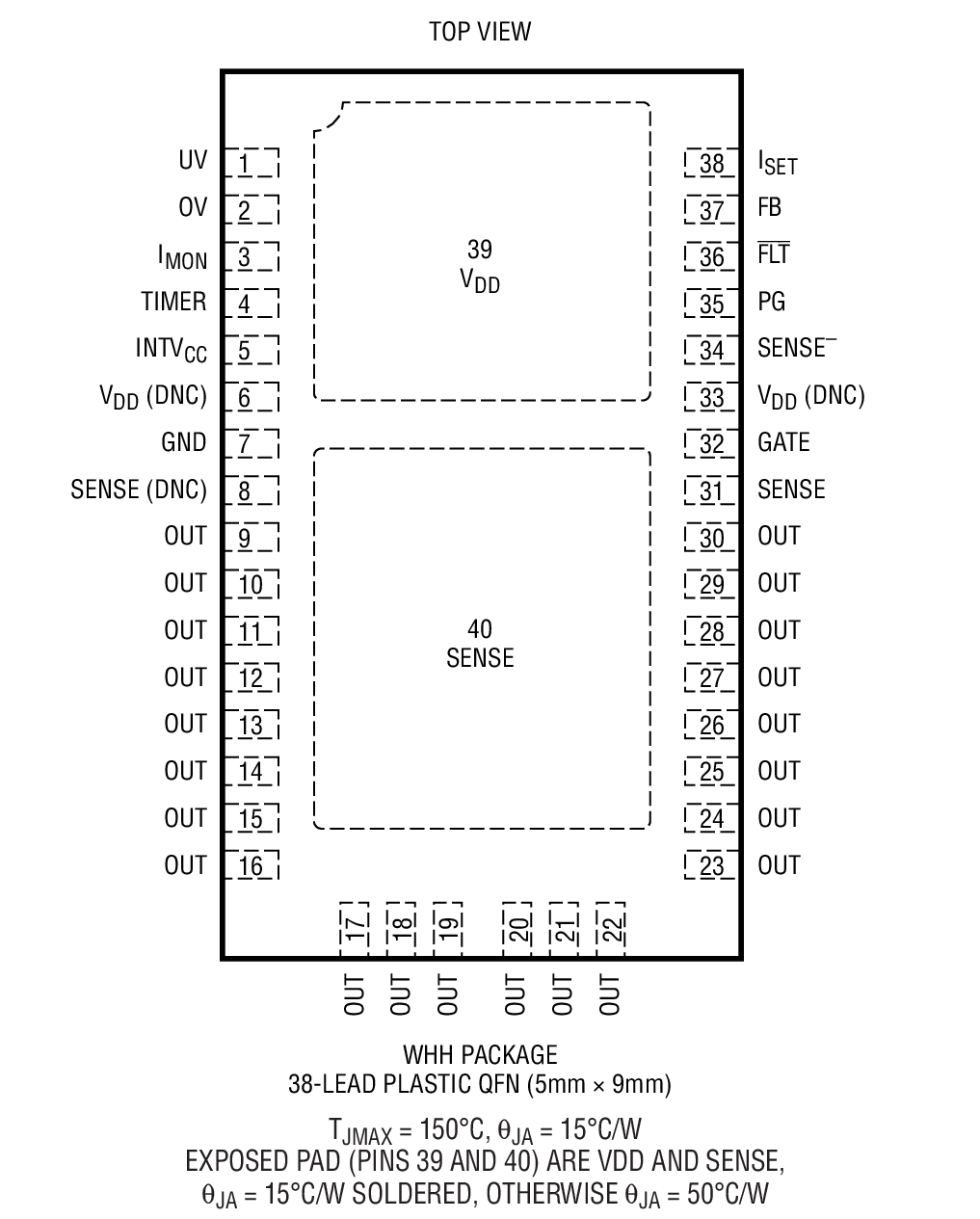

  • Available in 38-Lead (5mm × 9mm) QFN Package
  • Pin Compatible with LTC4234

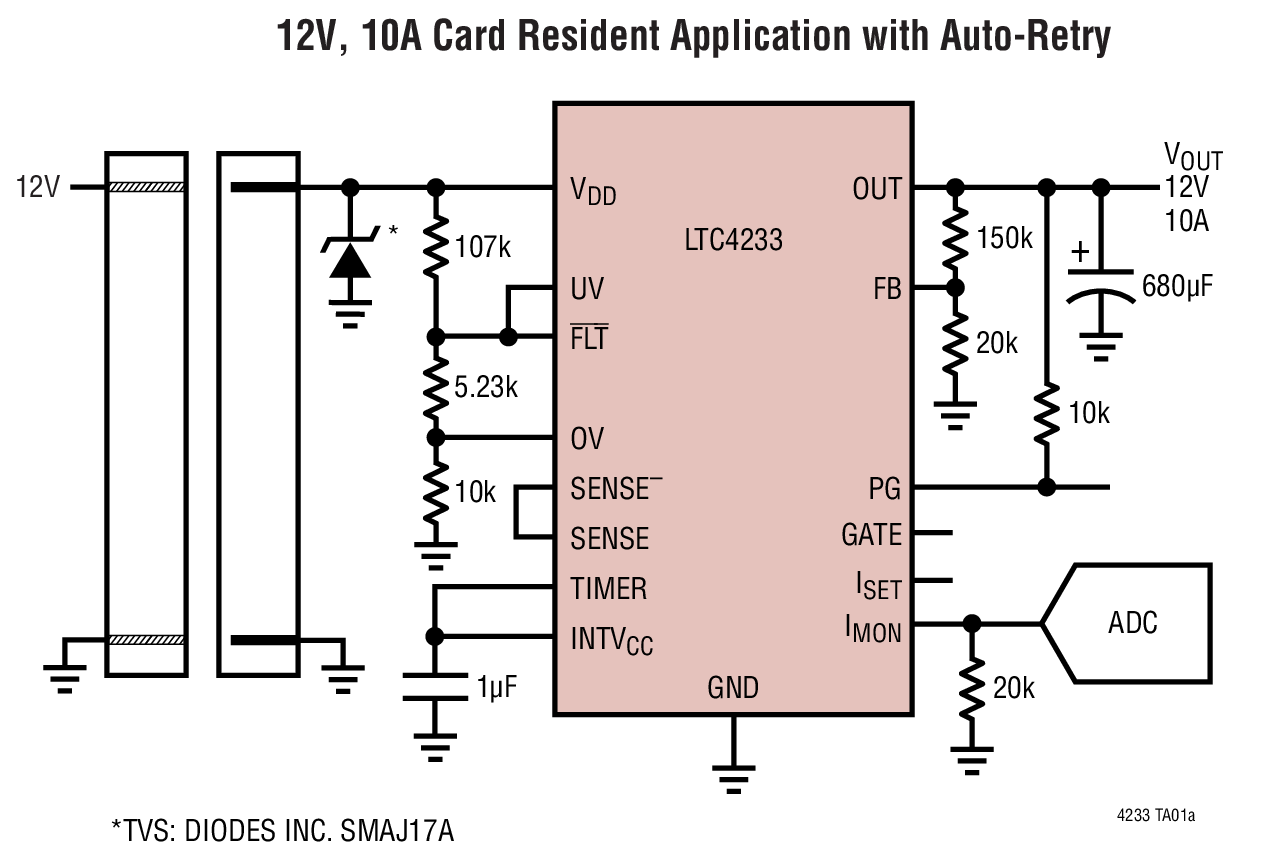

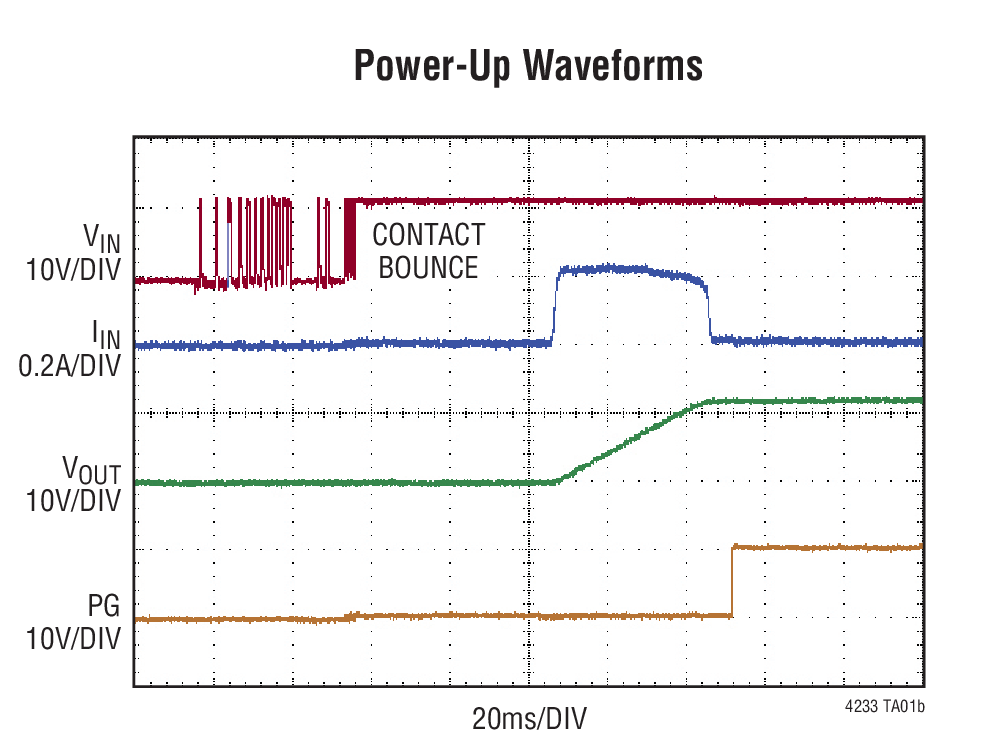

Product Details

The LTC4233 is an integrated solution for Hot Swap™ applications that allows a board to be safely inserted and removed from a live backplane. The part integrates a Hot Swap controller, power MOSFET and current sense resistor in a single package for small form factor applications. The MOSFET Safe Operating Area is production tested and guaranteed for the stresses in Hot Swap applications.

The LTC4233 provides separate inrush current control and an 11% accurate 11.2A current limit with output dependent foldback. The current limit threshold can be adjusted dynamically using the ISET pin. Additional features include a current monitor output that amplifies the sense resistor voltage for ground referenced current sensing and a MOSFET temperature monitor output. Thermal limit, overvoltage, undervoltage and power good monitoring are also provided. For a 20A pin compatible version see LTC4234.

Applications

  • High Availability Servers
  • Solid State Drives
  • Industrial
  • Network Routers and Switches

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

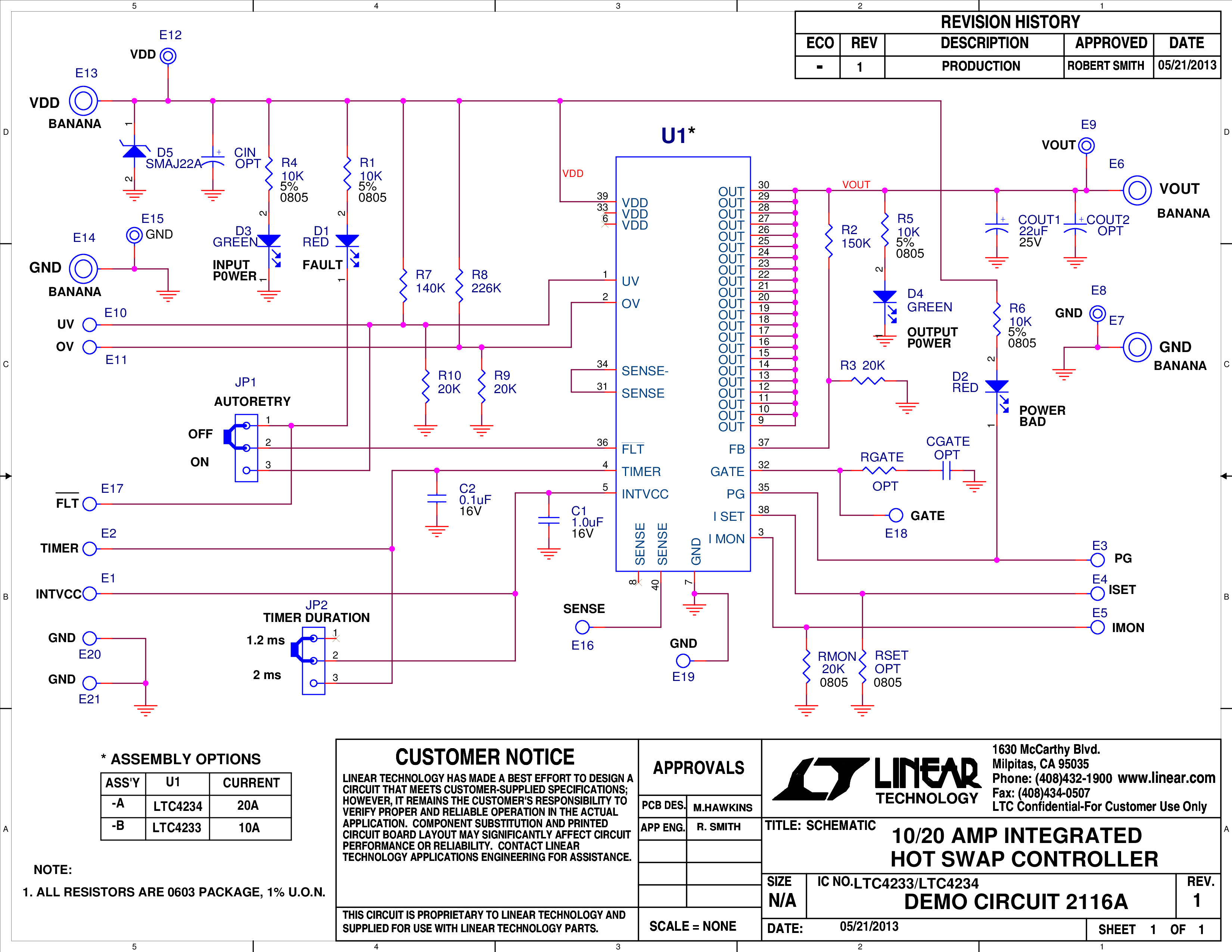

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Product Selector Card (1)
  • Videos (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC4233

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC4233CWHH#PBF Material Declaration Reliability Data 38-Lead Plastic QFN (5mm × 9mm)
    LTC4233CWHH#TRPBF Material Declaration Reliability Data 38-Lead Plastic QFN (5mm × 9mm)
    LTC4233HWHH#PBF Material Declaration Reliability Data 38-Lead Plastic QFN (5mm × 9mm)
    LTC4233HWHH#TRPBF Material Declaration Reliability Data 38-Lead Plastic QFN (5mm × 9mm)
    LTC4233IWHH#PBF Material Declaration Reliability Data 38-Lead Plastic QFN (5mm × 9mm)
    LTC4233IWHH#TRPBF Material Declaration Reliability Data 38-Lead Plastic QFN (5mm × 9mm)
    Wafer Fabrication Data R536 Reliability Data
