Overview

Features and Benefits

  • Allows Safe Board Insertion and Removal from a Live Backplane
  • Controls Three Supply Voltages from 1.7V to 16.5V with VCC1 ≥ VCC2 ≥ VCC3
  • Programmable Soft-Start with Inrush Current Limiting, No External Gate Capacitor Required
  • Faster Turn-Off Time with No Gate Capacitor
  • Dual Level Overcurrent Fault Protection
  • Programmable Overcurrent Response Time
  • Programmable Overvoltage Protection
  • Automatic Retry or Latched Mode Operation
  • Independent N-Channel FET High Side Drivers
  • User-Programmable Supply Voltage Power-Up Rate
  • FBn Pin Monitors VOUTn and Signals RESETn
  • Glitch Filter Eliminates Spurious RESETn Signals

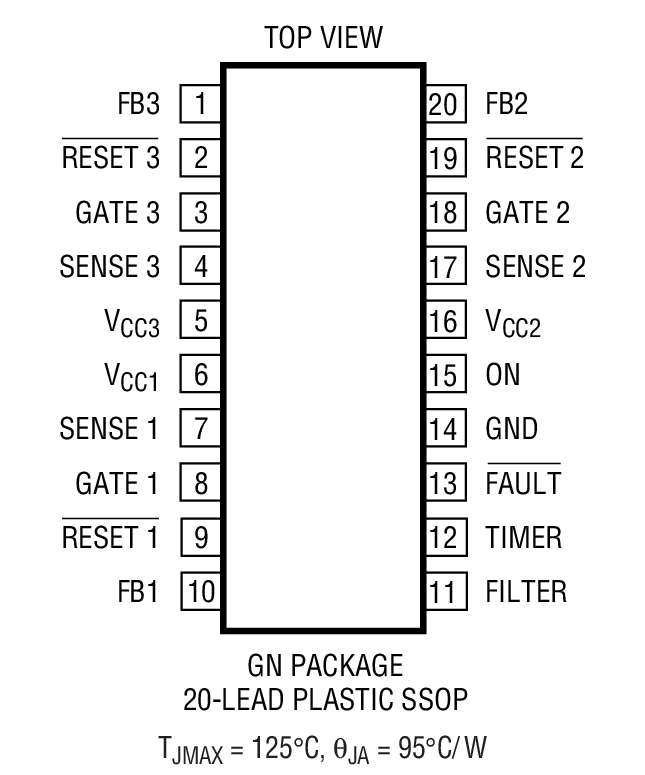

Product Details

The LTC4230 is a 3-channel Hot Swap™ controller that allows a board to be safely inserted and removed from a live backplane. Internal high side switch drivers control the gates of external N-channel MOSFETs for supply voltages ranging from 1.7V to 16.5V. The LTC4230 provides soft-start and inrush current limiting during the programmable start-up period.

On-chip current limit comparators provide dual level circuit breaker protection. The slow comparators trip at VCCn – 50mV and activate in 10µs or are programmed by an external filter capacitor. The fast comparators trip at VCCn – 150mV and typically respond in 500ns.

Each FBn pin monitors its own output supply voltage and signals its RESET pin. The ON pin turns the chip on and off and can be used for a reset function. The LTC4230 also provides additional functions including fault indication, autoretry or latchoff modes, programmable current limit response time based on the FAULT and FILTER pins’ functionality.

Applications

  • Electronic Circuit Breaker
  • Hot Board Insertion and Removal (Either On Backplane or On Removable Card)
  • Industrial High Side Switch/Circuit Breaker

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (1)

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Product Selector Card (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC4230

    Design Resources
