Overview
Features and Benefits
- Small Footprint
- 33mΩ MOSFET with RSENSE
- Available in Preset 12V and 5V Versions
- Adjustable, 10% Accurate Current Limit
- Current and Temperature Monitor Outputs
- Overtemperature Protection
- Adjustable Current Limit Timer Before Fault
- Power Good and Fault Outputs
- Adjustable Inrush Current Control
- Available in 16-Lead 5mm × 3mm DFN Packages
Product Details
The LTC4219 is an integrated solution for Hot Swap applications that allows a board to be safely inserted and removed from a live backplane. The part integrates a Hot Swap controller, power MOSFET and current sense resistor in a single package for small form factor applications.
The LTC4219 provides separate inrush current control and a 10% accurate 5.6A current limit with foldback current limiting. The current limit threshold can be adjusted dynamically using an external pin. Additional features include a current monitor output that amplifies the sense resistor voltage for ground referenced current sensing and a MOSFET temperature monitor output. Thermal limit and power good monitoring are also provided. The power good detection level and foldback current limit profile are internally preset for 5V (LTC4219-5) and 12V (LTC4219-12) applications.
Applications
- RAID Systems
- Server I/O Cards
- Industrial
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (2)
Documentation & Resources
-
R536 Reliability Data3/26/2018
-

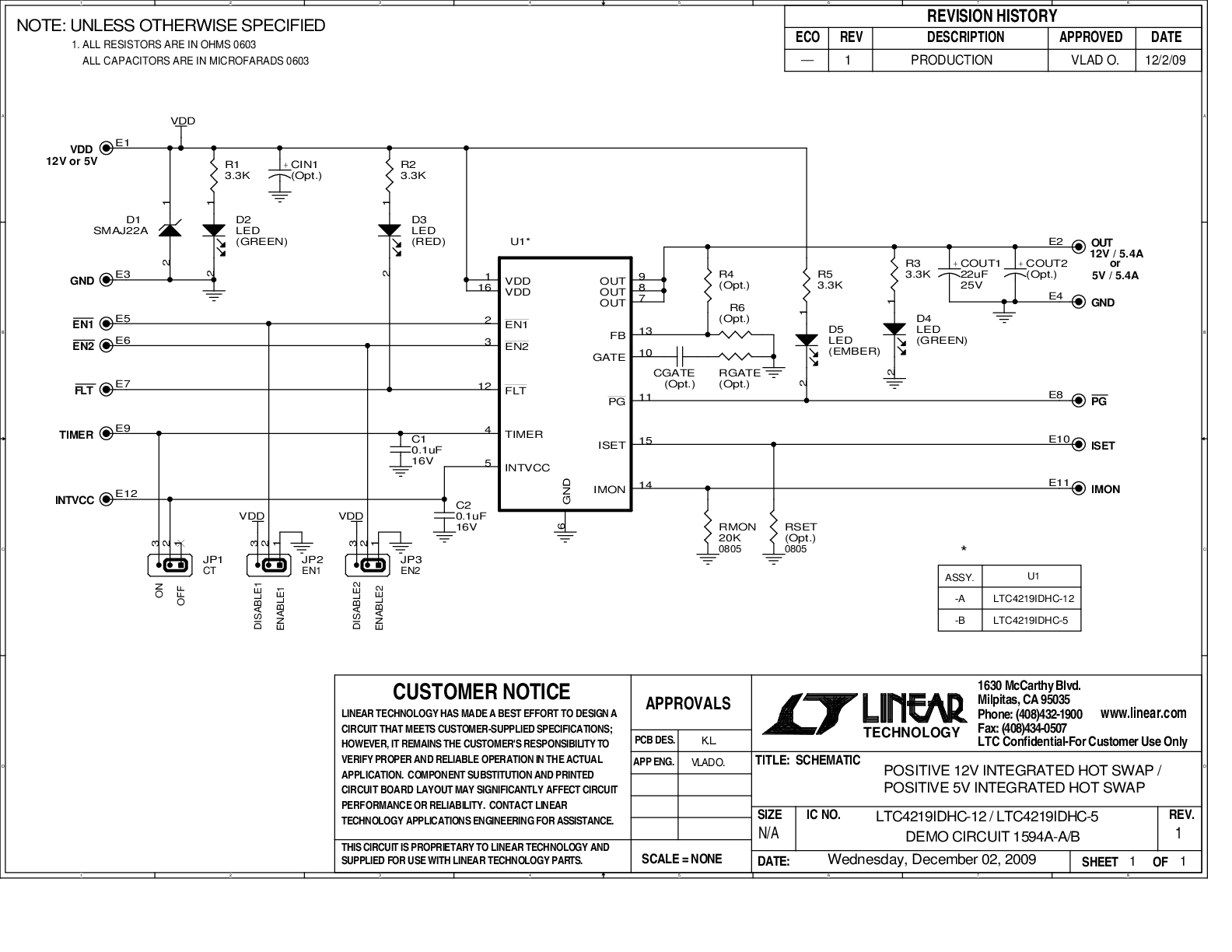

DC1594A - Demo Manual8/25/2010
-
Hot Swap Controllers8/2/2023
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
LTspice Simulations
Models for the following parts are available in LTspice:
LTC4219-12
LTC4219-5
Product Recommendations
LTC4219 Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC4219CDHC-12#PBF | Material Declaration | Reliability Data | 16-Lead DFN (5mm x 3mm w/ EP) | |
| LTC4219CDHC-12#TRPBF | Material Declaration | Reliability Data | 16-Lead DFN (5mm x 3mm w/ EP) | |
| LTC4219CDHC-5#PBF | Material Declaration | Reliability Data | 16-Lead DFN (5mm x 3mm w/ EP) | |
| LTC4219CDHC-5#TRPBF | Material Declaration | Reliability Data | 16-Lead DFN (5mm x 3mm w/ EP) | |
| LTC4219IDHC-12#PBF | Material Declaration | Reliability Data | 16-Lead DFN (5mm x 3mm w/ EP) | |
| LTC4219IDHC-12#TRPBF | Material Declaration | Reliability Data | 16-Lead DFN (5mm x 3mm w/ EP) | |
| LTC4219IDHC-5#PBF | Material Declaration | Reliability Data | 16-Lead DFN (5mm x 3mm w/ EP) | |
| LTC4219IDHC-5#TRPBF | Material Declaration | Reliability Data | 16-Lead DFN (5mm x 3mm w/ EP) | |
| Wafer Fabrication Data | R536 Reliability Data |
