LTC3896

RECOMMENDED FOR NEW DESIGNS

LTC3896

150V Low I_Q, Synchronous Inverting DC/DC Controller

RECOMMENDED FOR NEW DESIGNS

Part Details

High Efficiency 36V–72V to –48V/2A Inverting Regulator slide

Efficiency and Power Loss vs Load Current slide

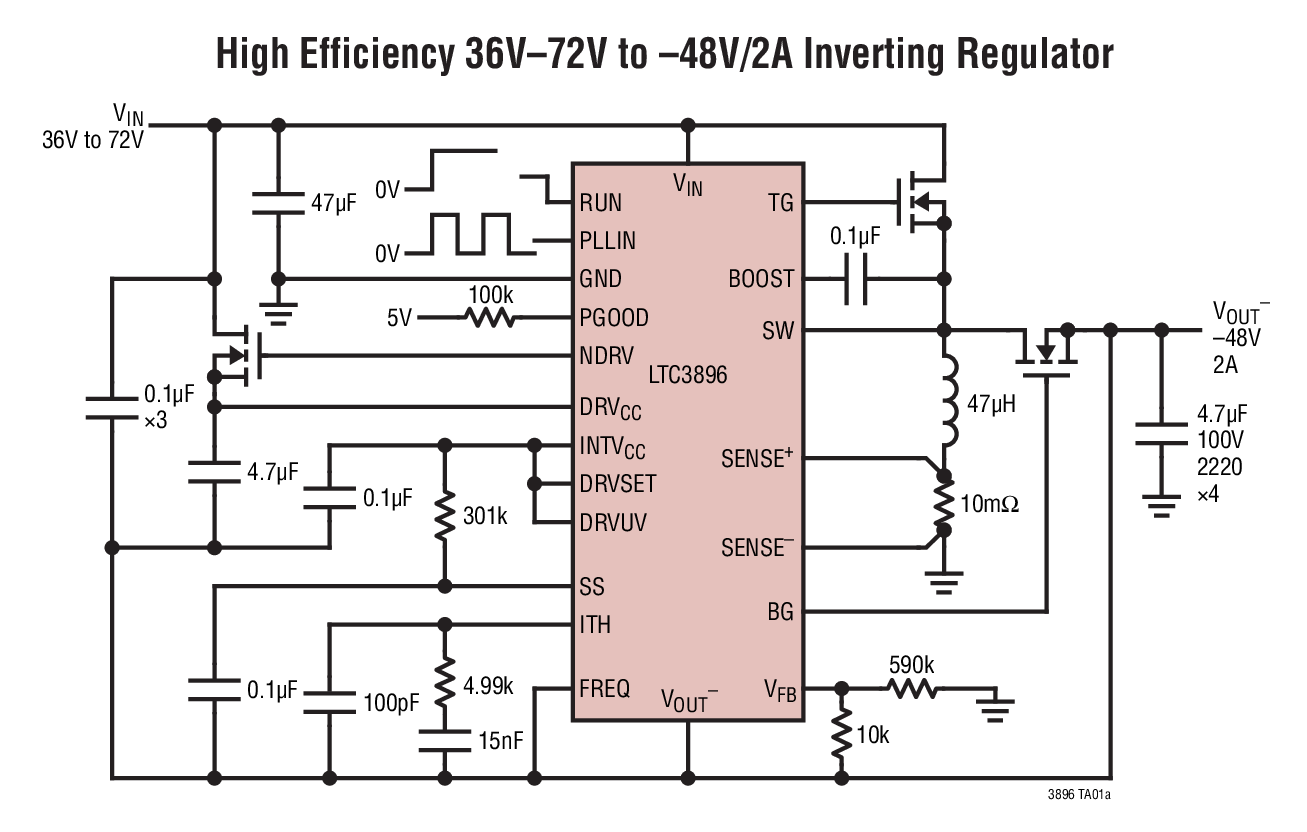

High Efficiency 36V–72V to –48V/2A Inverting Regulator

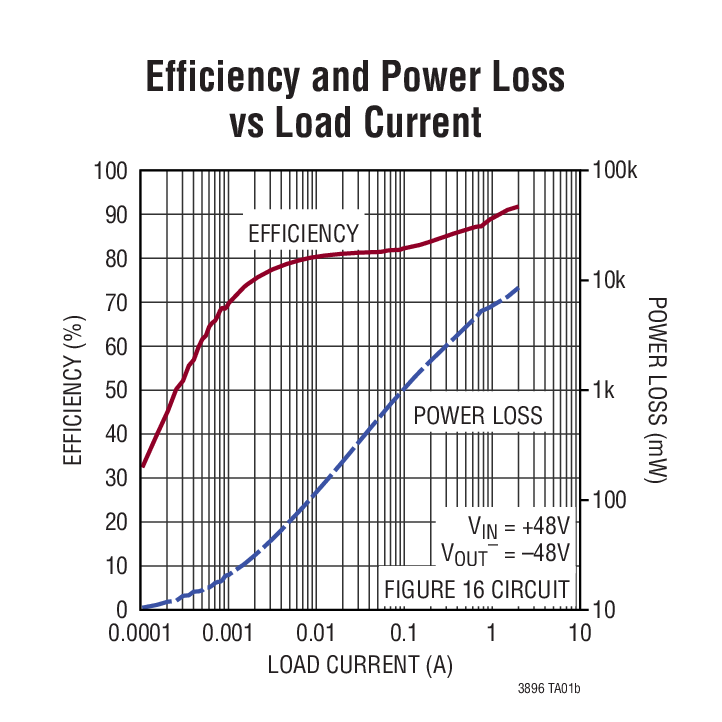

Efficiency and Power Loss vs Load Current

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 6

1ku List Price Starting From $5.61

Features

Wide V_IN + |V_OUT^–| Range: 4V to 140V (150V Abs Max)
Wide Output Voltage Range: –60V to –0.8V
Ground-Referenced Control / Interface Pins
Adjustable Gate Drive Level 5V to 10V (OPTI-DRIVE)
Integrated Bootstrap Diode
Low Operating I_Q: 40μA (Shutdown = 10μA)
Selectable Gate Drive UVLO Thresholds
Onboard LDO or External NMOS LDO for DRV_CC
EXTV_CC LDO Powers Drivers from Output
Phase-Lockable Frequency (75kHz to 850kHz)
Programmable Fixed Frequency (50kHz to 900kHz)
Selectable Continuous, Pulse-Skipping or Low Ripple Burst Mode^® Operation at Light Loads
Adjustable Burst Clamp and Current Limit
Power Good Output Voltage Monitor
Programmable Input Overvoltage Lockout

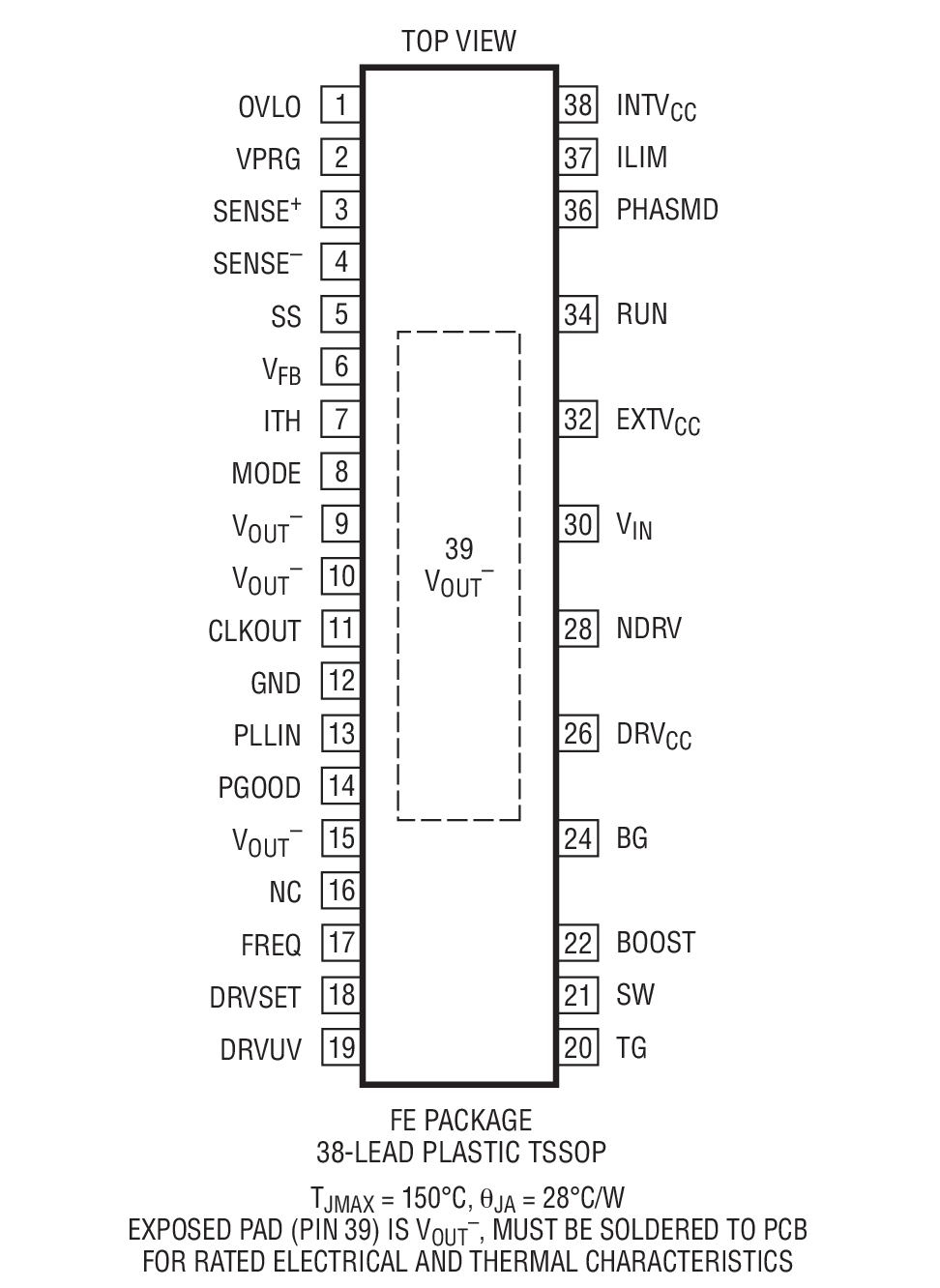

38-Lead TSSOP High Voltage Package

Additional Details

The LTC3896 is a high performance inverting DC/DC switching regulator controller that drives an all N-channel synchronous power MOSFET stage. It converts a wideranging positive input voltage source to a regulated negative output that can be as much as 60V below ground. The input can operate from a voltage as low as 4V and as high as 140V – |V_OUT^–|.

The LTC3896 contains true ground-referenced RUN, PLLIN and PGOOD pins, eliminating the need for external discrete level-shifting components to interface with the LTC3896.

A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. The low 40μA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP^® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3896 features a precision 0.8V reference and power good output indicator. The soft-start (SS) pin ramps the output voltage during start-up.
