Overview

Features and Benefits

  • No Current Sense Resistor Required
  • VOUT up to 60V
  • Constant Frequency 550kHz Operation
  • Internal Soft-Start and Optional External Soft-Start
  • Adjustable Current Limit
  • Pulse Skipping at Light Load
  • VIN Range: 2.75V to 9.8V
  • ±1.5% Voltage Reference Accuracy
  • Current Mode Operation for Excellent Line and Load Transient Response
  • Low Profile (1mm) SOT-23 and 2mm × 3mm DFN Packages

Product Details

The LTC3872-1 is a constant frequency current mode boost DC/DC controller that drives an N-channel power MOSFET and requires very few external components. The No RSENSE™ architecture eliminates the need for a sense resistor, improves efficiency and saves board space.

The LTC3872-1 provides excellent AC and DC load and line regulation with ±1.5% output voltage accuracy. It incorporates an undervoltage lockout feature that shuts down the device when the input voltage falls below 2.3V.

LTC3872-1 has the same functionality as the standard LTC3872 except that it has no frequency foldback in current limit.

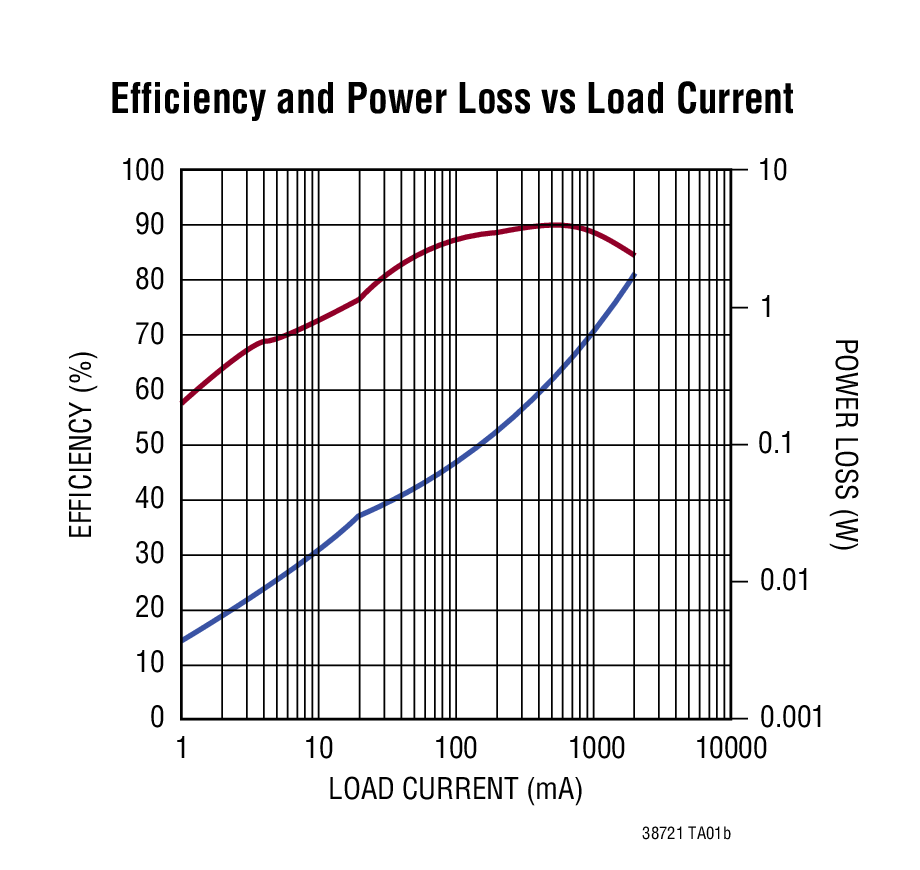

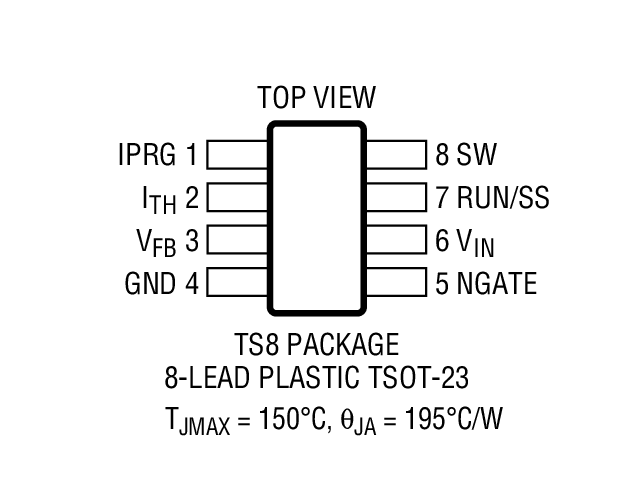

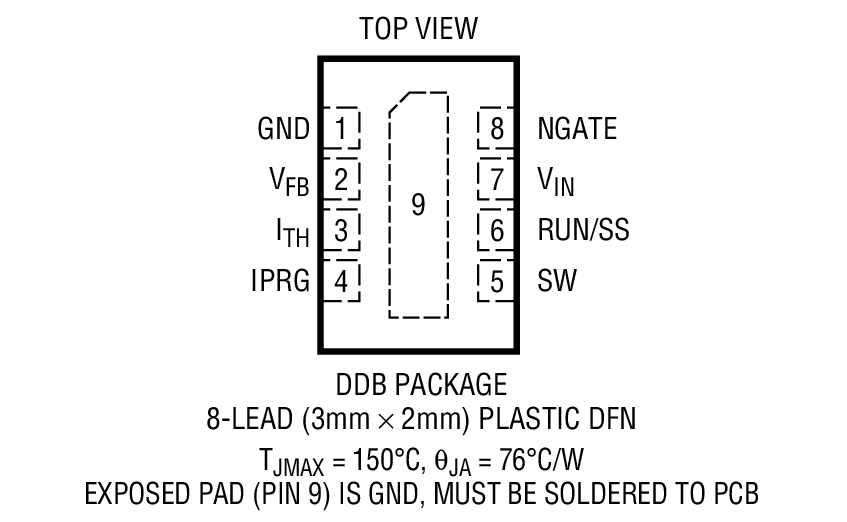

High switching frequency of 550kHz allows the use of a small inductor. The LTC3872-1 is available in an 8-lead low profile (1mm) ThinSOT™ package and 8-pin 2mm × 3mm DFN package.

LTC3872 LTC3872-1
Frequency Foldback In Current Limit Yes No

Applications

  • Telecom Power Supplies
  • 42V Automotive Systems
  • 24V Industrial Controls
  • IP Phone Power Supplies

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (1)

Documentation & Resources

  • View All (3)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC3872

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC3872EDDB-1#TRMPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
    LTC3872EDDB-1#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
    LTC3872ETS8-1#TRMPBF Material Declaration Reliability Data 8-Lead SOT-23
    LTC3872ETS8-1#TRPBF Material Declaration Reliability Data 8-Lead SOT-23
    LTC3872HDDB-1#TRMPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
    LTC3872HDDB-1#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
    LTC3872HTS8-1#TRMPBF Material Declaration Reliability Data 8-Lead SOT-23
    LTC3872HTS8-1#TRPBF Material Declaration Reliability Data 8-Lead SOT-23
    LTC3872IDDB-1#TRMPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
    LTC3872IDDB-1#TRPBF Material Declaration Reliability Data 8-Lead DFN (3mm x 2mm w/ EP)
    LTC3872ITS8-1#TRMPBF Material Declaration Reliability Data 8-Lead SOT-23
    LTC3872ITS8-1#TRPBF Material Declaration Reliability Data 8-Lead SOT-23
    Wafer Fabrication Data R421 Reliability Data
