  5. LTC3805-5

Data Sheet
JP
User Guides
2 View All

Overview

Features and Benefits

  • VIN and VOUT Limited Only by External Components
  • 4.5V Undervoltage Lockout Threshold
  • Adjustable Slope Compensation
  • Adjustable Overcurrent Protection with Automatic Restart
  • Adjustable Operating Frequency (70kHz to 700kHz) With One External Resistor
  • Synchronizable to an External Clock
  • ±1.5% Reference Accuracy
  • Only 100mV Current Sense Voltage Drop
  • RUN Pin with Precision Threshold and Adjustable Hysteresis
  • Programmable Soft-Start with One External Capacitor
  • Low Quiescent Current: 360μA
  • Small 10-Lead MSOP and 3mm × 3mm DFN

Product Details

The LTC3805-5 is a current mode DC/DC controller designed to drive an N-channel MOSFET in flyback, boost and SEPIC converter applications. Operating frequency and slope compensation can be programmed by external resistors. Programmable overcurrent sensing protects the converter from overload and short-circuit conditions. Soft-start can be programmed using an external capacitor and the soft-start capacitor also programs an automatic restart feature.

The LTC3805-5 provides ±1.5% output voltage accuracy and consumes only 360μA of quiescent current during normal operation and only 40μA during micropower startup. Using a 9.5V internal shunt regulator, the LTC3805-5 can be powered from a high VIN through a resistor or it can be powered directly from a low impedance DC voltage from 4.7V to 8.8V.

The LTC3805-5 is available in the 10-lead MSOP package and the 3mm × 3mm DFN package.


 Turn On Voltage
LTC3805 8.4V
LTC3805-5 4.5V

Applications

  • Automotive Power Supplies
  • Telecom Power Supplies
  • Isolated Electronic Equipment
  • Auxiliary/Housekeeping Power Supplies
  • Power over Ethernet

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

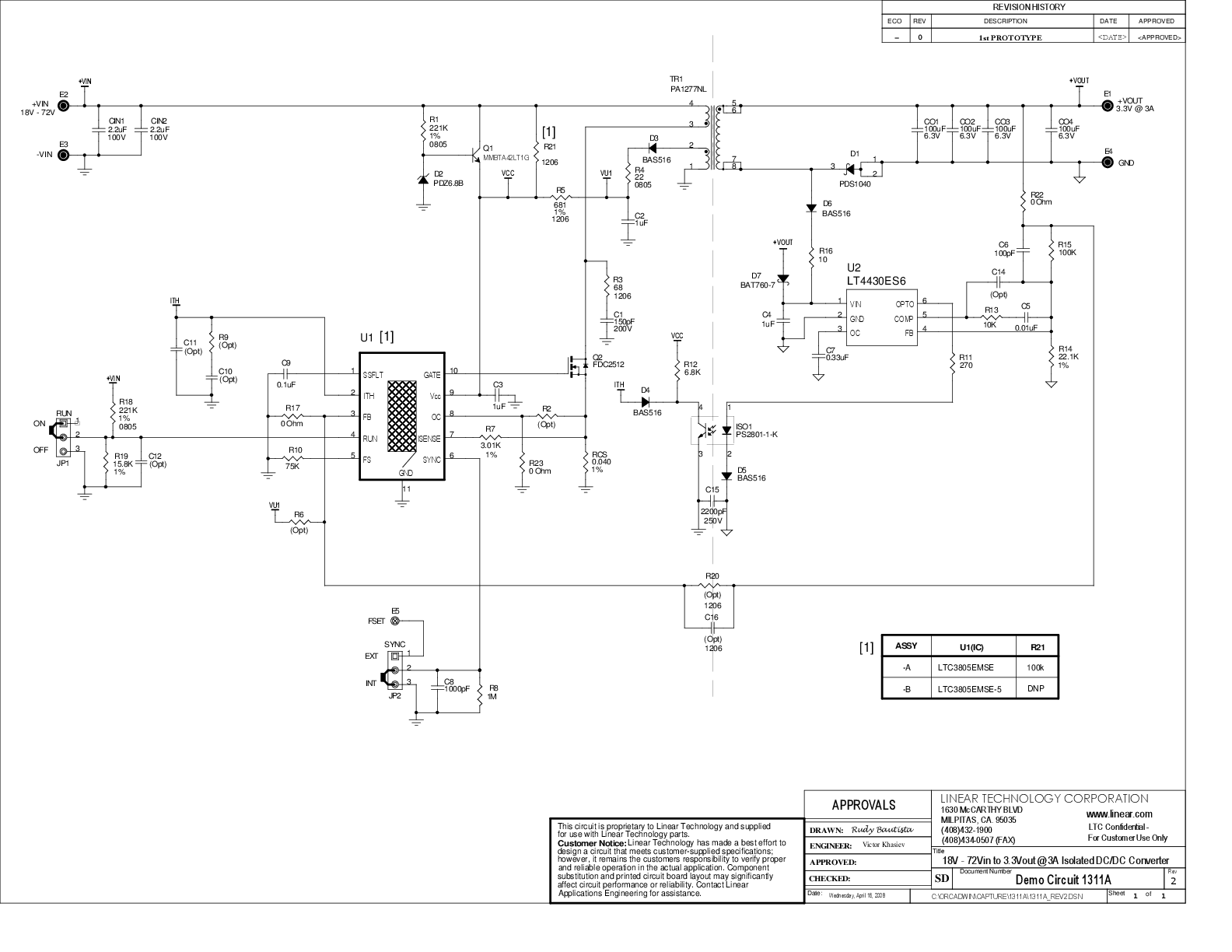

Evaluation Kits (2)

Documentation & Resources

  • View All (9)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (2)
  • Design Notes (2)
  • Press Releases (2)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

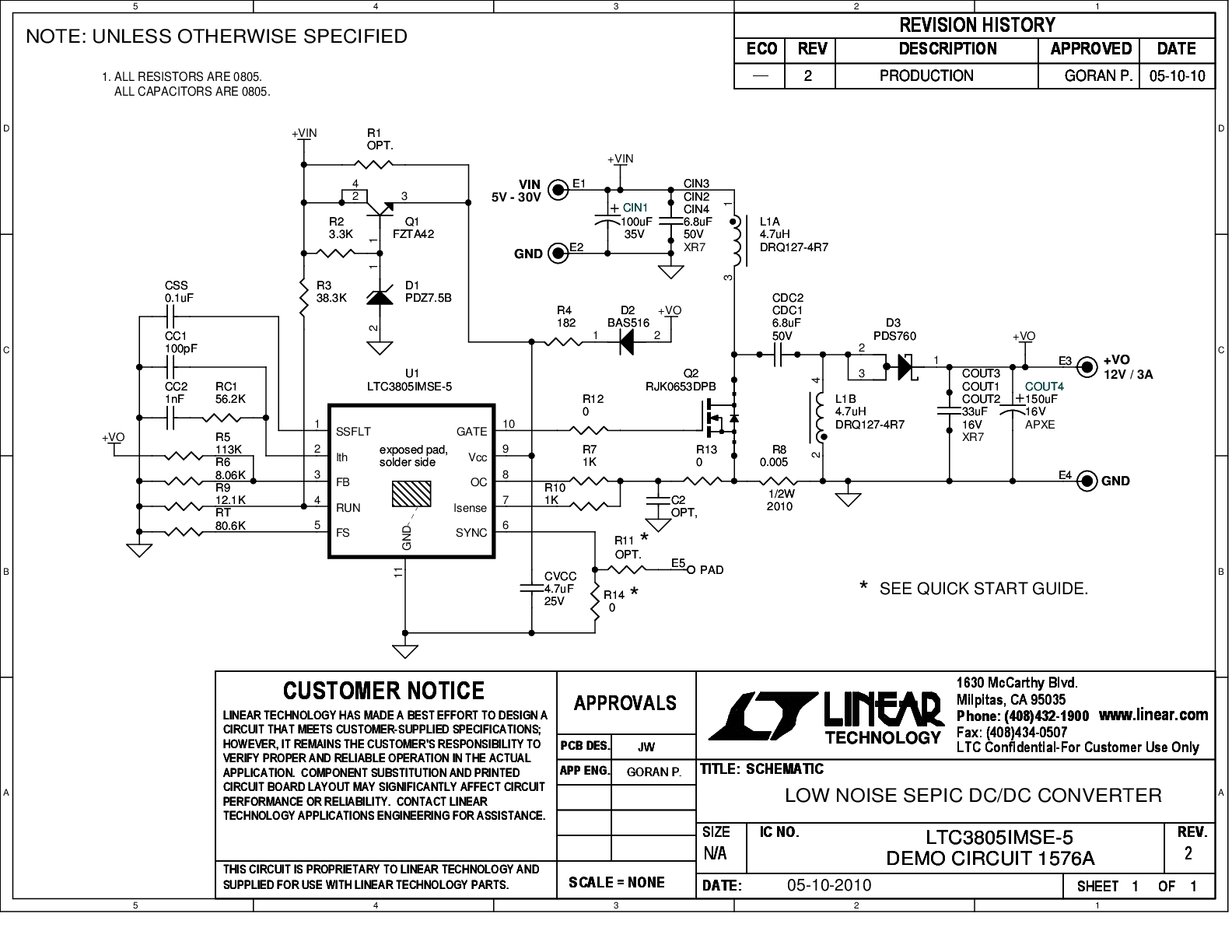

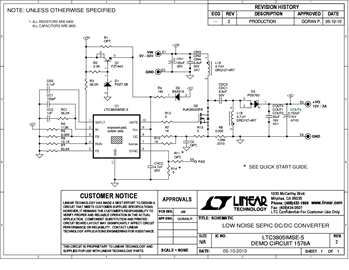

    LTC3805-5 & LT1797 Demo Circuit - Positive-to-Negative Cuk Converter (8-16V to -12V @ 3A)
