Overview

Features and Benefits

  • Single Inductor Architecture Allows VIN Above, Below or Equal to VOUT
  • 2.7V to 10V Input and Output Range
  • Up to 96% Efficiency
  • Up to 10A of Output Current
  • All N-channel MOSFETs, No RSENSE
  • True Output Disconnect During Shutdown
  • Programmable Current Limit and Soft-Start
  • Optional Short-Circuit Shutdown Timer
  • Output Overvoltage and Undervoltage Protection
  • Programmable Frequency: 100kHz to 1MHz
  • Selectable Burst Mode® Operation
  • Available in 24-Lead (4mm × 4mm) Exposed Pad QFN Package

Product Details

The LTC3785 is a high power synchronous buck-boost controller that drives all N-channel power MOSFETs from input voltages above, below and equal to the output voltage. With an input range of 2.7V to 10V, the LTC3785 is well suited for a wide variety of single or dual cell Li-Ion or multicell alkaline/NiMH applications.

The operating frequency can be programmed from 100kHz to 1MHz. The soft-start time and current limit are also programmable. The soft-start capacitor doubles as the fault timer which can program the IC to latch off or recycle after a determined off time. Burst Mode operation is user controlled and can be enabled by driving the MODE pin high.

Protection features include foldback current limit, shortcircuit and overvoltage protection.


Power Good
LTC3785 No
LTC3785-1 Yes

Applications

  • Palmtop Computers
  • Handheld Instruments
  • Wireless Modems
  • Cellular Telephones

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

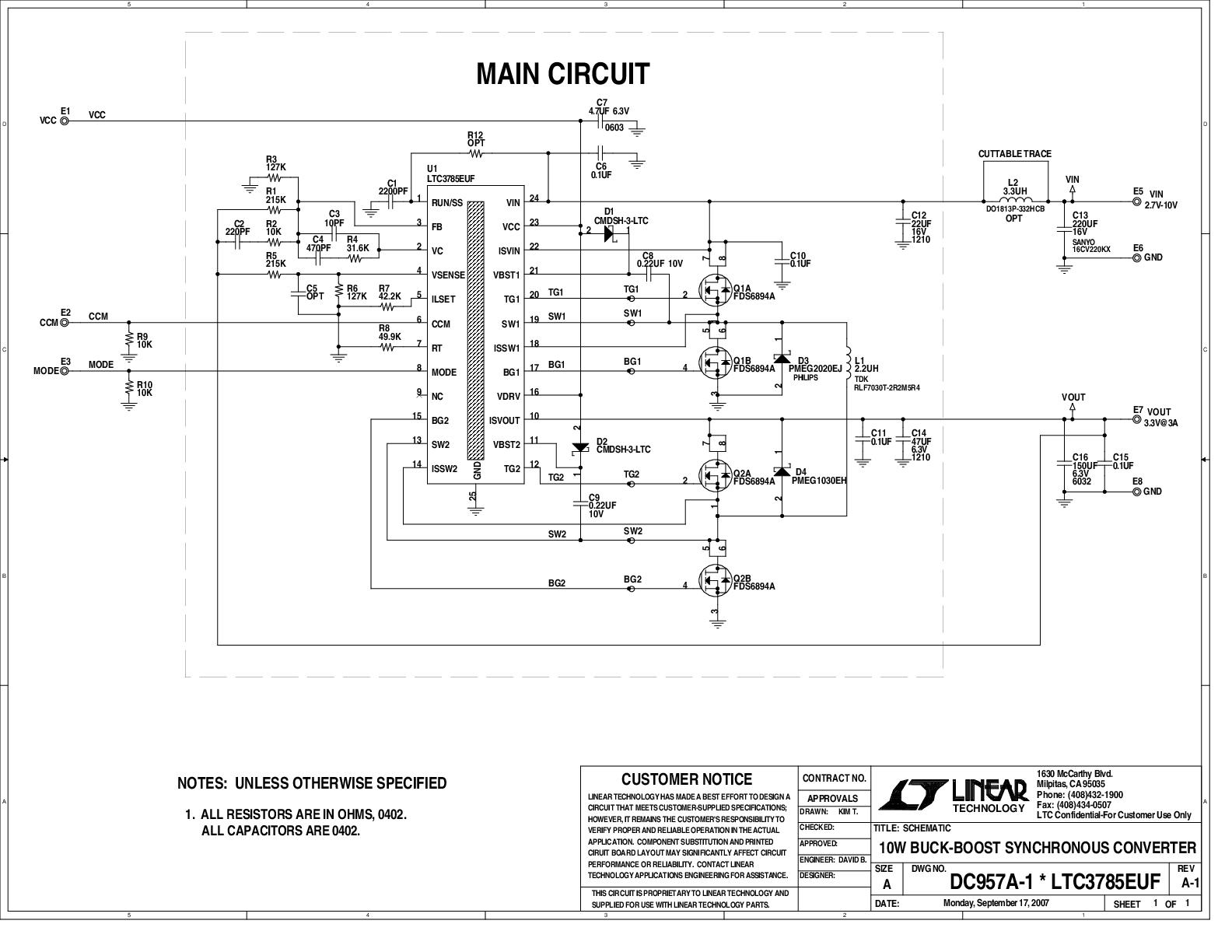

Evaluation Kits (1)

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

LTspice

Models for the following parts are available in LTspice:

LTC3785
LTC3785-1

Product Recommendations

LTC3785 Companion Parts

Recommended Related Parts

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LTC3785EUF#PBF Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
LTC3785EUF#TRPBF Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
LTC3785IUF#PBF Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
LTC3785IUF#TRPBF Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
Wafer Fabrication Data R533 Reliability Data
