LTC3649

60V, 4A Synchronous Step-Down Regulator with Rail-to-Rail Programmable Output

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Features
  • Wide VIN Range: 3.1V to 60V
  • Wide VOUT Range: 0V to (VIN – 0.5V)
  • Single Resistor VOUT Programming
  • Integrated 110mΩ Top N-Channel/50mΩ Bottom N-Channel MOSFETs
  • 95% Efficiency with 12VIN and 5VOUT
  • Regulated IQ: 440μA, Shutdown IQ: 18μA
  • Accurate Current Monitoring (±4%) without Sense Resistor
  • Accurate Resistor Programmable Frequency (300kHz to 3MHz) with ±50% Frequency Sync Range
  • Accurate Programmable Output Current
  • Input Voltage Regulation for MPPT Applications
  • ±0.8% Output Voltage Accuracy
  • Peak Current Mode Operation
  • Programmable Wire Drop Compensation
  • Burst Mode® Operation, Forced Continuous Mode
  • Internal Compensation and Programmable Soft-Start
  • Overtemperature Protection
  • Available in Thermally Enhanced 28-Lead (4mm × 5mm) QFN and TSSOP Packages
Additional Details
show more Icon

The LTC3649 is a high efficiency 60V, 4A synchronous monolithic step-down regulator. The regulator features a single resistor programmable output voltage, internal compensation and high efficiencies over a wide VOUT range.

The step-down regulator operates from an input voltage range of 3.1V to 60V and provides an adjustable rail-to-rail output range from (VIN – 0.5V) to ground while delivering up to 4A of output current. The switching frequency is also adjusted with an external resistor. A user-selectable mode input is provided to allow the user to trade off ripple noise for efficiency at light loads; Burst Mode operation provides the highest efficiency at light loads, while forced continuous mode provides low output ripple. The MODE/SYNC pin can also be used to allow the user to synchronize the switching frequency to an external clock.

The LTC3649 operates with a peak current mode architecture that allows for fast transient response with inherent cycle-to-cycle current limit protection. It also features programmable output current limit, current monitoring and input voltage regulation.

Applications

  • Industrial Applications
  • Automotive Applications

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3649EFE#PBF
  • HTML
  • HTML
LTC3649EFE#TRPBF
  • HTML
  • HTML
LTC3649EUFD#PBF
  • HTML
  • HTML
LTC3649EUFD#TRPBF
  • HTML
  • HTML
LTC3649IFE#PBF
  • HTML
  • HTML
LTC3649IFE#TRPBF
  • HTML
  • HTML
LTC3649IUFD#PBF
  • HTML
  • HTML
LTC3649IUFD#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3649EFE#PBF

PRODUCTION

LTC3649EFE#TRPBF

PRODUCTION

LTC3649IFE#PBF

PRODUCTION

LTC3649IFE#TRPBF

PRODUCTION

May 17, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LTC3649EFE#PBF

PRODUCTION

LTC3649EFE#TRPBF

PRODUCTION

LTC3649EUFD#PBF

PRODUCTION

LTC3649EUFD#TRPBF

PRODUCTION

LTC3649IFE#PBF

PRODUCTION

LTC3649IFE#TRPBF

PRODUCTION

LTC3649IUFD#PBF

PRODUCTION

LTC3649IUFD#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3649EFE#PBF

PRODUCTION

LTC3649EFE#TRPBF

PRODUCTION

LTC3649IFE#PBF

PRODUCTION

LTC3649IFE#TRPBF

PRODUCTION

May 17, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LTC3649EFE#PBF

PRODUCTION

LTC3649EFE#TRPBF

PRODUCTION

LTC3649EUFD#PBF

PRODUCTION

LTC3649EUFD#TRPBF

PRODUCTION

LTC3649IFE#PBF

PRODUCTION

LTC3649IFE#TRPBF

PRODUCTION

LTC3649IUFD#PBF

PRODUCTION

LTC3649IUFD#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC2113A

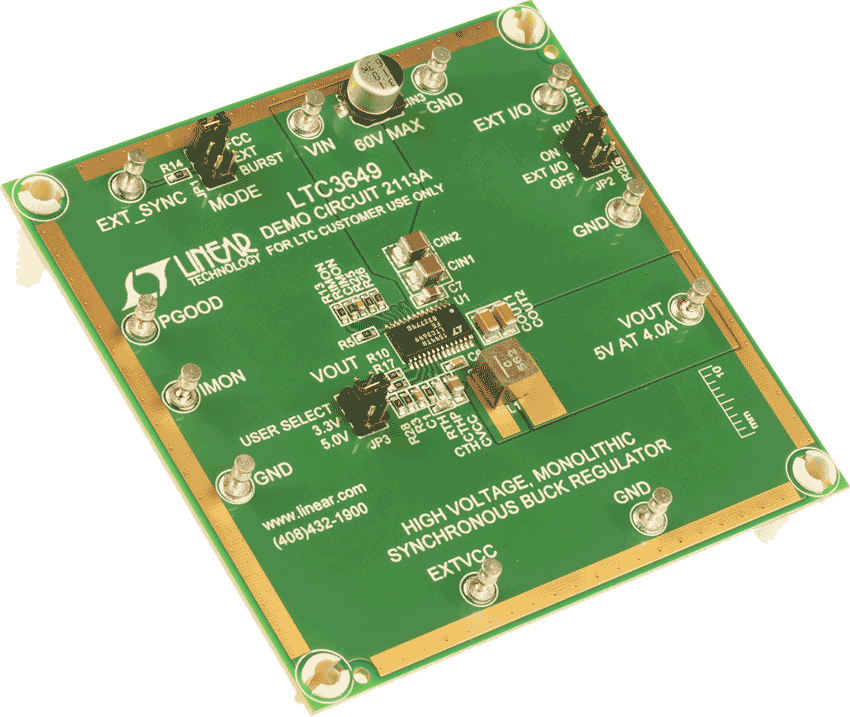

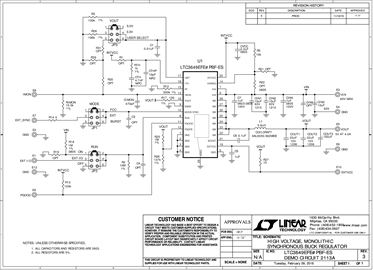

LTC3649 Demo Board | Synchronous Buck, 3.1V ≤ VIN ≤ 60V, VOUT = 3.3V/5V @ 4A

zoom

DC2113A

LTC3649 Demo Board | Synchronous Buck, 3.1V ≤ VIN ≤ 60V, VOUT = 3.3V/5V @ 4A

LTC3649 Demo Board | Synchronous Buck, 3.1V ≤ VIN ≤ 60V, VOUT = 3.3V/5V @ 4A

Product Detail

Demonstration circuit 2113A is a high input voltage, high efficiency synchronous monolithic buck converter featuring the LTC3649. The DC2113A has wide input voltage range from 3.1V up to 60V. The output voltage of the DC2113A can be set as to 3.3V or 5V. However, “USER SELECT” option of DC2113A allows output voltage to be as high as input voltage minus 0.5V, with certain modifications. DC2113A is capable of delivering up to 4A of output current. DC2113A supports three operation modes: Fixed-Frequency modulation, Burst Mode® operation and the user can synchronize it with external clock also. Fixed-Frequency mode of operation maximizes the output current, reduces output voltage ripple, and yields a low noise switching spectrum. Burst Mode operation employs a variable frequency switching algorithm that minimizes the no-load input quiescent current and improves efficiency at light loads.

reference details image

DC2112A

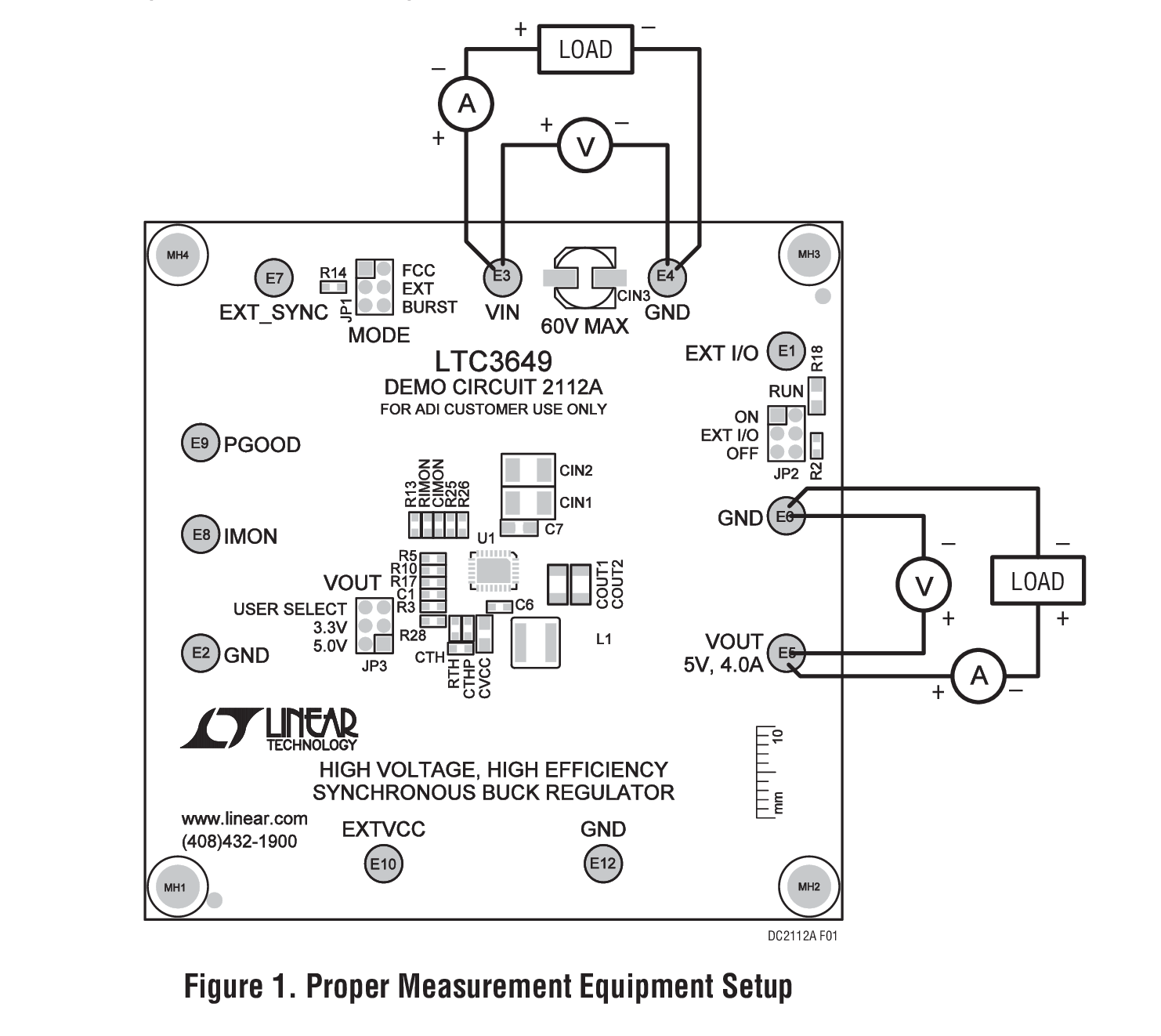

LTC3649EUFD Demo Board | 4V ≤ VIN ≤ 60V; VOUT = 3.3V or 5V @ 4A

zoom

DC2112A

LTC3649EUFD Demo Board | 4V ≤ VIN ≤ 60V; VOUT = 3.3V or 5V @ 4A

LTC3649EUFD Demo Board | 4V ≤ VIN ≤ 60V; VOUT = 3.3V or 5V @ 4A

Product Detail

Demonstration circuit 2112A is a high input voltage, high efficiency synchronous monolithic buck converter featuring the LTC3649 in a 28-lead UFD package. The DC2112A has wide input voltage range from 3.1V up to 60V. The output voltage of the DC2112A can be set as to 3.3V or 5V. However, the “USER SELECT” option of DC2112A allows output voltage to be as high as input voltage minus 0.5V, with certain modifications. DC2112A is capable of delivering up to 4A of output current. DC2112A supports three operation modes: Fixed-Frequency modulation and Burst Mode, user can synchronize it with an external clock also. Fixed-Frequency mode of operation maximizes the output current, reduces output voltage ripple, and yields a low noise switching spectrum. Burst Mode employs a variable frequency switching algorithm that minimizes the no-load input quiescent current and improves efficiency at light loads.
