LTC3536

1A Low Noise, Buck-Boost DC/DC Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price Starting From $3.31
Features
  • Regulated Output with Input Voltage Above, Below or Equal to the Output Voltage
  • 1.8V to 5.5V Input and Output Voltage Range
  • 1A Continuous Output Current for VIN ≥ 3V, VOUT = 3.3V
  • ±1% Output Voltage Accuracy
  • Low Noise Buck-Boost Architecture
  • Up to 95% Efficiency
  • Programmable Frequency from 300kHz to 2MHz
  • Synchronizable Oscillator
  • Burst Mode® Operation: 32μA IQ
  • Internal 1ms Soft-Start
  • Output Disconnect in Shutdown
  • Shutdown Current: 1μA
  • Short-Circuit Protection
  • Small Thermally Enhanced 12-Pin MSOP and 10-Pin (3mm × 3mm) DFN Packages
Additional Details
show more Icon

The LTC3536 is an extended VIN range, fixed frequency, synchronous buck-boost DC/DC converter that operates from input voltages above, below or equal to the regulated output voltage. The topology incorporated in the LTC3536 provides low noise operation, making it ideal for RF and precision measurement applications.

The device can produce up to 1A of continuous output current, and it includes two N-channel and two P-channel MOSFET switches. Switching frequencies up to 2MHz can be programmed with an external resistor and the oscillator can be synchronized to an external clock. Quiescent current is only 32μA in Burst Mode operation, maximizing battery life in portable applications. Burst Mode operation is user controlled and improves efficiency at light loads.

Other features include a 1μA shutdown current, internal soft-start, overtemperature protection and current limit. The LTC3536 is available in 12-pin thermally enhanced MSOP and 10-pin (3mm × 3mm) DFN packages.

Applications

  • Wireless Inventory Terminals
  • Handheld Medical Instruments
  • Wireless Locators, Microphones
  • Supercapacitor Backup Power Supply
Part Models 8
1ku List Price Starting From $3.31

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3536EDD#PBF
  • HTML
  • HTML
LTC3536EDD#TRPBF
  • HTML
  • HTML
LTC3536EMSE#PBF
  • HTML
  • HTML
LTC3536EMSE#TRPBF
  • HTML
  • HTML
LTC3536IDD#PBF
  • HTML
  • HTML
LTC3536IDD#TRPBF
  • HTML
  • HTML
LTC3536IMSE#PBF
  • HTML
  • HTML
LTC3536IMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3536EMSE#PBF

PRODUCTION

LTC3536EMSE#TRPBF

PRODUCTION

LTC3536IMSE#PBF

PRODUCTION

LTC3536IMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3536EMSE#PBF

PRODUCTION

LTC3536EMSE#TRPBF

PRODUCTION

LTC3536IMSE#PBF

PRODUCTION

LTC3536IMSE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

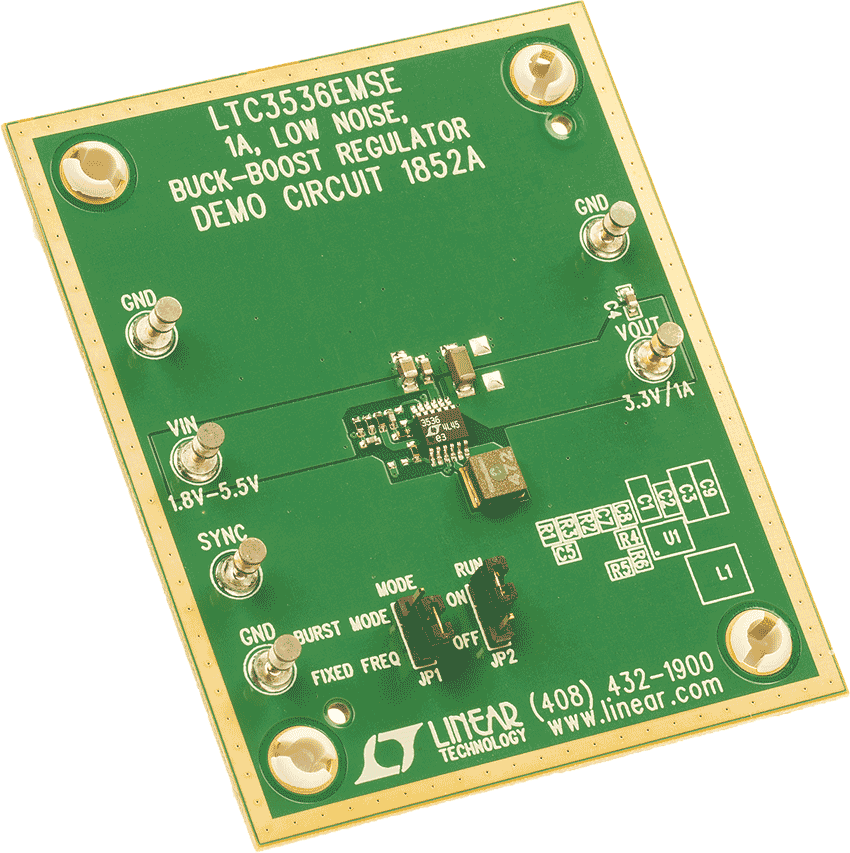

DC1852A

LTC3536EMSE (MSOP) Demo Board | 1.8V ≤ VIN ≤ 5.5V, VOUT = 3.3V @ 1A

zoom

DC1852A

LTC3536EMSE (MSOP) Demo Board | 1.8V ≤ VIN ≤ 5.5V, VOUT = 3.3V @ 1A

LTC3536EMSE (MSOP) Demo Board | 1.8V ≤ VIN ≤ 5.5V, VOUT = 3.3V @ 1A

Product Detail

Demonstration circuit 1852A is a combined step-up and step-down DC/DC converter, using the LTC3536 monolithic synchronous buck-boost regulator in the MSOP package. The DC1852A has wide input voltage range of 1.8V to 5.5V and is capable of delivering up to 1A of output current. The output voltage of the DC1852A can be set as low as 1.8V and can go as high as 5.5V. DC1852A supports two operation modes: fixed-frequency pulse-width modulation (PWM) and Burst Mode® operation.





reference details image

DC1797A

LTC3536EDD (DFN) Demo Board | 1.8V ≤ VIN ≤ 5.5V, VOUT = 3.3V @ 1A

zoom

DC1797A

LTC3536EDD (DFN) Demo Board | 1.8V ≤ VIN ≤ 5.5V, VOUT = 3.3V @ 1A

LTC3536EDD (DFN) Demo Board | 1.8V ≤ VIN ≤ 5.5V, VOUT = 3.3V @ 1A

Product Detail

Demonstration circuit 1797A is a combined step-up and step-down DC/DC converter using the LTC3536 monolithic synchronous buck-boost regulator in the 3x3 DFN package. The DC1797A has wide input voltage range of 1.8V to 5.5V, and is capable of delivering up to 1A of output current. The output voltage of the DC1797A can be set as low as 1.8V and can go as high as 5.5V. The DC1797A supports two operational modes: fixed-frequency pulse-width modulation (PWM) and Burst Mode® operation.
