Features and Benefits
- Delivers 3.3V at 200mA from a Single Alkaline/NiMH Cell or 3.3V at 400mA from Two Cells
- VIN Start-Up Voltage: 700mV
- 0.50V to 5.5V Input Range
- 1.6V to 5.25V VOUT Range

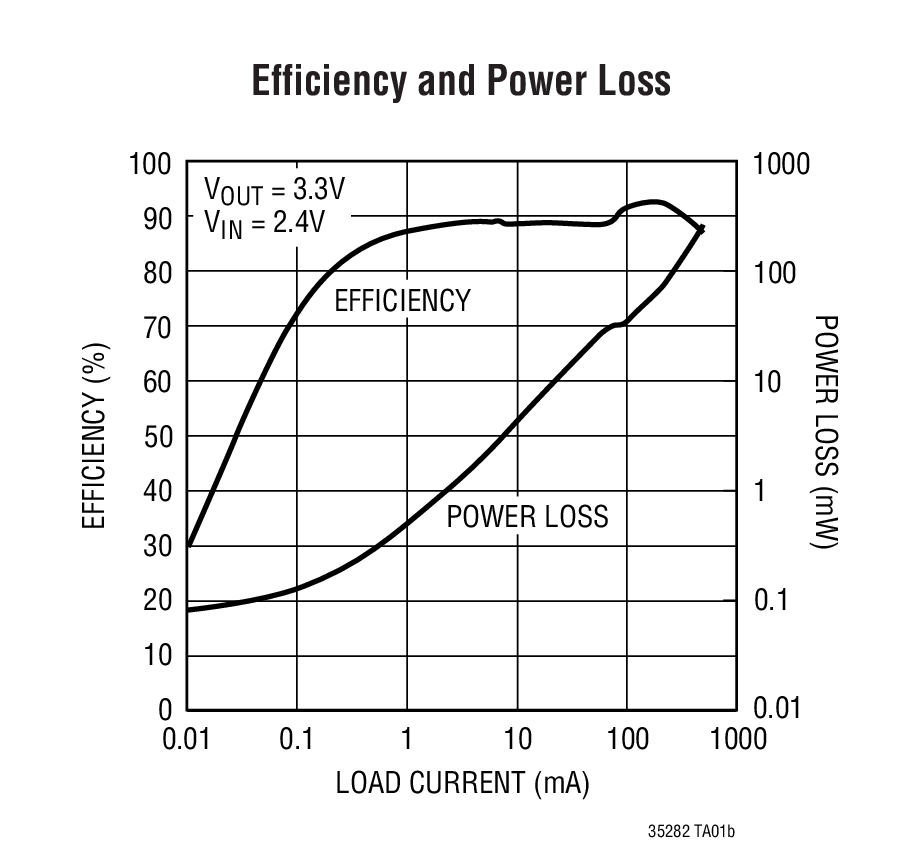

- Up to 94% Efficiency
- Output Disconnect
- 2MHz Fixed Frequency Operation
- VIN > VOUT Operation
- Integrated Soft-Start
- Current Mode Control with Internal Compensation
- Burst Mode® Operation with 12μA Quiescent Current
- Internal Synchronous Rectifier
- Logic Controlled Shutdown: <1μA
- Anti-Ringing Control
- Low Profile (2mm × 3mm × 0.75mm) DFN Package
The LTC3528-2 is a synchronous, fixed frequency step-up DC/DC converter with output disconnect. High efficiency synchronous rectification, in addition to a 700mV startup voltage and operation down to 500mV once started, provides longer run-time for single or multiple cell battery-powered products.
A switching frequency of 2MHz minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. The current mode PWM is internally compensated, simplifying the design process. The LTC3528-2 enters Burst Mode operation at light loads. Anti-ringing circuitry reduces EMI by damping the inductor in discontinuous mode. Additional features include a low shutdown current, open-drain power good output, short-circuit protection and thermal overload protection.

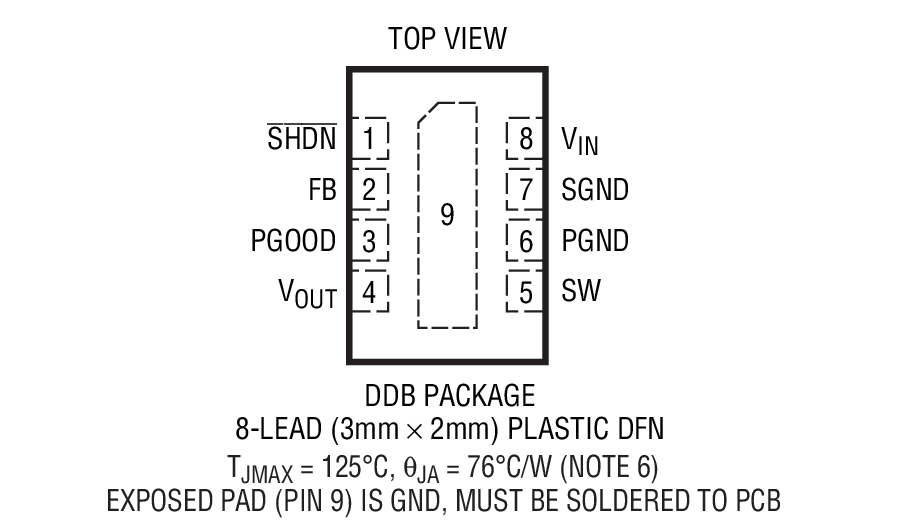

The LTC3528-2 is offered in an 8-lead 2mm × 3mm × 0.75mm DFN package.
- Medical Instruments
- Noise Canceling Headphones
- Wireless Mice
- Bluetooth Headsets
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Documentation & Resources
R457 Reliability Data3/26/201865 K
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LTC3528EDDB-2#TRMPBF||Material Declaration||Reliability Data||8-Lead DFN (3mm x 2mm w/ EP)|
|LTC3528EDDB-2#TRPBF||Material Declaration||Reliability Data||8-Lead DFN (3mm x 2mm w/ EP)|
|Wafer Fabrication Data||R457 Reliability Data|
