LTC3335

Nanopower Buck-Boost DC/DC with Integrated Coulomb Counter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Linduino LTC3335 - DC2343A.ino Download 17.00KB Linduino LTC3335 - Linduino.CPP File Download 20.00KB Linduino LTC3335_Config.h Download 9.00KB Linduino LTC3335_Correction_Tables.cpp Download 37.00KB Linduino LTC3335 - Linduino Header File Download 15.00KB
Part Models 4
1ku List Price Starting From $4.01
Features
  • 680nA Input Quiescent Current (Output in Regulation at No Load)
  • 1.8V to 5.5V Input Operating Range
  • Selectable Output Voltages of 1.8V, 2.5V, 2.8V, 3V, 3.3V, 3.6V, 4.5V, 5V
  • Integrated Coulomb Counter Measures Accumulated Battery Discharge
  • ±5% Battery Discharge Measurement Accuracy
  • Programmable Peak Input Current of 5mA, 10mA, 15mA, 25mA, 50mA, 100mA, 150mA, 250mA
  • Up to 50mA of Output Current
  • Up to 90% Efficiency
  • Programmable Coulomb Counter Prescaler for Wide Range of Battery Sizes
  • Programmable Discharge Alarm Threshold
  • I2C Interface
  • Low Profile (0.75mm) 20-Lead (3mm × 4mm) QFN Package
Additional Details
show more Icon

The LTC3335 is a high efficiency, low quiescent current (680nA) buck-boost DC/DC converter with an integrated precision coulomb counter which monitors accumulated battery discharge in long life battery powered applications. The buck-boost can operate down to 1.8V on its input and provides eight pin-selectable output voltages with up to 50mA of output current.

The coulomb counter stores the accumulated battery discharge in an internal register accessible via an I2C interface. The LTC3335 features a programmable discharge alarm threshold. When the threshold is reached, an interrupt is generated at the IRQ pin.

To accommodate a wide range of battery types and sizes, the peak input current can be selected from as low as 5mA to as high as 250mA and the full-scale coulomb counter has a programmable range of 32,768:1.

The LTC3335 is available in a 3mm × 4mm QFN-20 package.

Applications

  • Long Lifetime Primary Cell Battery Applications
  • Wireless Sensors
  • Remote Monitors
  • Dust Networks® SmartMesh® Applications
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Linduino LTC3335 - DC2343A.ino Download 17.00KB Linduino LTC3335 - Linduino.CPP File Download 20.00KB Linduino LTC3335_Config.h Download 9.00KB Linduino LTC3335_Correction_Tables.cpp Download 37.00KB Linduino LTC3335 - Linduino Header File Download 15.00KB
Part Models 4
1ku List Price Starting From $4.01
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3335

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Technical Articles
  • Data Sheet
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/28/2015
English

LTC3335: Nanopower Buck-Boost DC/DC with Integrated Coulomb Counter Data Sheet

Open PDF File

redirect
525.00K
download

Download PDF

PDF Vector

PDF

UPDATED 09/20/2016
Japanese

LTC3335: クーロン・カウンタを内蔵したナノパワー昇降圧DC/DCコンバータ データシート

Open PDF File

redirect
1.00M
download

Download PDF

Technical Articles

4

PDF Vector

PDF

UPDATED 07/11/2016
English
Nanopower IoT Power Supply Accurately Monitors Battery Discharge redirect icon

1.00M

download

Download PDF

PDF Vector

PDF

UPDATED 08/18/2016
English
Efficient Low Power Conversion ICs Enhance Wearables, Better the Human Condition redirect icon

222.00K

download

Download PDF

PDF Vector

PDF

UPDATED 07/11/2016
English
Know a Battery’s State-of-Charge By Counting Coulombs redirect icon

404.00K

download

Download PDF

PDF Vector

PDF

UPDATED 01/14/2016
Chinese
通过计算库伦量确定电池充电状态 redirect icon

844.00K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 10/26/2016
English
DC2343A - Demo Manual redirect icon

1.00M

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3335EUDC#PBF 20-Lead QFN (3mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3335EUDC#TRPBF 20-Lead QFN (3mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3335IUDC#PBF 20-Lead QFN (3mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3335IUDC#TRPBF 20-Lead QFN (3mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Parts Product Life Cycle Description

Pushbutton Controllers1
LTC2956
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Wake-Up Timer with Pushbutton Control

Parts Product Life Cycle Description
LTC3129
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

15V, 200mA Synchronous Buck-Boost DC/DC Converter with 1.3μA Quiescent Current

Evaluation Kits 1

reference details image

DC2343A

LTC3335 Demo Board | 680nA Iq Buck-Boost with Coulomb Counter, 1.8V ≤ VIN ≤ 5.5V, VOUT = 1.8V to 5V @ 15mA

zoom

DC2343A

LTC3335 Demo Board | 680nA Iq Buck-Boost with Coulomb Counter, 1.8V ≤ VIN ≤ 5.5V, VOUT = 1.8V to 5V @ 15mA

download icon

Download

 print icon

Print
DC2343A
LTC3335 Demo Board | 680nA Iq Buck-Boost with Coulomb Counter, 1.8V ≤ VIN ≤ 5.5V, VOUT = 1.8V to 5V @ 15mA
Buy Now View Details

Product Detail

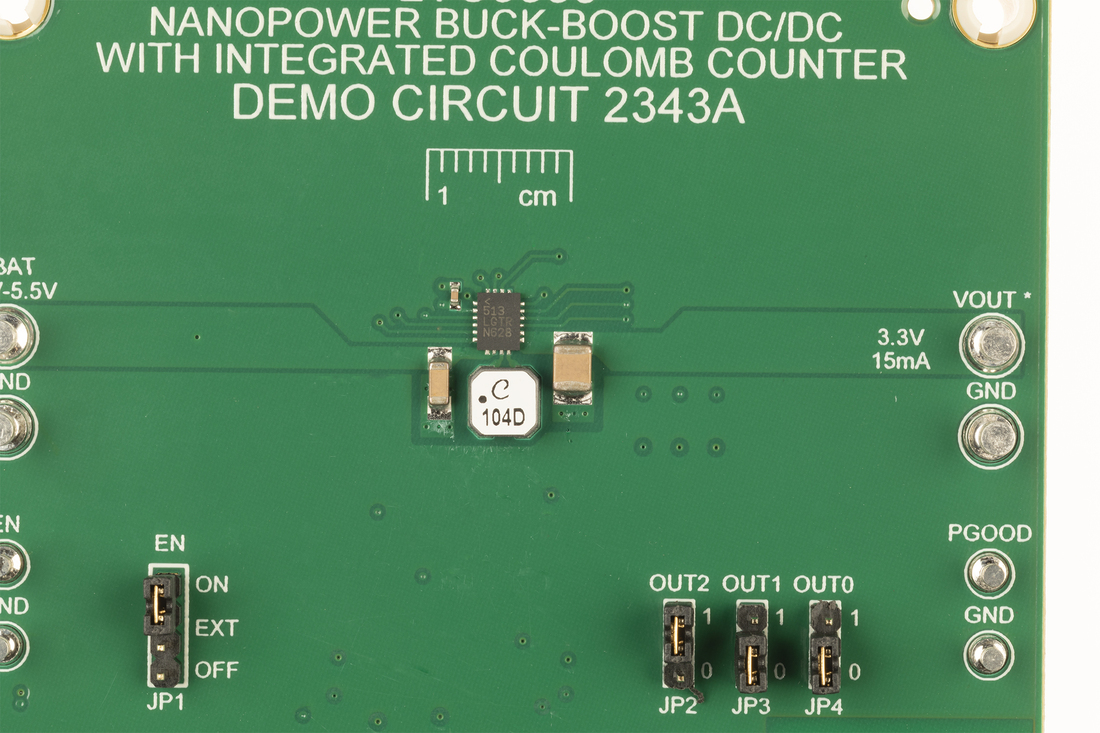

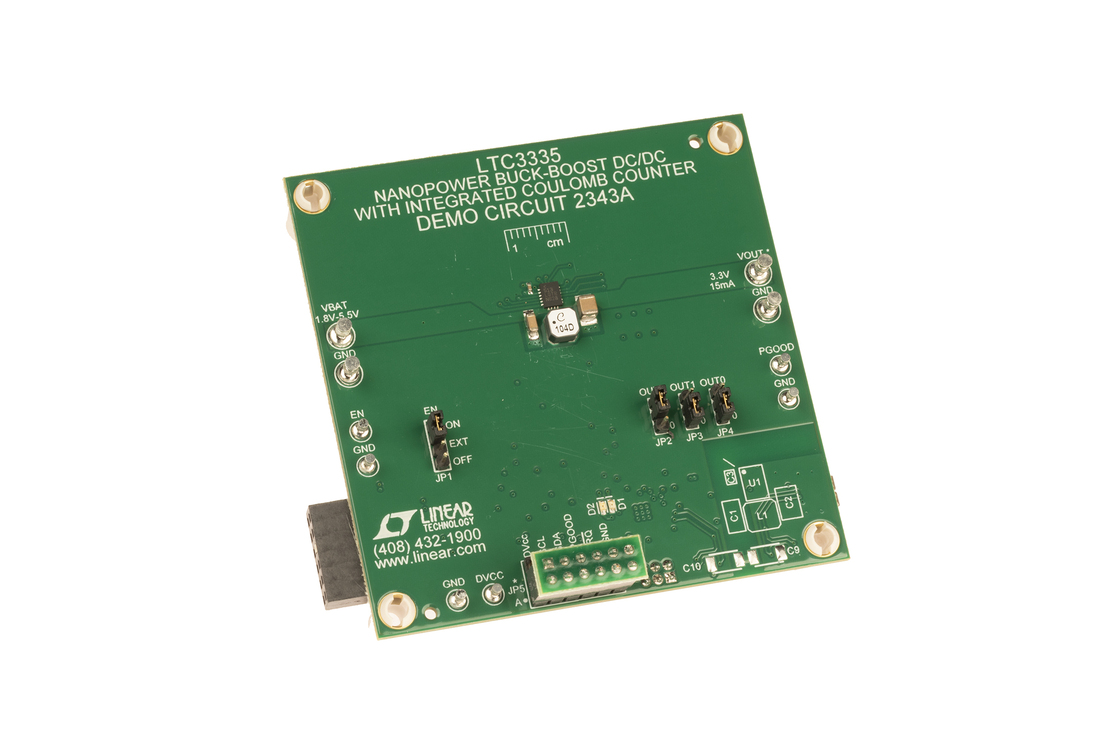

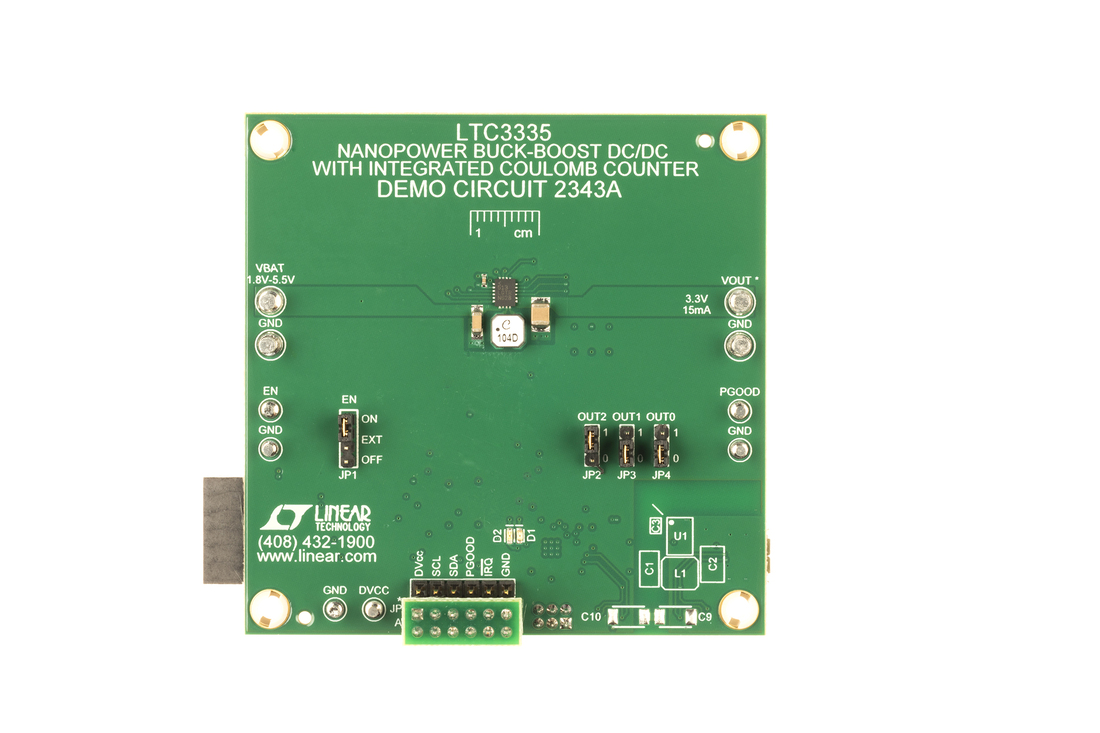

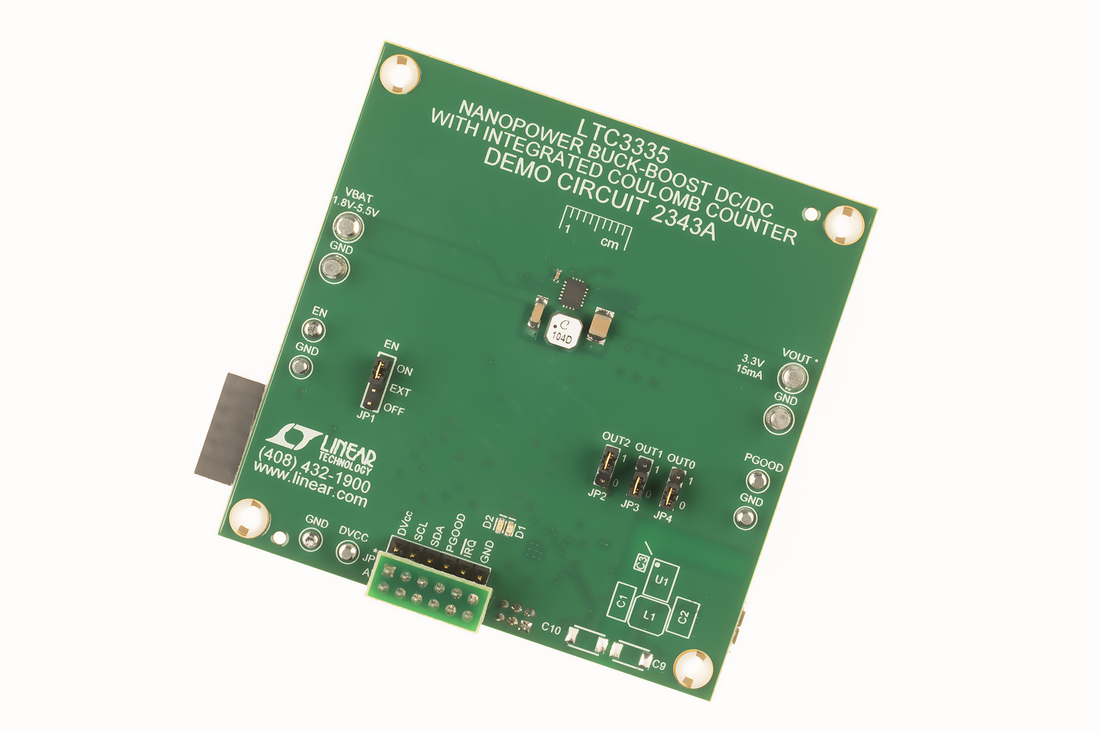

Demonstration circuit DC2343A is a complete system level solution for a nanopower buck-boost DC/DC with integrated coulomb counter. The DC2343A contains a PIC16F1459 embedded processor for communication to the PC over USB and the LTC3335 via its I2C port. The GUI is capable of reading and writing all the control registers on the LTC3335 as well as displaying and resetting all its alarm registers. The firmware and software for the embedded system and the GUI are available at the LTC3335 solutions page. The DC2343A uses two analog-to-digital converter channels to sample the battery and output voltages. The voltage samples improve the functionality of the GUI, and allow optimal software correction to the measured coulombs. By adding the software correction the first order known errors are compensated for over the operating range and the resultant coulomb count is accurate to within 3%.

Resources

pdf icon

ZIP

DC2343A - Design Files Download

6.00M

pdf icon

PDF

DC2343A - Demo Manual Download

1.00M

pdf icon

ZIP

DC2343A - Software and Users Guide Download

3.00M

pdf icon

PDF

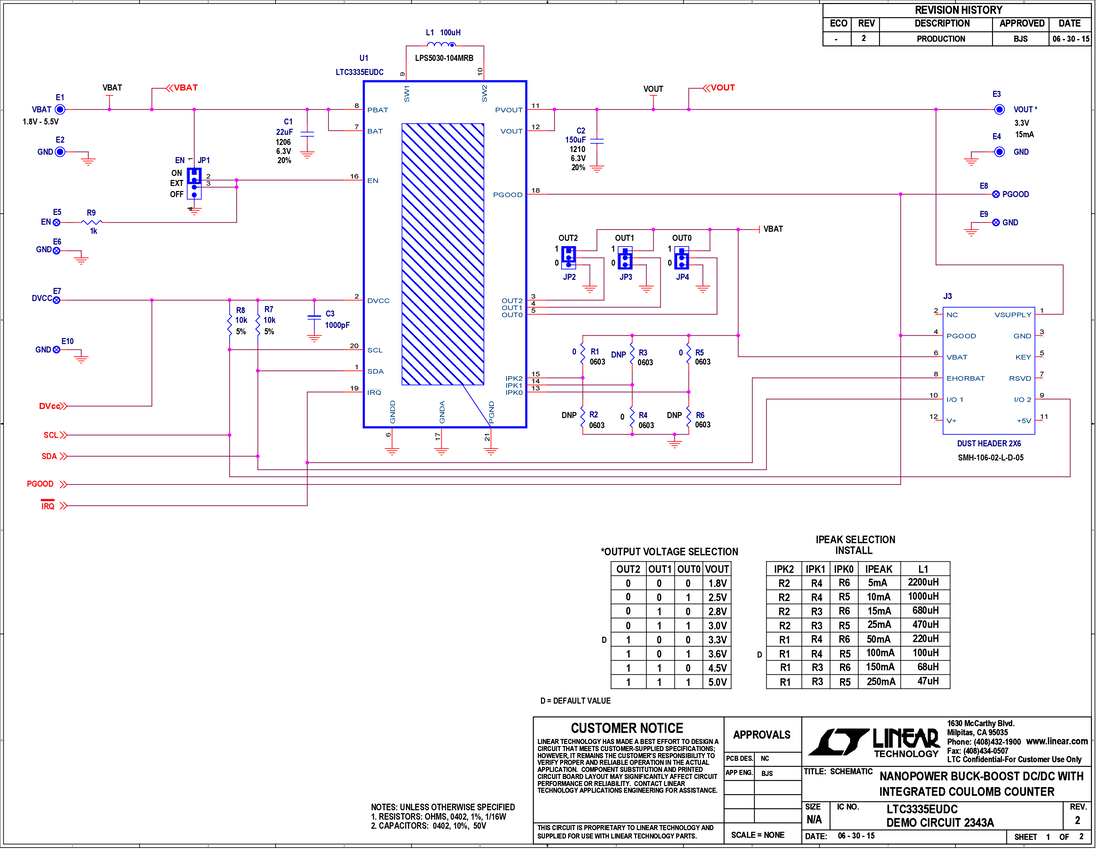

DC2343A - Schematic Download

117.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC2343A

LTC3335 Demo Board | 680nA Iq Buck-Boost with Coulomb Counter, 1.8V ≤ VIN ≤ 5.5V, VOUT = 1.8V to 5V @ 15mA

Tools & Simulations 1

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

windows iconapple iconcomputer icon
Linduino download and documentation
redirectbutton
Code Files

toolicon Linduino

LTC3335 - DC2343A.ino redirect

LTC3335 - Linduino.CPP File redirect

LTC3335_Config.h redirect

LTC3335_Correction_Tables.cpp redirect

LTC3335 - Linduino Header File redirect
