LTC3251

500mA High Efficiency, Low Noise, Inductorless Step-Down DC/DC Converters

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3251 - Inductorless (Charge Pump) DC/DC Converters Download 1.32 KB
Part Models 6
1ku List Price Starting From $2.60
Features
  • Up to 500mA Output Current
  • No Inductors
  • 2.7V to 5.5V Input Voltage Range

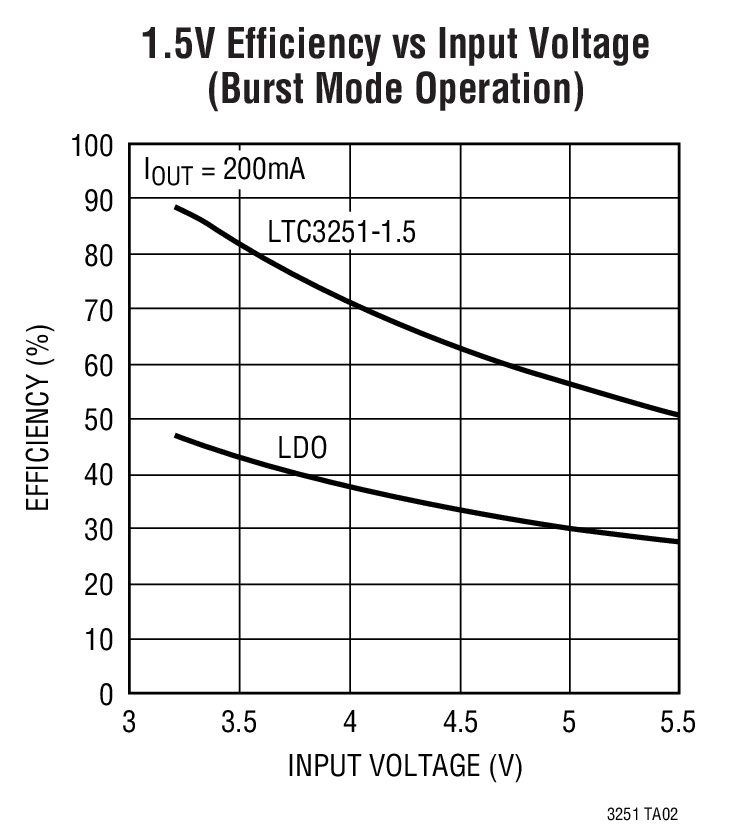

  • 2x Efficiency Improvement Over LDOs
  • 2-Phase, Spread Spectrum Operation for Low Input and Output Noise
  • Shutdown Disconnects Load from VIN
  • Adjustable Output Voltage Range: 0.9V to 1.6V
    • Fixed Output Voltages: 1.2V, 1.5V
  • Super Burst, Burst and Burst Defeat Operating Modes
  • Low Operating Current: IIN = 35µA (Burst Mode® Operation)
  • Super Burst Operating Current: IIN = 10µA
  • Low Shutdown Current: IIN = 0.01µA Typ
  • Soft-Start Limits Inrush Current at Turn-On
  • Short-Circuit and Overtemperature Protected

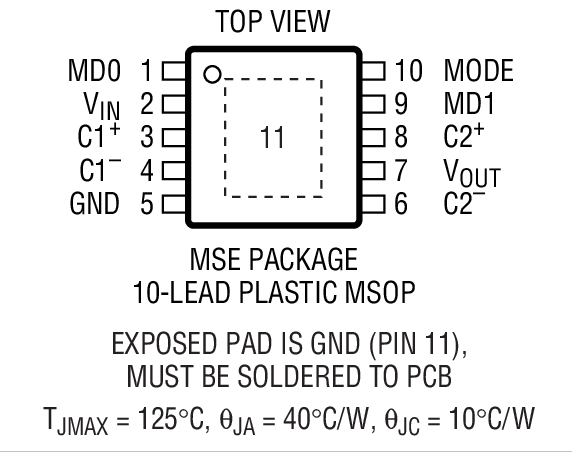

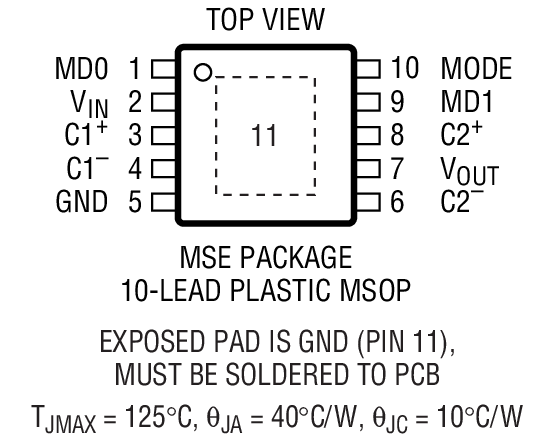

  • Available in a Thermally Enhanced 10-Pin MSOP Package
Additional Details
show more Icon

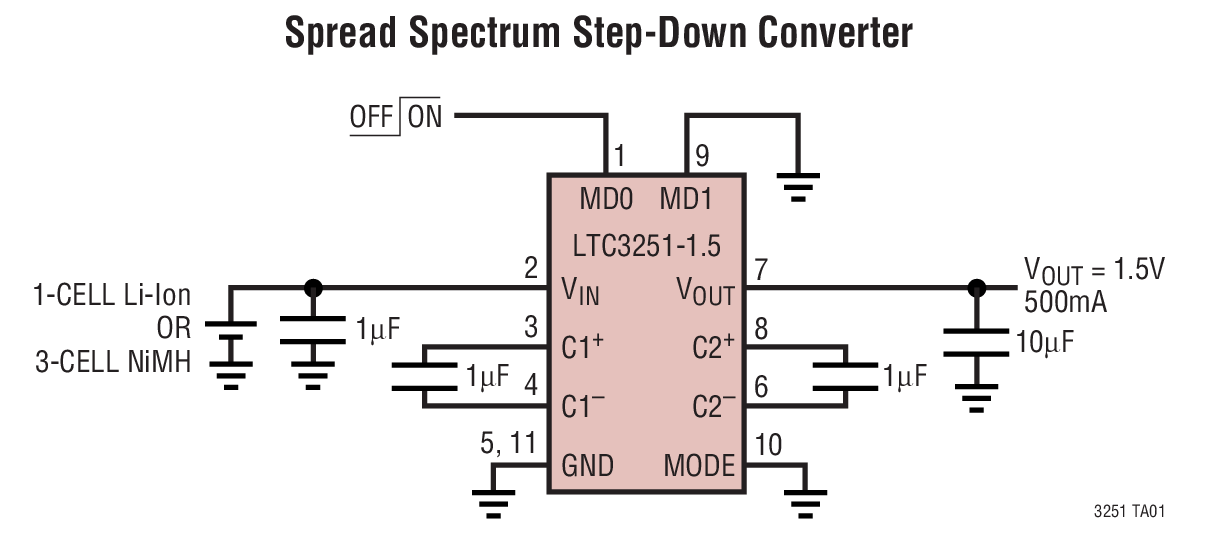

The LTC3251/LTC3251-1.2/LTC3251-1.5 are 2-phase charge pump step-down DC/DC converters that produce a regulated output from a 2.7V to 5.5V input. The parts use switched capacitor fractional conversion to achieve twice the typical efficiency of a linear regulator. No inductors are required. VOUT is resistor programmable from 0.9V to 1.6V or fixed at 1.2V or 1.5V, with up to 500mA of load current available.

A unique 2-phase spread spectrum architecture provides a very low noise regulated output as well as low noise at the input. The parts have four operating modes: Continuous Spread Spectrum, Spread Spectrum with Burst Mode operation, Super Burst™ mode operation and shutdown.

Low operating current (35µA in Burst Mode operation, 10µA in Super Burst mode operation) and low external parts count make the LTC3251/LTC3251-1.2/LTC3251-1.5 ideally suited for space-constrained battery-powered applications. The parts are short-circuit and over-temperature protected, and are available in a thermally enhanced 10-pin MSOP package.

Applications

  • Handheld Devices
  • Cellular Phones
  • Portable Electronic Equipment
  • DSP Power Supplies
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3251 - Inductorless (Charge Pump) DC/DC Converters Download 1.32 KB
Part Models 6
1ku List Price Starting From $2.60
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3251

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/24/2007
English

LTC3251: 500mA High Efficiency, Low Noise, Inductorless Step-Down DC/DC Converters Data Sheet

Open PDF File

redirect
373.00K
download

Download PDF

PDF Vector

PDF

UPDATED 08/09/2004
Japanese

LTC3251: 500mA、高効率、低ノイズ、インダクタ不要の降圧DC/DCコンバータ データシート

Open PDF File

redirect
284.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC506A - Demo Manual redirect icon

404.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R415 Reliability Data redirect icon

25.65 K

download

Download PDF

Design Note

1

PDF Vector

HTML

UPDATED 11/04/2022
English
Design Note 310: New Step-Down Charge Pumps are Tiny, Efficient and Very Low Noise redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3251EMSE#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3251EMSE#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3251EMSE-1.2#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3251EMSE-1.2#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3251EMSE-1.5#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3251EMSE-1.5#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC3251EMSE#PBF

PRODUCTION

LTC3251EMSE#TRPBF

PRODUCTION

LTC3251EMSE-1.2#PBF

PRODUCTION

LTC3251EMSE-1.2#TRPBF

PRODUCTION

LTC3251EMSE-1.5#PBF

PRODUCTION

LTC3251EMSE-1.5#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3251EMSE#PBF

PRODUCTION

LTC3251EMSE#TRPBF

PRODUCTION

LTC3251EMSE-1.2#PBF

PRODUCTION

LTC3251EMSE-1.2#TRPBF

PRODUCTION

LTC3251EMSE-1.5#PBF

PRODUCTION

LTC3251EMSE-1.5#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC3251EMSE#PBF

PRODUCTION

LTC3251EMSE#TRPBF

PRODUCTION

LTC3251EMSE-1.2#PBF

PRODUCTION

LTC3251EMSE-1.2#TRPBF

PRODUCTION

LTC3251EMSE-1.5#PBF

PRODUCTION

LTC3251EMSE-1.5#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3251EMSE#PBF

PRODUCTION

LTC3251EMSE#TRPBF

PRODUCTION

LTC3251EMSE-1.2#PBF

PRODUCTION

LTC3251EMSE-1.2#TRPBF

PRODUCTION

LTC3251EMSE-1.5#PBF

PRODUCTION

LTC3251EMSE-1.5#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC506A

LTC3251EMSE Demo Board | Spread-Spectrum, Low Noise, Inductorless Step-Down Charge Pump, 3.2V ≤ VIN ≤ 5.5V, VOUT @ Up to 500mA

zoom

DC506A

LTC3251EMSE Demo Board | Spread-Spectrum, Low Noise, Inductorless Step-Down Charge Pump, 3.2V ≤ VIN ≤ 5.5V, VOUT @ Up to 500mA

download icon

Download

 print icon

Print
DC506A
LTC3251EMSE Demo Board | Spread-Spectrum, Low Noise, Inductorless Step-Down Charge Pump, 3.2V ≤ VIN ≤ 5.5V, VOUT @ Up to 500mA
Buy Now View Details

Product Detail

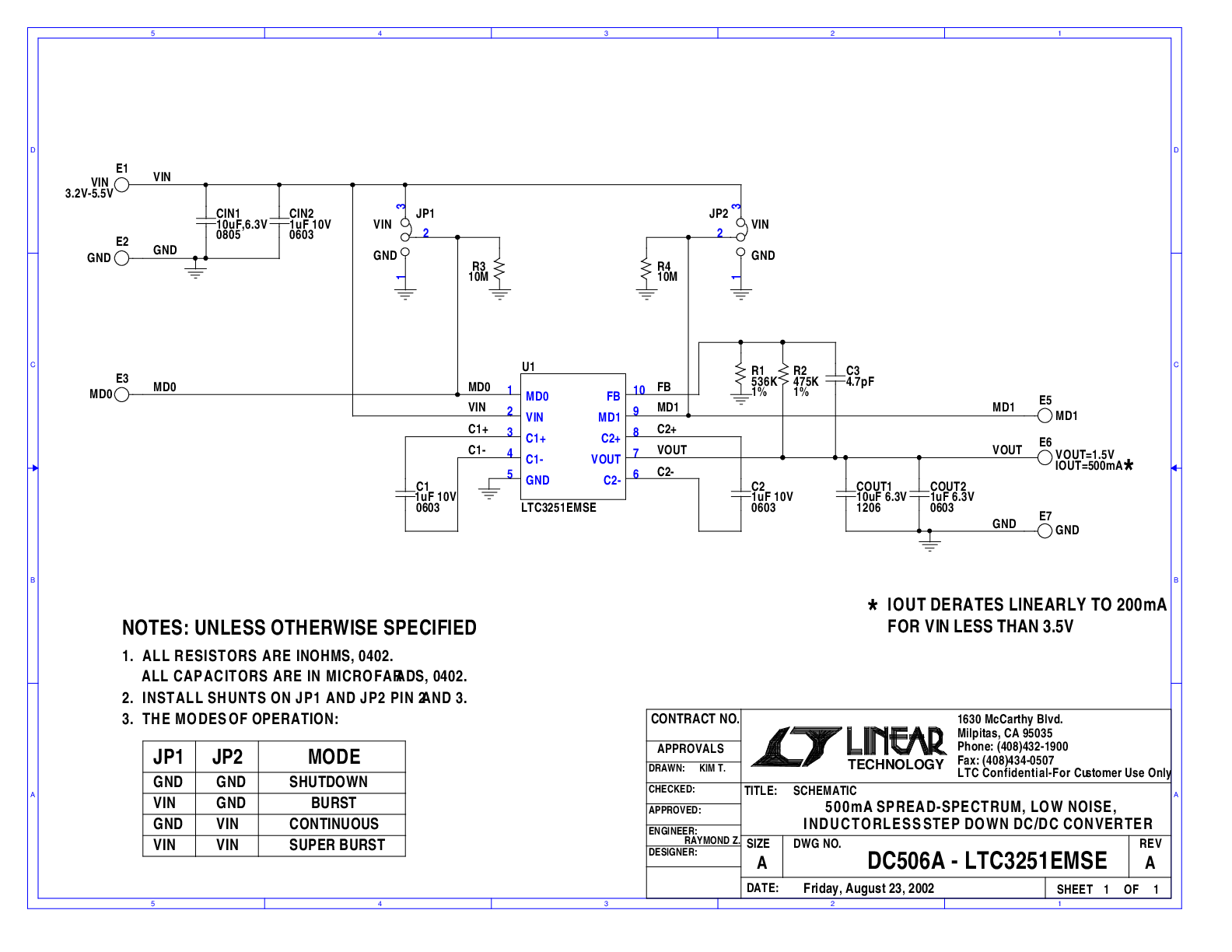

Demonstration circuit 506A is a two-phase, step down charge pump DC/DC converter featuring the LTC3251EMSE. It produces a regulated 1.5V output voltage at up to 500mA of output current from a 3.2V to 5.5V input. The LTC3251's unique two-phase, spread spectrum architecture provides high efficient and low noise operation.

Resources

pdf icon

PDF

DC506A - Schematic Download

19.00K

pdf icon

ZIP

DC506A - Design File Download

783.00K

pdf icon

PDF

DC506A - Demo Manual Download

404.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC506A

LTC3251EMSE Demo Board | Spread-Spectrum, Low Noise, Inductorless Step-Down Charge Pump, 3.2V ≤ VIN ≤ 5.5V, VOUT @ Up to 500mA

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC3251 - Inductorless (Charge Pump) DC/DC Converters Download

1.32 K
