Overview

Features and Benefits

  • Charge Pump Provides High Efficiency with Automatic Mode Switching
  • Multimode Operation: 1x, 1.5x, 2x
  • Four Low Dropout LED Outputs
  • Up to 600mA Total Output Current
  • Independent Torch and Flash ISET and Enable Pins
  • Low Noise Constant Frequency Operation*
  • PWM Brightness Control via the EN2 Pin
  • Low Shutdown Current: 4μA
  • Internal Soft-Start Limits Inrush Current During Start-Up and Mode Switching
  • Open/Short LED Protection
  • No Inductors
  • (3mm x 3mm) 16-Lead QFN Plastic Package

Product Details

The LTC3217 is a low noise charge pump DC/DC converter designed to power four high current LEDs. The LTC3217 requires only four small ceramic capacitors and two current set resistors to form a complete LED power supply and current controller.

Built-in soft-start circuitry prevents excessive inrush current during start-up and mode changes. High switching frequency enables the use of small external capacitors. Independent high and low current settings are programmed by two external resistors. Shutdown mode and current output levels are selected via two logic inputs.

The current through the LEDs is programmed via ISET1 and ISET2. In addition, the brightness can be controlled by pulse width modulation of the EN2 pin.

The charge pump optimizes efficiency based on the voltage across the LED current sources. The part powers up in 1x mode and will automatically switch to boost mode whenever any enabled LED current source begins to enter dropout. The first dropout switches the part into 1.5x mode and a subsequent dropout switches the part into 2x mode. The LTC3217 resets to 1x mode whenever the part is shut down.

The LTC3217 is available in a low profile 16-lead (3mm × 3mm × 0.75mm) QFN package.

Applications

  • Multi-LED Camera Light Supply for Cellphones/ DSCs/PDAs

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Documentation & Resources

  • View All (3)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LTC3217

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC3217EUD#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC3217EUD#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    Wafer Fabrication Data R415 Reliability Data

    Support & Discussions

    LTC3217 Contact ADI Technical Support »
    LTC3217 Ask your question »
    LTC3217 Contact ADI Technical Support » LTC3217 Ask your question »

    Sample & Buy


    Ordering FAQs


    See our Ordering FAQs for answers to questions about online orders, payment options and more.



    Buy Now Pricing


    (**) Displayed Buy Now Price and Price Range is based on small quantity orders.



    List Pricing


    (*)The 1Ku list pricing shown is for BUDGETARY USE ONLY, shown in United States dollars (FOB USA per unit for the stated volume), and is subject to change. International prices may differ due to local duties, taxes, fees and exchange rates. For volume-specific price or delivery quotes, please contact your local Analog Devices, Inc. authorized distributor. Pricing displayed for Evaluation Boards and Kits is based on 1-piece pricing.



    Lead Times


    Please see the latest communication from our CCO regarding lead times.



    Sampling


    Selecting the Sample button above will redirect to the third-party ADI Sample Site. The part selected will carry over to your cart on this site once logged in. Please create a new account there if you have never used the site before. Contact SampleSupport@analog.com with any questions regarding this Sample Site.


    Price Table Help

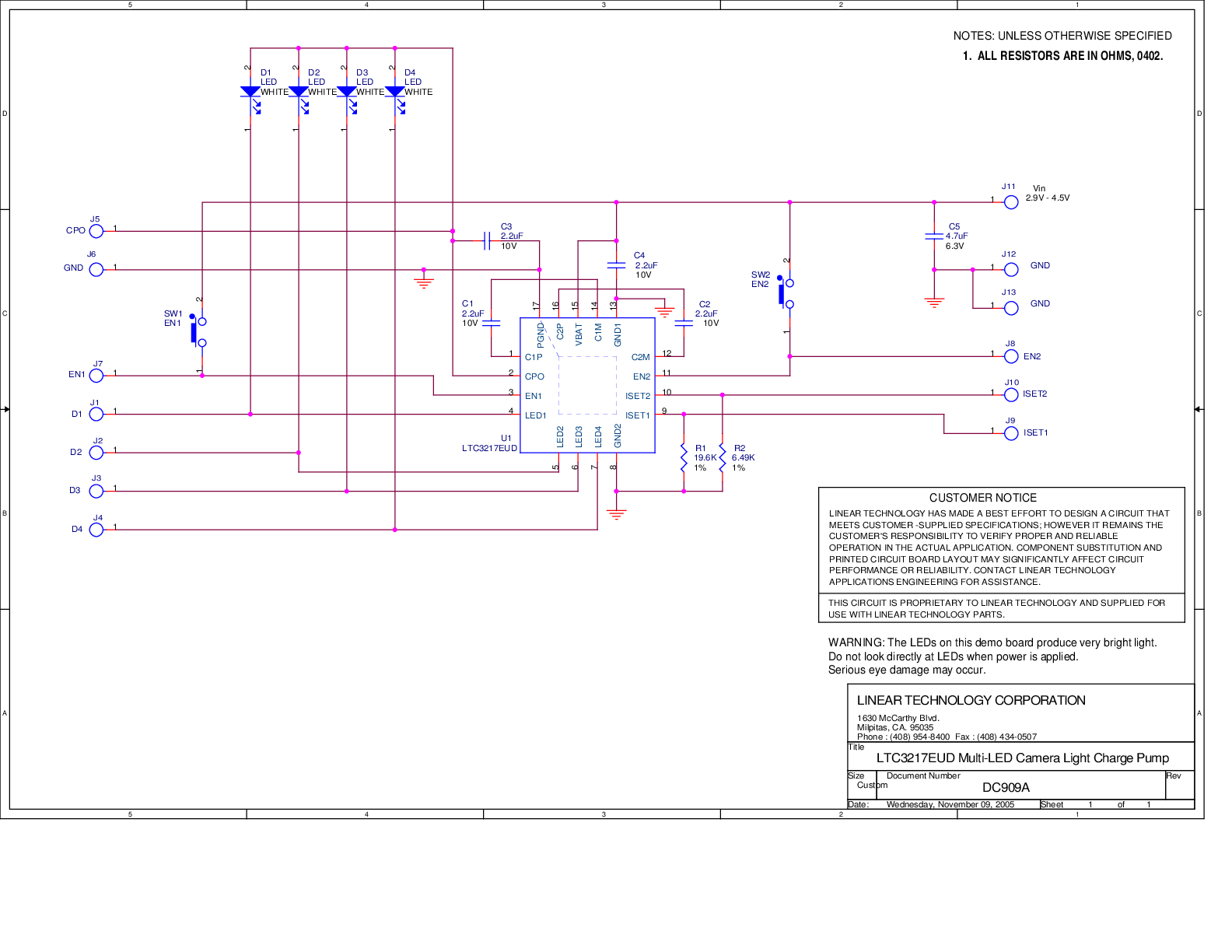

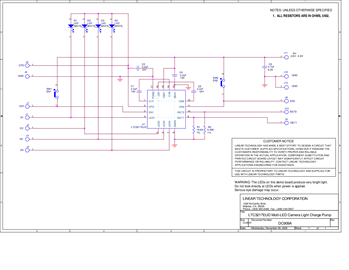

    Evaluation Boards
