LTC3214

500mA Camera LED Charge Pump

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3214 - LED Driver IC Download 1.13 KB
Part Models 2
1ku List Price Starting From $2.07
Features
  • Low Noise Constant Frequency Operation
  • High Efficiency: Up to 94%
  • Multi-Mode Operation: 1x, 1.5x or 2x Boost Modes
  • Automatic Mode Switching
  • High Output Current: Up to 500mA
  • Tiny Application Circuit (3mm × 3mm DFN Package All Components <1mm High)
  • Automatic Soft-Start
  • Output Disconnect
  • Open, Shorted LED Protection
  • No Inductors
  • Internal 110mΩ LED Current Sense Resistor 3mm × 3mm 10-Lead DFN Package
Additional Details
show more Icon

The LTC3214 is a low noise, high current charge pump DC/DC converter capable of driving high current LEDs at up to 500mA from a 2.9V to 4.5V input. Low external parts count (two flying capacitors, one programming resistor and two bypass capacitors at VIN and CPO) make the LTC3214 ideally suited for small, battery-powered applications.

Built-in soft-start circuitry prevents excessive inrush current during start-up. High switching frequency enables the use of small external capacitors.

Output current level is programmed by an external resistor. LED current is regulated using an internal 110mΩ sense resistor. Automatic mode switching optimizes efficiency by monitoring the voltage across the charge pump and switching modes only when dropout is detected. The part is available in a low profile 3mm x 3mm 10-lead DFN package.

Applications

  • LED Torch/Camera Light Supply for Cell Phones, PDAs and Digital Cameras
  • General Lighting and/or Flash/Strobe Applications
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3214 - LED Driver IC Download 1.13 KB
Part Models 2
1ku List Price Starting From $2.07
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3214

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 02/29/2008
English

LTC3214: 500mA Camera LED Charge Pump Data Sheet

Open PDF File

redirect
154.00K
download

Download PDF

PDF Vector

PDF

UPDATED 10/10/2013
Japanese

LTC3214: 500mAカメラ LEDチャージポンプ データシート

Open PDF File

redirect
804.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC902A - Demo Manual redirect icon

116.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R415 Reliability Data redirect icon

25.65 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3214EDD#PBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3214EDD#TRPBF 10-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Evaluation Kits 2

reference details image

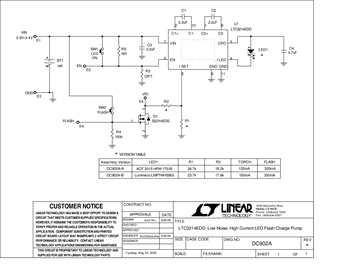

DC902A-B

LTC3214EDD | Low Noise, High Current LED Flash Charge Pump, VIN = 2.9V to 4.4V, Lumimicro LED

reference details image

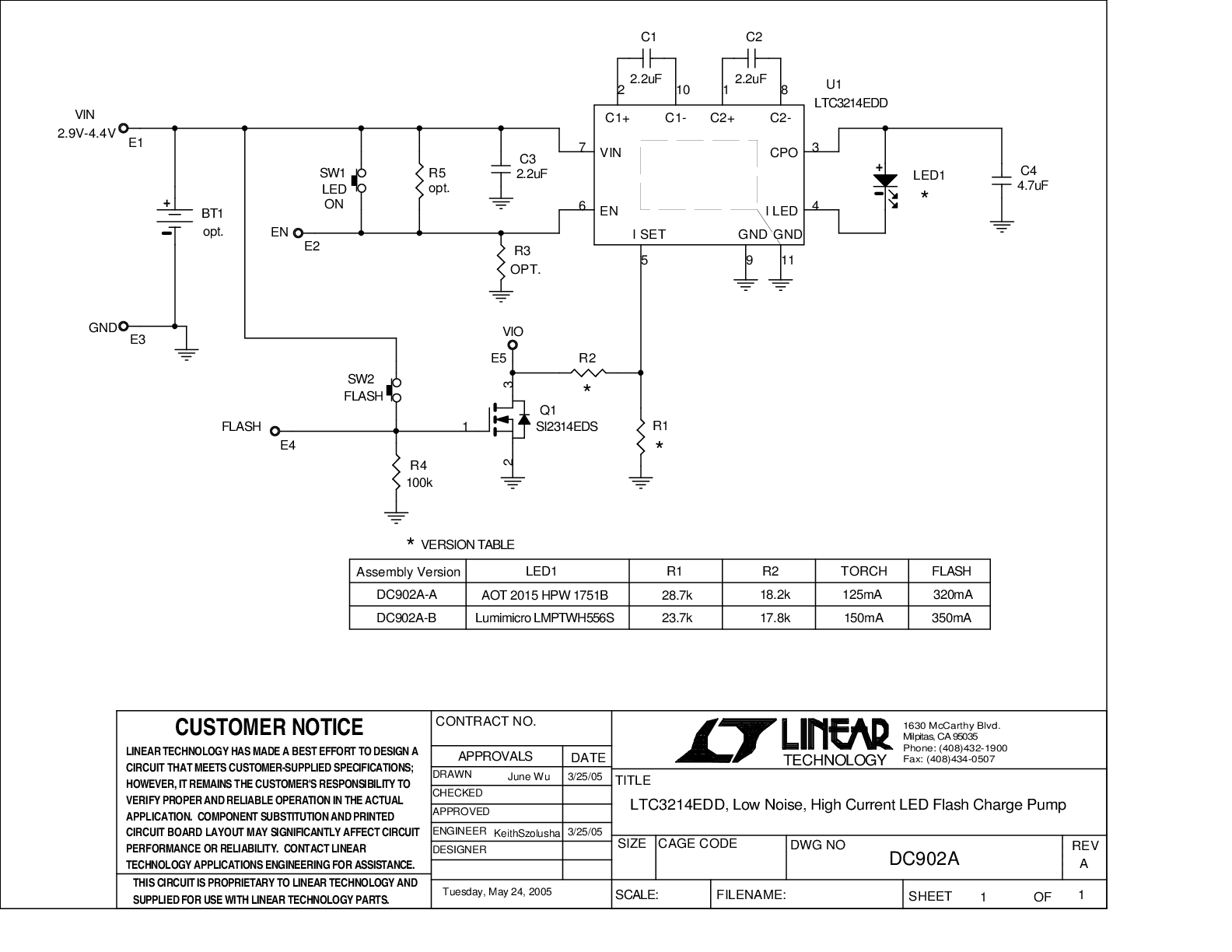

DC902A-A

LTC3214EDD | Low Noise, High Current LED Flash Charge Pump, VIN = 2.9V to 4.4V, AOT LED

Evaluation Kits2

evaluation kit item images

DC902A-B

LTC3214EDD | Low Noise, High Current LED Flash Charge Pump, VIN = 2.9V to 4.4V, Lumimicro LED
evaluation kit item images

DC902A-A

LTC3214EDD | Low Noise, High Current LED Flash Charge Pump, VIN = 2.9V to 4.4V, AOT LED

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC3214 - LED Driver IC Download

1.13 K
