LTC3113

3A Low Noise Buck-Boost DC/DC Converter

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 8
1ku List Price Starting From $4.72
Features
  • Regulated Output with Input Voltage Above, Below or Equal to the Output Voltage
  • 1.8V to 5.5V Input and Output Voltage Range
  • 3A Continuous Output Current VIN > 3.0V, VOUT = 3.8V
  • 1.5A Continuous Output Current for VIN ≥ 1.8V, VOUT = 3.3V
  • Single Inductor
  • Low Noise Buck-Boost Architecture
  • Up to 96% Efficiency
  • Programmable Frequency from 300kHz to 2MHz
  • Selectable Burst Mode® Operation
  • Output Disconnect in Shutdown
  • Shutdown Current: <1μA
  • Internal Soft-Start
  • Small, Thermally Enhanced 16-Lead (4mm × 5mm × 0.75mm) DFN Package and 20-Lead TSSOP Package
Additional Details
show more Icon

The LTC3113 is a wide VIN range, highly efficient, fixed frequency, buck-boost DC/DC converter that operates from input voltages above, below or equal to the output voltage. The topology incorporated in the IC provides low noise operation, making it well suited for RF and precision measurement applications.

The LTC3113 can deliver up to 3A of continuous output current to satisfy the most demanding applications. Higher output current is possible in stepdown (buck) mode. Integrated low RDS(ON) power MOSFETs and a programmable switching frequency up to 2MHz result in a compact solution footprint. Selectable Burst Mode operation improves efficiency at light loads.

Other features include <1μA shutdown current, integrated soft-start, short-circuit protection, current limit and thermal overload protection. The LTC3113 is housed in the thermally enhanced 16-lead (4mm × 5mm × 0.75mm) DFN and 20-lead TSSOP packages.

Applications

  • Wireless Modems
  • Backup Power Systems
  • Portable Inventory Terminals
  • Portable Barcode Readers
  • Portable Instrumentation
Part Models 8
1ku List Price Starting From $4.72

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3113EDHD#PBF
  • HTML
  • HTML
LTC3113EDHD#TRPBF
  • HTML
  • HTML
LTC3113EFE#PBF
  • HTML
  • HTML
LTC3113EFE#TRPBF
  • HTML
  • HTML
LTC3113IDHD#PBF
  • HTML
  • HTML
LTC3113IDHD#TRPBF
  • HTML
  • HTML
LTC3113IFE#PBF
  • HTML
  • HTML
LTC3113IFE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 30, 2020

- 20_0244

Notification of Wafer Fab Location Change for 0.6µm CMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3113EDHD#PBF

PRODUCTION

LTC3113EDHD#TRPBF

PRODUCTION

LTC3113EFE#PBF

PRODUCTION

LTC3113EFE#TRPBF

PRODUCTION

LTC3113IDHD#PBF

PRODUCTION

LTC3113IDHD#TRPBF

PRODUCTION

LTC3113IFE#PBF

PRODUCTION

LTC3113IFE#TRPBF

PRODUCTION

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3113EFE#PBF

PRODUCTION

LTC3113EFE#TRPBF

PRODUCTION

LTC3113IFE#PBF

PRODUCTION

LTC3113IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 30, 2020

- 20_0244

arrow down

Notification of Wafer Fab Location Change for 0.6µm CMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3113EDHD#PBF

PRODUCTION

LTC3113EDHD#TRPBF

PRODUCTION

LTC3113EFE#PBF

PRODUCTION

LTC3113EFE#TRPBF

PRODUCTION

LTC3113IDHD#PBF

PRODUCTION

LTC3113IDHD#TRPBF

PRODUCTION

LTC3113IFE#PBF

PRODUCTION

LTC3113IFE#TRPBF

PRODUCTION

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3113EFE#PBF

PRODUCTION

LTC3113EFE#TRPBF

PRODUCTION

LTC3113IFE#PBF

PRODUCTION

LTC3113IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC1551A

LTC3113EDHD Demo Board

zoom

DC1551A

LTC3113EDHD Demo Board

LTC3113EDHD Demo Board

Product Detail

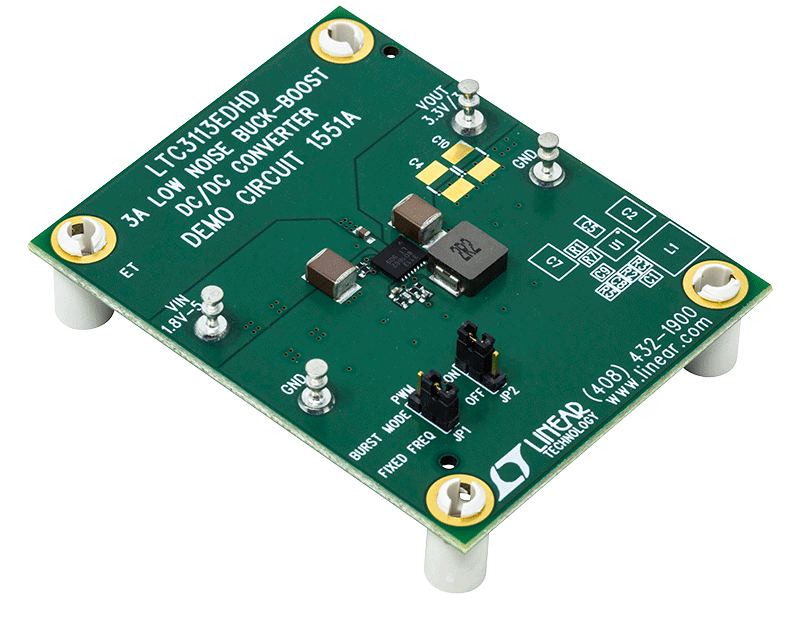

Demonstration Circuit 1551A is a wide Vin range, highly efficient, fixed frequency buck-boost converter. The unique 4-switch, single inductor architecture provides low noise and seamless operation from input voltages above, below, or equal to the output voltage. The LTC3113 features selectable PWM or Burst Mode operation and an oscillator with a programmable frequency from 300kHz to 2MHz. The LTC3113 can deliver up to 3A of continuous output current to satisfy most demanding applications. Higher output currents are possible in step-down (buck) mode. The LTC3113 operates with a 1.8V to 5.5V input and output voltage range. The demonstration board has been designed to operate over the full input voltage range, with VOUT set to 3.3V and IOUT of 3.0A. For VIN < 3V, IOUT capability is reduced.
