LTC3109

Auto-Polarity, Ultralow Voltage Step-Up Converter and Power Manager

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3109 - Power Management Download 3.48 KB
Part Models 8
1ku List Price Starting From $4.72
Features
  • Operates from Inputs as Low as ±30mV
  • Less Than ±1°C Needed Across TEG to Harvest Energy
  • Proprietary Auto-Polarity Architecture
  • Complete Energy Harvesting Power Management System
    • Selectable VOUT of 2.35V, 3.3V, 4.1V or 5V
    • 2.2V, 5mA LDO
    • Logic-Controlled Output
    • Energy Storage Capability for Operation During Power Interruption
  • Power Good Indicator
  • Uses Compact Step-up Transformers
  • Small, 20-lead (4mm × 4mm) QFN Package or 20-Lead SSOP
Additional Details
show more Icon

The LTC3109 is a highly integrated DC/DC converter ideal for harvesting surplus energy from extremely low input voltage sources such as TEGs (thermoelectric generators) and thermopiles. Its unique, proprietary autopolarity topology* allows it to operate from input voltages as low as 30mV, regardless of polarity.

Using two compact step-up transformers and external energy storage elements, the LTC3109 provides a complete power management solution for wireless sensing and data acquisition. The 2.2V LDO can power an external microprocessor, while the main output can be programmed to one of four fixed voltages. The power good indicator signals that the main output is within regulation. A second output can be enabled by the host. A storage capacitor (or battery) can also be charged to provide power when the input voltage source is unavailable. Extremely low quiescent current and high efficiency maximizes the harvested energy available for the application.

The LTC3109 is available in a small, thermally enhanced 20-lead (4mm × 4mm) QFN package and a 20-lead SSOP package.

Applications

  • Remote Sensor and Radio Power
  • HVAC Systems
  • Automatic Metering
  • Building Automation
  • Predictive Maintenance
  • Industrial Wireless Sensing
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3109 - Power Management Download 3.48 KB
Part Models 8
1ku List Price Starting From $4.72
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3109

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/15/2013
English

LTC3109: Auto-Polarity, Ultralow Voltage Step-Up Converter and Power Manager Data Sheet

Open PDF File

redirect
413.00K
download

Download PDF

PDF Vector

PDF

UPDATED 10/08/2013
Japanese

LTC3109: Auto-Polarity、超低電圧昇圧コンバータ＆パワーマネージャ データシート

Open PDF File

redirect
615.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 08/25/2010
English
DC1664A - Demo Manual redirect icon

396.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R551 Reliability Data redirect icon

25.35 K

download

Download PDF

Technical Articles

2

PDF Vector

HTML

UPDATED 04/01/2011
English
Harvest Energy from a Single Photovoltaic Cell redirect icon

PDF Vector

HTML

UPDATED 10/06/2014
English
Frequently Asked Questions: Thermoelectric Energy Harvesting With the LTC3108 & LTC3109 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Product Selector Card 2

Practical Ambient Energy Harvesting for WSNs
Practical Ambient Energy Harvesting for WSNs

Solutions Bulletin & Brochure 1

Energy Harvesting Now

Thought Leadership Page 1

Green Buildings Get a Boost: Wireless Sensor Nodes as a Key Application for Energy Harvesting

Video

1

Thumbnail Image

Video

2017-09-18

08:18

LTC3109 Video Product Brief

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3109EGN#PBF 20-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3109EGN#TRPBF 20-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3109EUF#PBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3109EUF#TRPBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3109IGN#PBF 20-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3109IGN#TRPBF 20-Lead SSOP (Narrow 0.15 Inch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3109IUF#PBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3109IUF#TRPBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 10, 2022

- 22_0177

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC3109EGN#PBF

PRODUCTION

LTC3109EGN#TRPBF

PRODUCTION

LTC3109IGN#PBF

PRODUCTION

LTC3109IGN#TRPBF

PRODUCTION

pdf

PCN22_0177_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Jan 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3109EUF#PBF

PRODUCTION

LTC3109EUF#TRPBF

PRODUCTION

LTC3109IUF#PBF

PRODUCTION

LTC3109IUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 10, 2022

- 22_0177

arrow down

Laser Top Mark Conversion for QSOP20_24_28 Assembled in ADPG [PNG] and UTL

LTC3109EGN#PBF

PRODUCTION

LTC3109EGN#TRPBF

PRODUCTION

LTC3109IGN#PBF

PRODUCTION

LTC3109IGN#TRPBF

PRODUCTION

pdf

PCN22_0177_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Jan 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC3109EUF#PBF

PRODUCTION

LTC3109EUF#TRPBF

PRODUCTION

LTC3109IUF#PBF

PRODUCTION

LTC3109IUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description

Energy Harvesting1
LTC3588-1
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Nanopower Energy Harvesting Power Supply

Single-Supply Monitors1
LTC2935
popup image
Cart

PRODUCTION

Ultra-Low Power Supervisor with Power-Fail Output, Selectable Thresholds

Evaluation Kits 1

reference details image

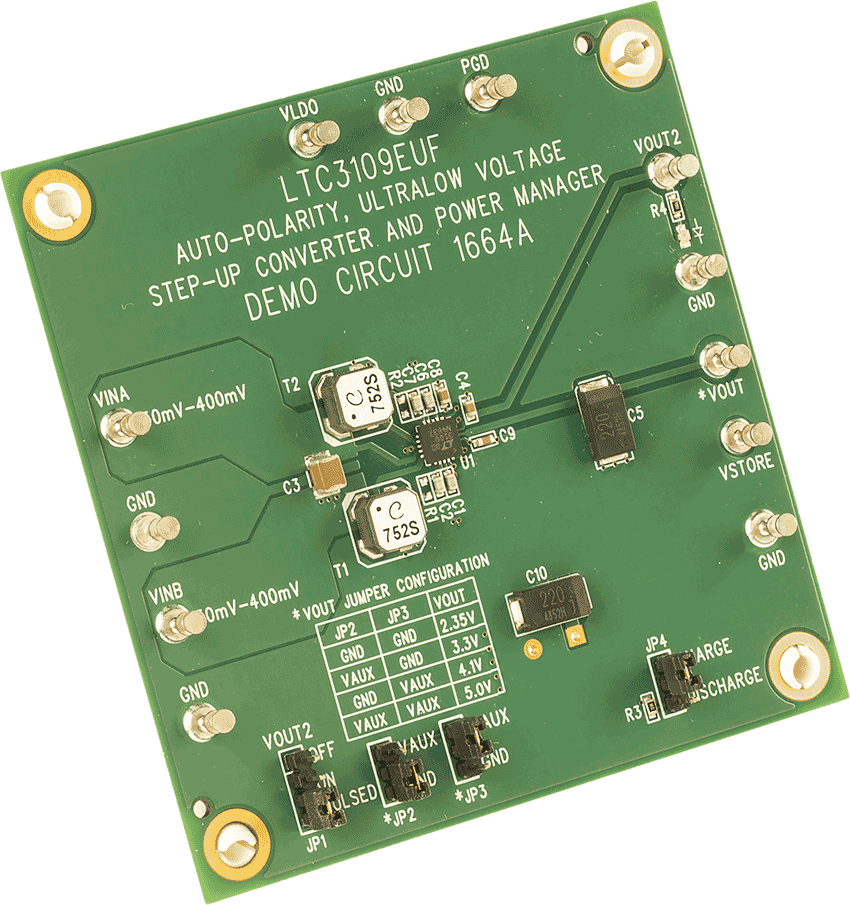

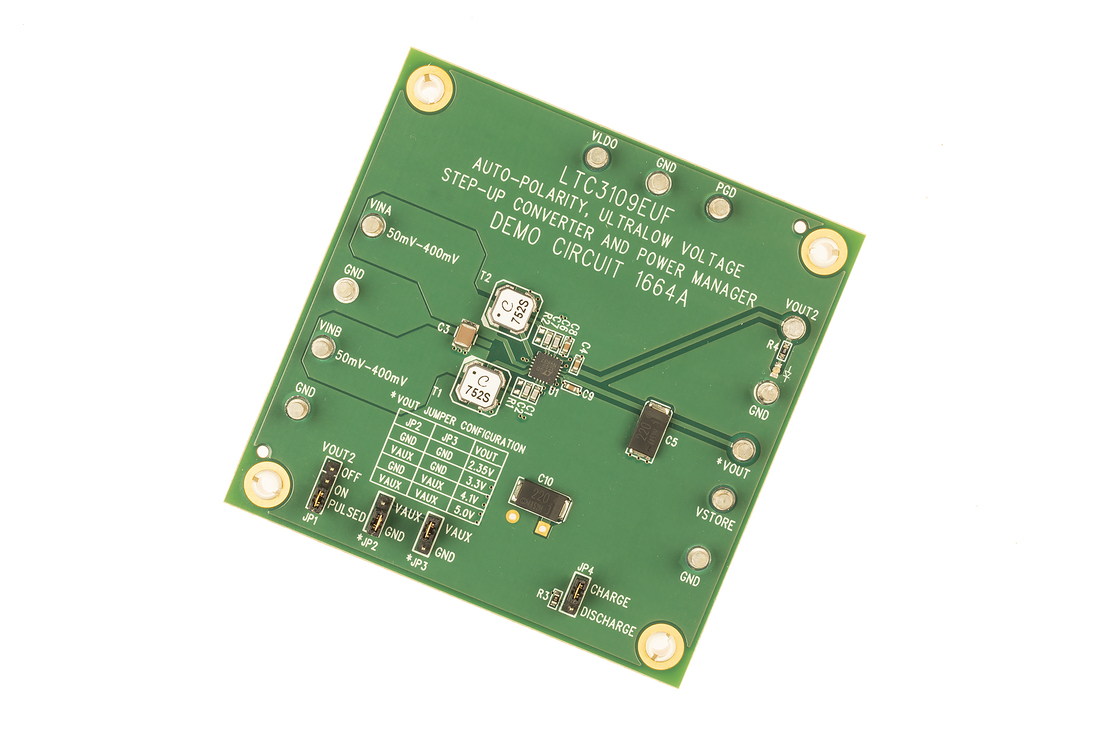

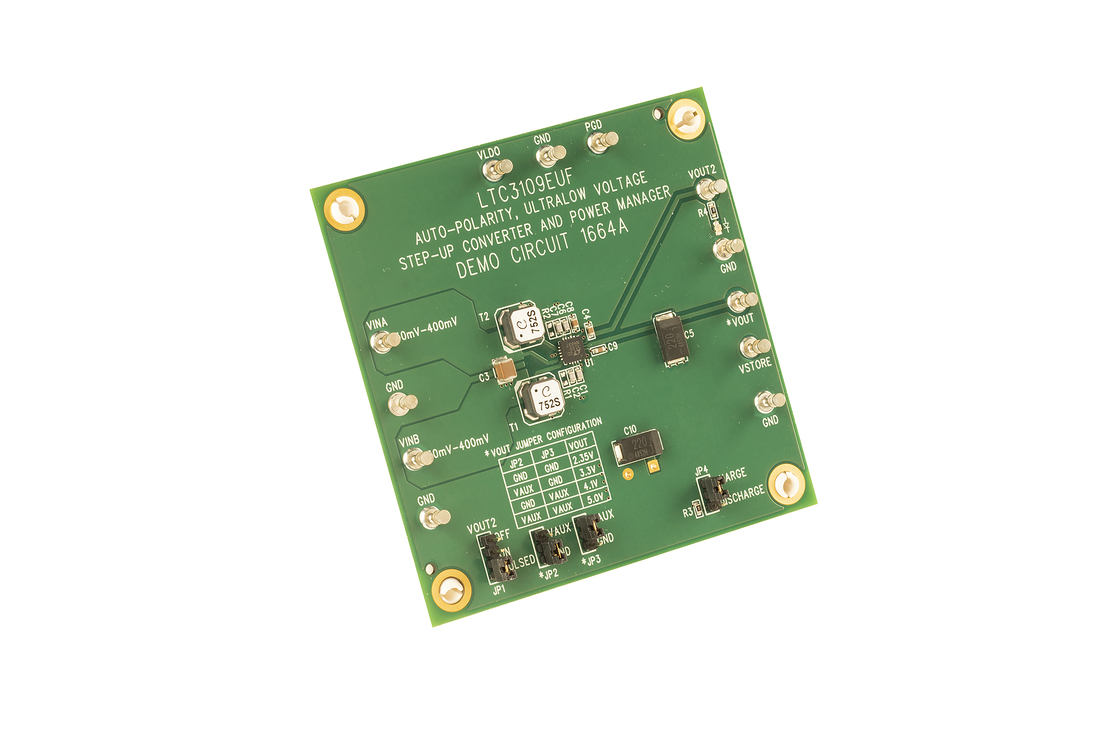

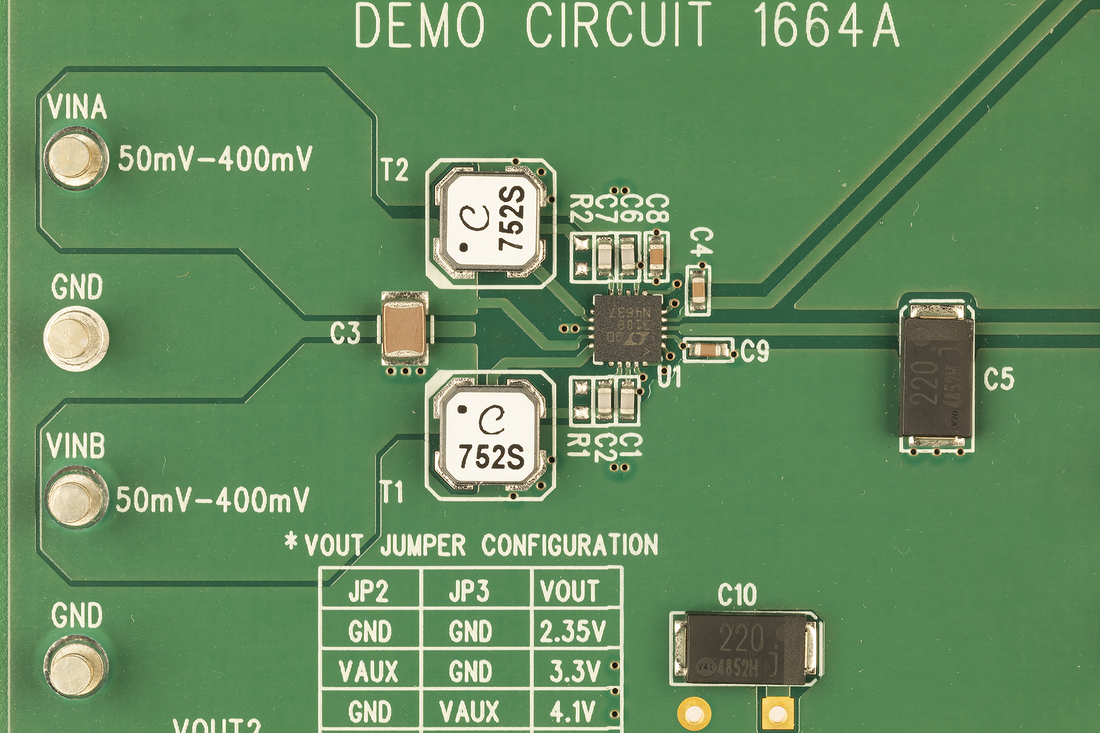

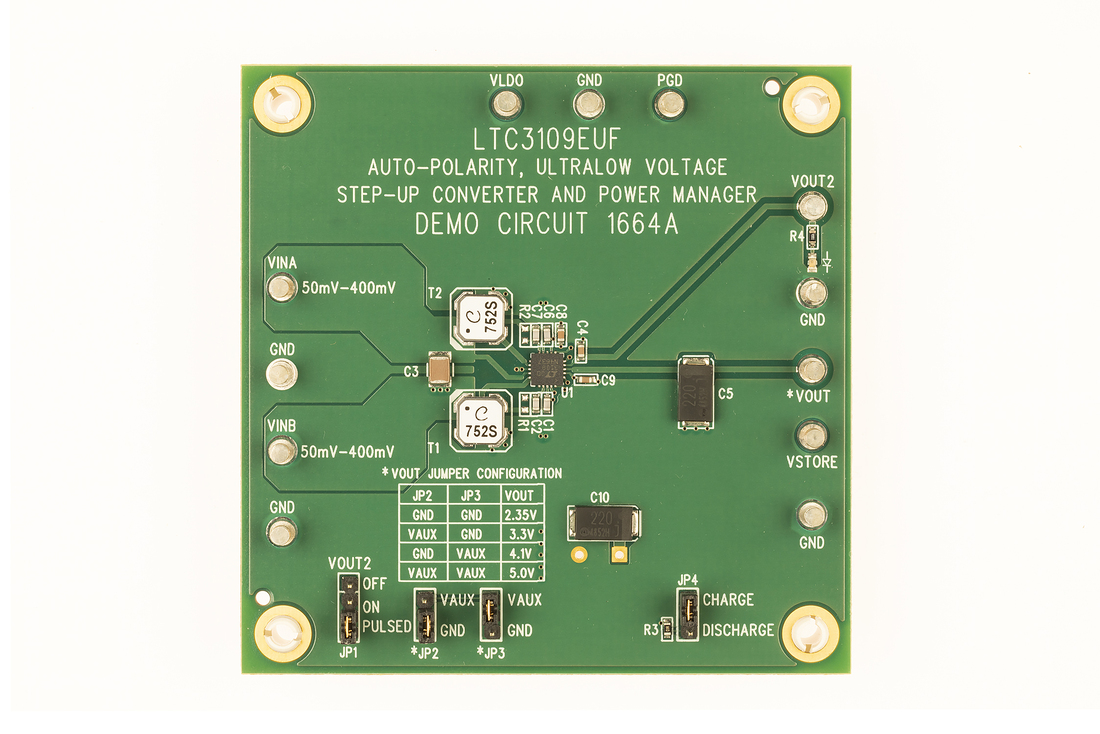

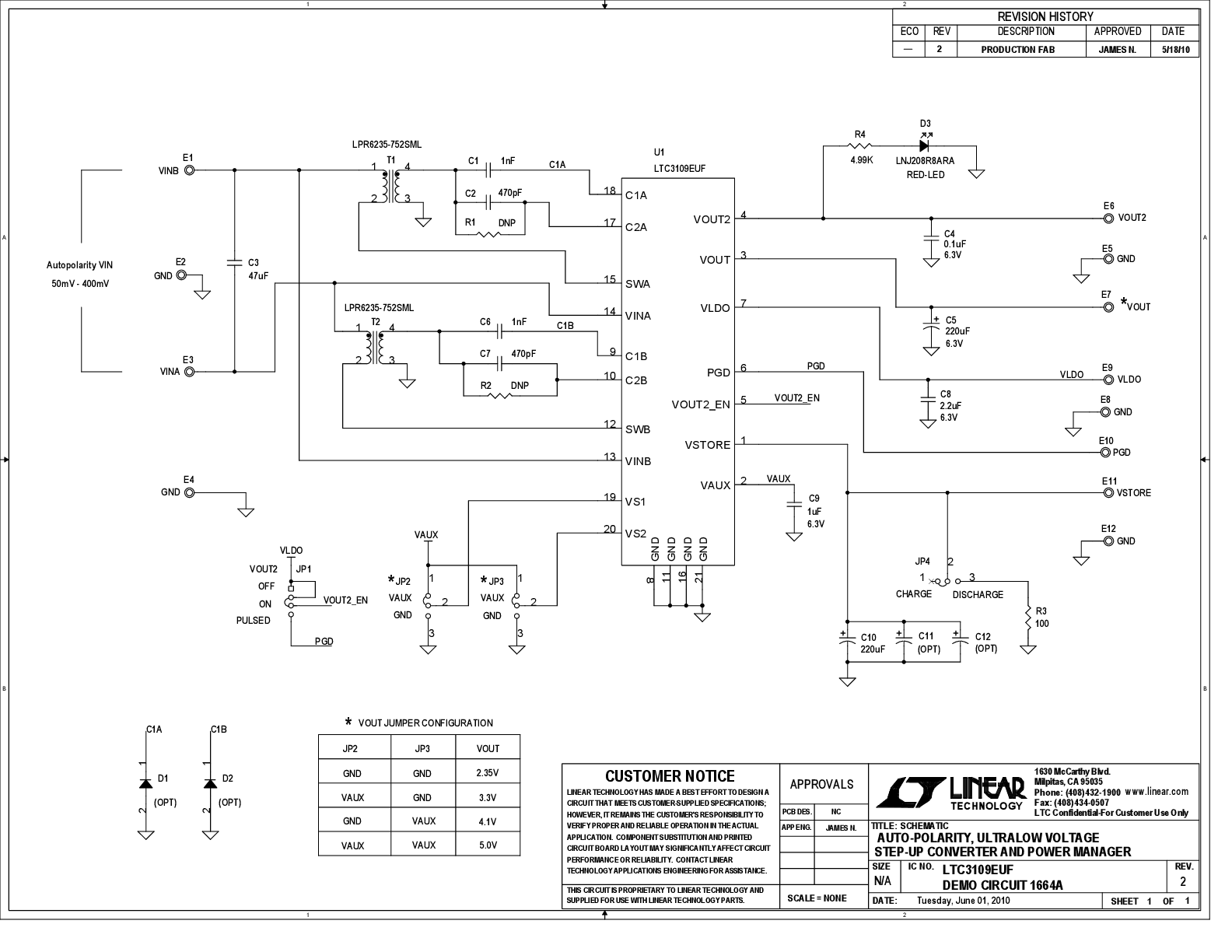

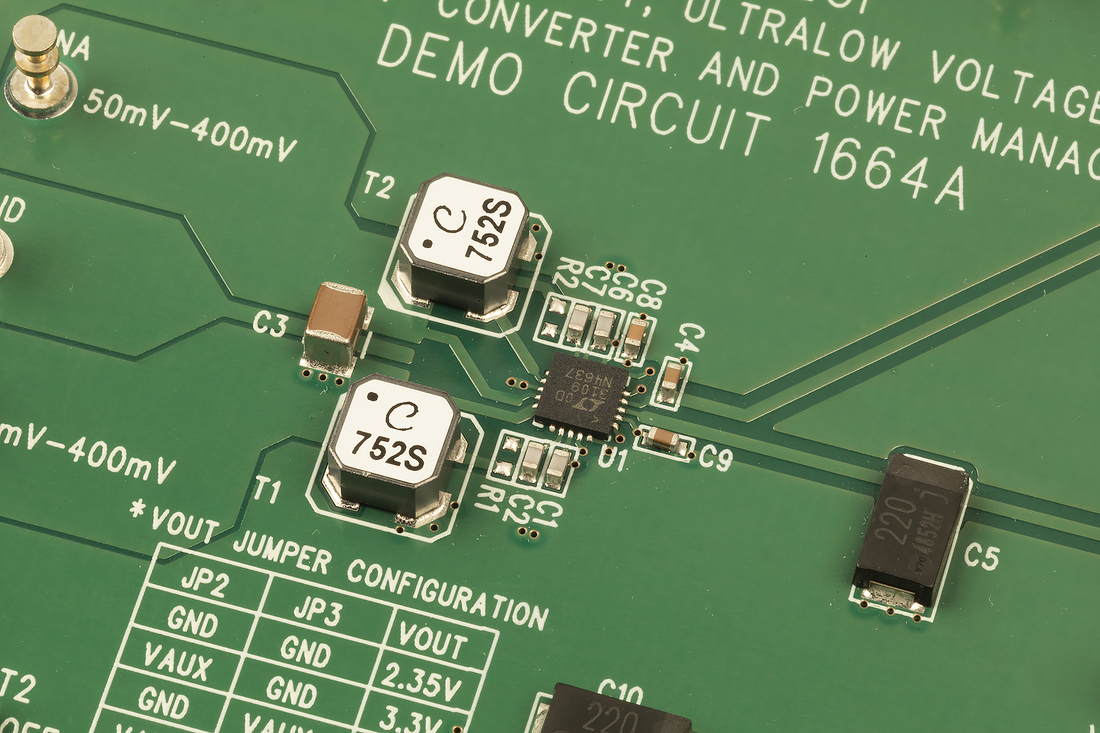

DC1664A
