LTC3106

300mA Low Voltage Buck-Boost Converter with PowerPath and 1.6μA Quiescent Current

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 8
1ku List Price Starting From $3.53
Features
  • Dual Input Buck-Boost with Integrated PowerPath Manager
  • Ultralow Start-Up Voltages: 850mV Start with No Backup Source, 300mV with a Backup Source
  • Compatible with Primary or Rechargeable Backup Batteries
  • Digitally Selectable VOUT and VSTORE
  • Maximum Power Point Control
  • Ultralow Quiescent Current: 1.6μA
  • Regulated Output with VIN or VSTORE Above, Below or Equal to the Output
  • Optional Backup Battery Trickle Charger
  • Shelf Mode Disconnect Function to Preserve Battery Shelf Life
  • Burst Mode® Operation
  • Accurate RUN Pin Threshold
  • Power Good Output Voltage Indicator
  • Selectable Peak Current Limit: 90mA/650mA

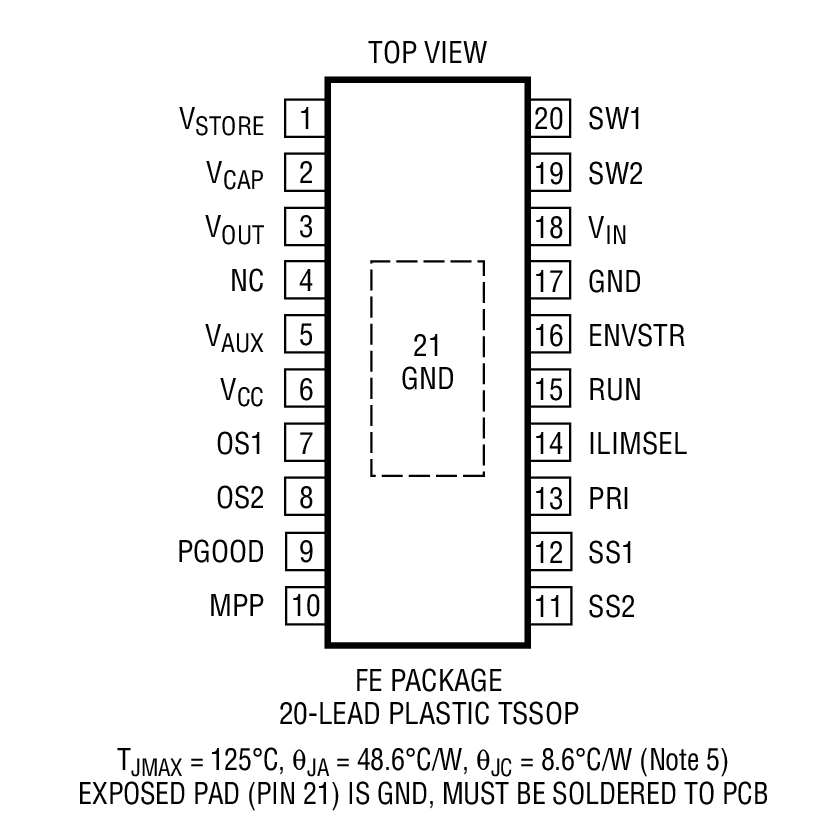

  • Available in Thermally Enhanced 3mm × 4mm 16-Pin QFN and 20-Pin TSSOP Packages
Additional Details
show more Icon

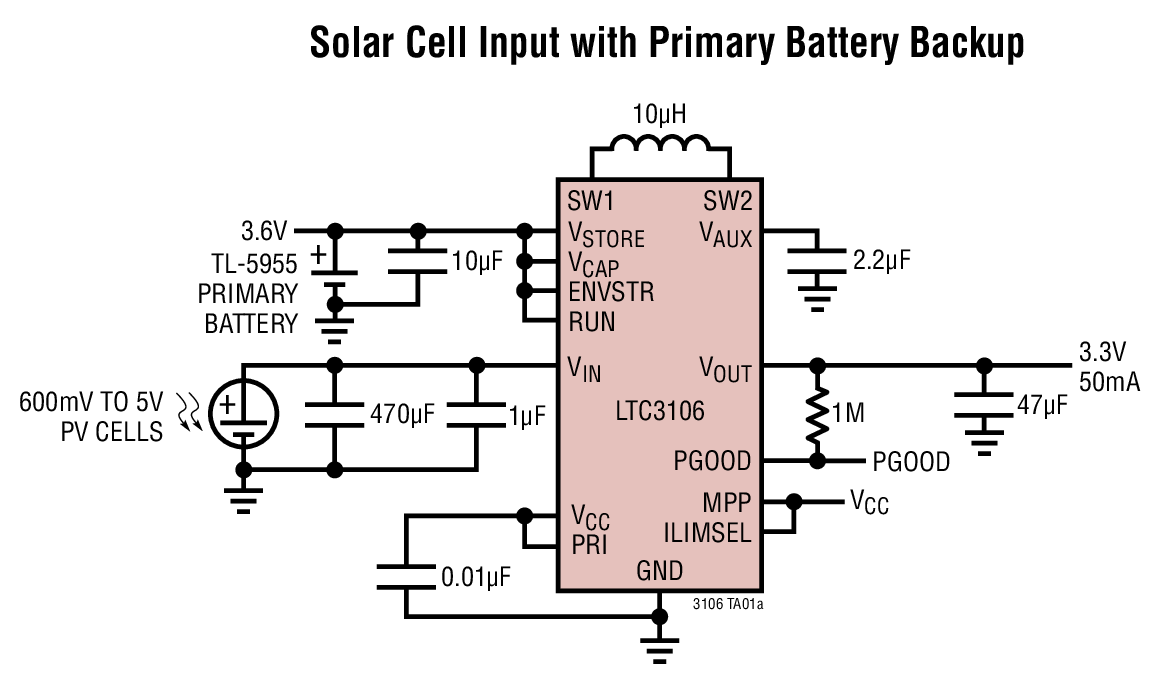

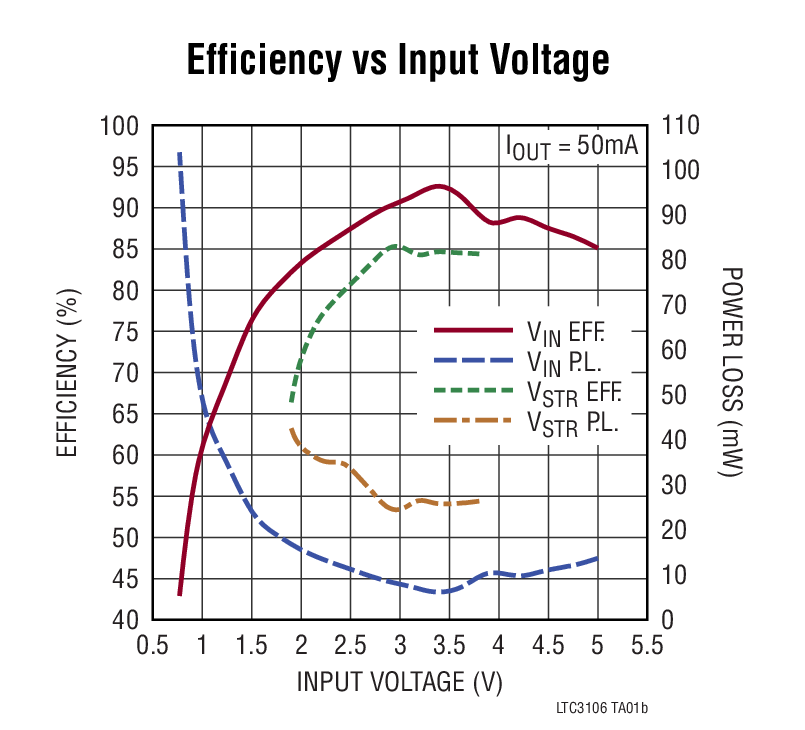

The LTC3106 is a highly integrated, ultralow voltage buck-boost DC/DC converter with automatic PowerPath management optimized for multisource, low power systems. At no load, the LTC3106 draws only 1.6μA while creating an output voltage up to 5V from either input source.

If the primary power source is unavailable, the LTC3106 seamlessly switches to the backup power source. The LTC3106 is compatible with either rechargeable or primary cell batteries and can trickle charge a backup battery whenever there is an energy surplus available. Optional maximum power point control ensures power transfer is optimized between power source and load. The output voltage and backup voltage, VSTORE, are programmed digitally, reducing the required number of external components. Zero power Shelf Mode ensures that the backup battery will remain charged if left connected to the LTC3106 for an extended time.

Additional features include an accurate turn-on voltage, a power good indicator for VOUT, a user selectable 100mA peak current limit setting for lower power applications, thermal shutdown as well as user selectable backup power and output voltages.

Applications

  • Wireless Sensor Networks
  • Home or Office Building Automation
  • Energy Harvesting
  • Remote Sensors
Part Models 8
1ku List Price Starting From $3.53

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3106EFE#PBF
  • HTML
  • HTML
LTC3106EFE#TRPBF
  • HTML
  • HTML
LTC3106EUDC#PBF
  • HTML
  • HTML
LTC3106EUDC#TRPBF
  • HTML
  • HTML
LTC3106IFE#PBF
  • HTML
  • HTML
LTC3106IFE#TRPBF
  • HTML
  • HTML
LTC3106IUDC#PBF
  • HTML
  • HTML
LTC3106IUDC#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3106EFE#PBF

PRODUCTION

LTC3106EFE#TRPBF

PRODUCTION

LTC3106IFE#PBF

PRODUCTION

LTC3106IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3106EFE#PBF

PRODUCTION

LTC3106EFE#TRPBF

PRODUCTION

LTC3106IFE#PBF

PRODUCTION

LTC3106IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 2

reference details image

DC2321A

Dust Energy Harvesting Demo Board with E-Ink Display, Designed to Connect to the DC2344A or DC2509A

zoom

DC2321A

Dust Energy Harvesting Demo Board with E-Ink Display, Designed to Connect to the DC2344A or DC2509A

Dust Energy Harvesting Demo Board with E-Ink Display, Designed to Connect to the DC2344A or DC2509A

Product Detail

Demonstration circuit 2321A is a low power wireless sensor node development platform equipped with an E-ink display for user feedback. The system is capable of monitoring and managing its available energy, logging information from sensors and sharing this data over a wireless network.


The board is designed to connect to the DC2344A or DC2509A energy harvesting demonstration boards which output a regulated power supply as well as status information from energy harvesting ICs and their backup batteries. Two coulomb counters on the DC2321A allow the processor to monitor the energy output of these batteries which will vary depending on the amount of energy which can be harvested from the system’s surroundings.


A DC2274A-A SmartMesh Manager must be used in order to evaluate the networking features of the DC2321A.

reference details image

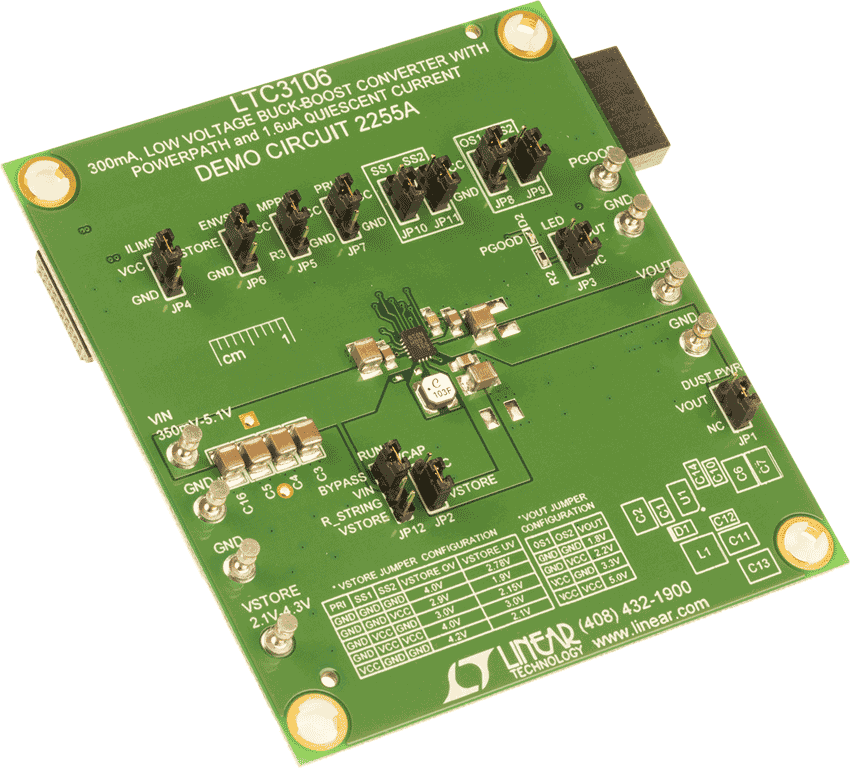

DC2255A

LTC3106EUDC Demo Board | Buck-Boost, 0.35V ≤ VIN ≤ 5.1V; VOUT = 1.8/2.2/3.3/5V @ 300mA

zoom

DC2255A

LTC3106EUDC Demo Board | Buck-Boost, 0.35V ≤ VIN ≤ 5.1V; VOUT = 1.8/2.2/3.3/5V @ 300mA

LTC3106EUDC Demo Board | Buck-Boost, 0.35V ≤ VIN ≤ 5.1V; VOUT = 1.8/2.2/3.3/5V @ 300mA

Product Detail

Demonstration circuit DC2255A features the LTC3106, an ultralow input voltage buck-boost DC/DC converter with automatic PowerPath management optimized for multisource, low power systems. The DC2255A has four user-selectable output voltages: 1.8V, 2.2V, 3.3V and 5V. Output current can be up to 300mA (for VIN > VOUT). the LTC3106 operates with input voltages as low as 0.35V, and Burst Mode® operation architecture allows it to run very efficiently with as little as 1.6μA of input current at no load.
