Overview

Features and Benefits

  • Measures Current, Voltage, Power, Charge, Energy
  • ±65A Current Range with Low 18mA Offset
  • Integrated 150µΩ Sense Resistor
  • 0V to 15V Input Range Independent of Supply Voltage
  • Instantaneous Multiplication of Voltage and Current
  • 0.5% Voltage Accuracy
  • 1% Current and Charge Accuracy
  • 1.2% Power and Energy Accuracy
  • Alerts When Thresholds Exceeded
  • Stores Maximum and Minimum Values
  • Shutdown Mode with IQ < 10µA
  • I2C/SPI Compatible Interface
  • Available in 38-Lead 5mm × 7mm QFN Package

Product Details

The LTC2947-65 is a high precision power and energy monitor with an internal sense resistor supporting up to ±65A*. Three internal No Latency Δ∑™ ADCs ensure accurate measurement of voltage and current, while highbandwidth analog multiplication of voltage and current provides accurate power measurement in a wide range of applications. Internal or external clocking options enable precise charge and energy measurements.

An internal 150µΩ, temperature-compensated sense resistor minimizes efficiency loss and external components, simplifying energy measurement applications while enabling high accuracy current measurement over the full temperature range.

All measured quanities are stored in internal registers accessible via the selectable I2C/SPI interface. The LTC2947-65 features programmable high and low thresholds for all measured quantities to reduce digital traffic with the host.

Applications

  • Servers
  • Telecom Infrastructure
  • Industrial
  • Electric Vehicles
  • Photovoltaics

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

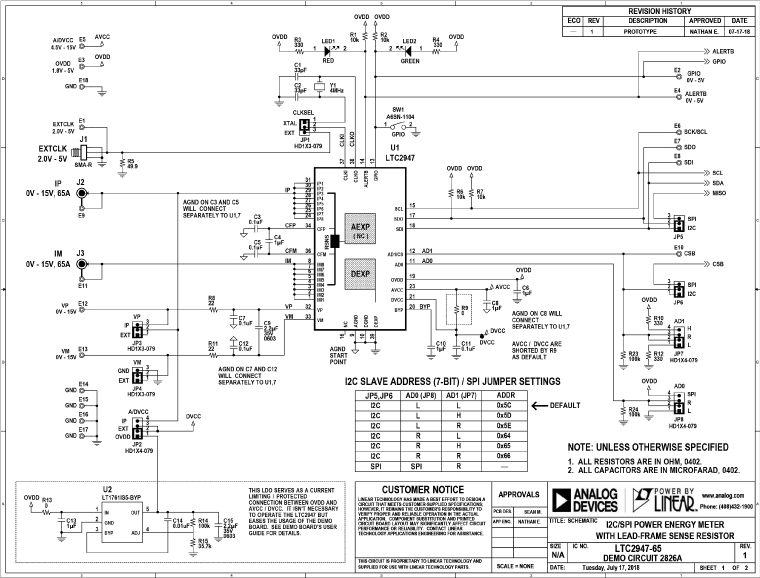

Evaluation Kits (1)

Documentation & Resources

  • View All (2)
  • Data Sheet (1)
  • Reliability Data (1)
    • Document Type

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC2947IUHF-65#PBF Material Declaration Reliability Data 38-Lead Plastic QFN (5mm × 7mm)
    LTC2947IUHF-65#TRPBF Material Declaration Reliability Data 38-Lead Plastic QFN (5mm × 7mm)
    Wafer Fabrication Data R567 Reliability Data
