LTC2911

RECOMMENDED FOR NEW DESIGNS

LTC2911

Precision Triple Supply Monitor with Power-Fail Comparator

RECOMMENDED FOR NEW DESIGNS

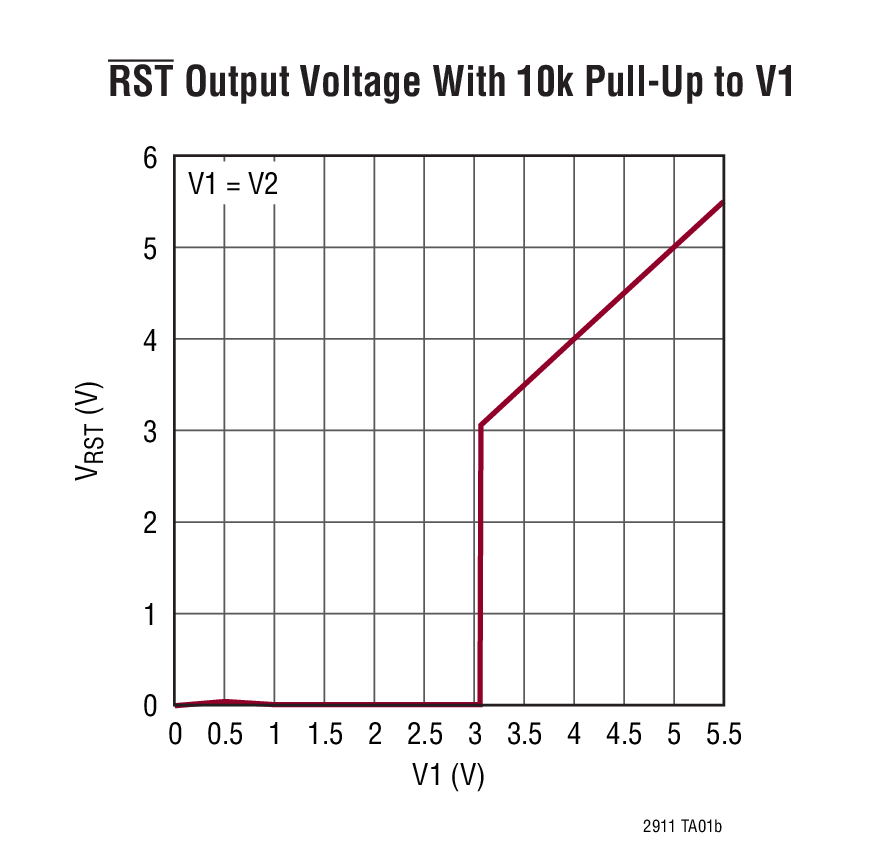

RST Output Voltage With 10k Pull-Up to V1 slide

RST Output Voltage With 10k Pull-Up to V1

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 60

1ku List Price Starting From $1.85

Features

Ultralow Voltage Reset: V_CC = 0.5V Guaranteed
Monitors Three Inputs Simultaneously:
- 3.3V, 5V, ADJ (LTC2911-1)
- 3.3V, 2.5V, ADJ (LTC2911-2)
- 3.3V, 1.8V, ADJ (LTC2911-3)
- 3.3V, 1.2V, ADJ (LTC2911-4)
- 3.3V, ADJ, ADJ (LTC2911-5)
±1.5% Threshold Accuracy
Power-Fail Monitor
RST State Can Be Held for Margining
Low Supply Current: 30μA Typical
Input Glitch Immunity
Adjustable Reset Timeout Period
Selectable Internal Timeout Saves Components

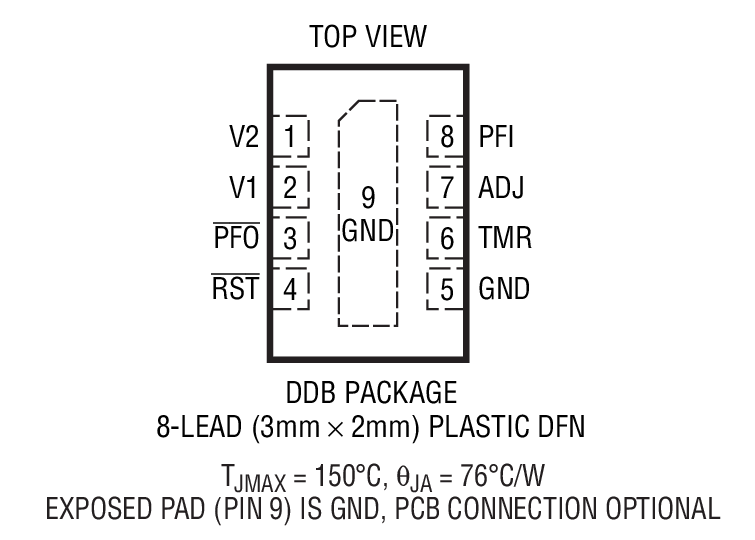

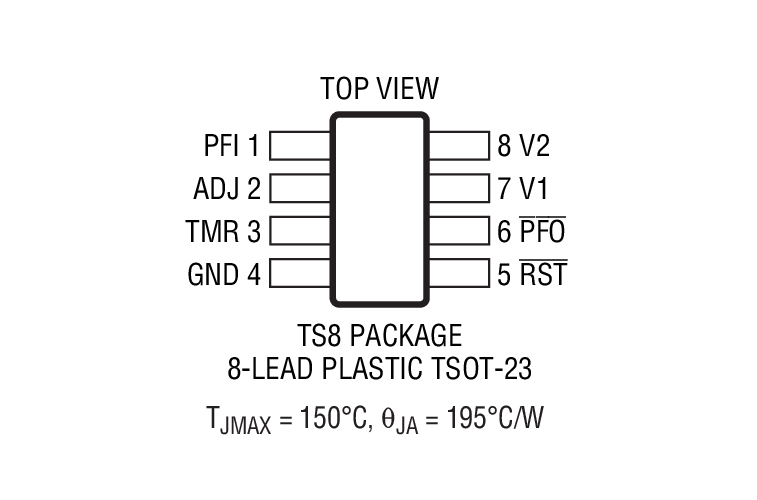

Space Saving 8-Lead TSOT-23 and 3mm × 2mm DFN Packages

Additional Details

The LTC2911 is a low power, high accuracy triple supply monitor with a power-fail comparator. Reset timeout may be selected with an external capacitor or set to an internally generated 200ms.

The V1 pin monitors a 3.3V supply. The V2 pin monitors a 5V, 2.5V, 1.8V, 1.2V or adjustable supply. A third adjustable input has a nominal 0.5V threshold allowing a resistive divider to configure its threshold. All three comparators feature a tight 1.5% threshold accuracy over the entire operating temperature range while a glitch filter ensures reliable reset operation.

A spare comparator can be configured to provide early warning of a low voltage condition. It causes the PFO output to pull low when the voltage of the PFI input falls below 0.5V, allowing the power-fail threshold to be configured with a resistive divider. A latch feature on the TMR pin allows the RST output to be latched to prevent system resets, simplifying margin testing.

Applications

Network Servers
Desktop and Notebook Computers
Automotive and Industrial Electronics
