Visit the ADI Support PageFeatures
- 10Msps Throughput Rate
- No Pipeline Delay, No Cycle Latency

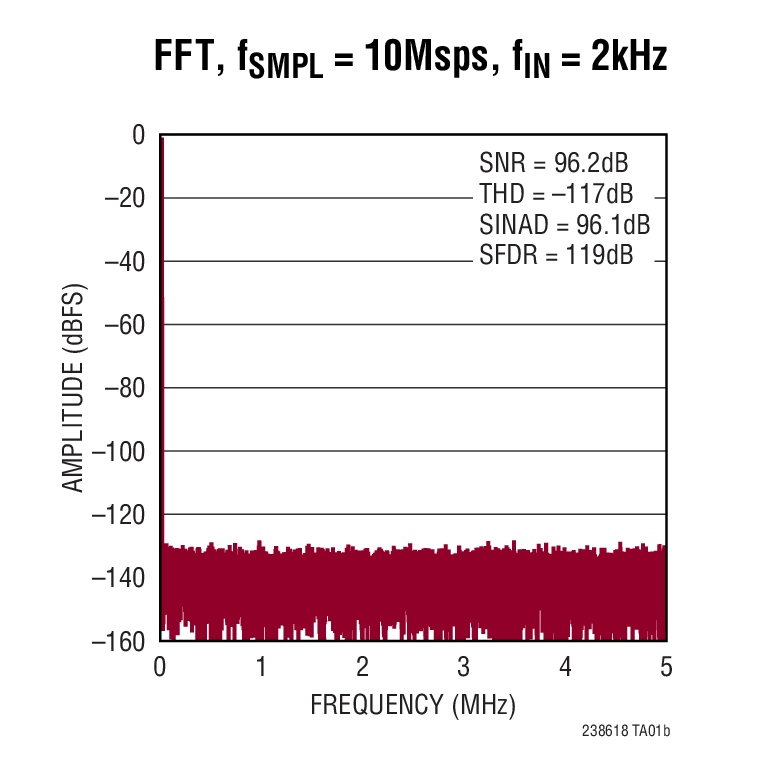

- 95.7dB SNR (Typ) at fIN = 1MHz
- 102dB SFDR (Typ) at fIN = 1MHz
- Nyquist Sampling Up to 5MHz Input
- Guaranteed 18-Bit, No Missing Codes
- ±1.75LSB INL (Max)
- 8.192VP-P Differential Inputs
- 5V and 2.5V Supplies
- Internal 20ppm/°C (Max) Reference
- Serial LVDS Interface
- 97mW Power Dissipation

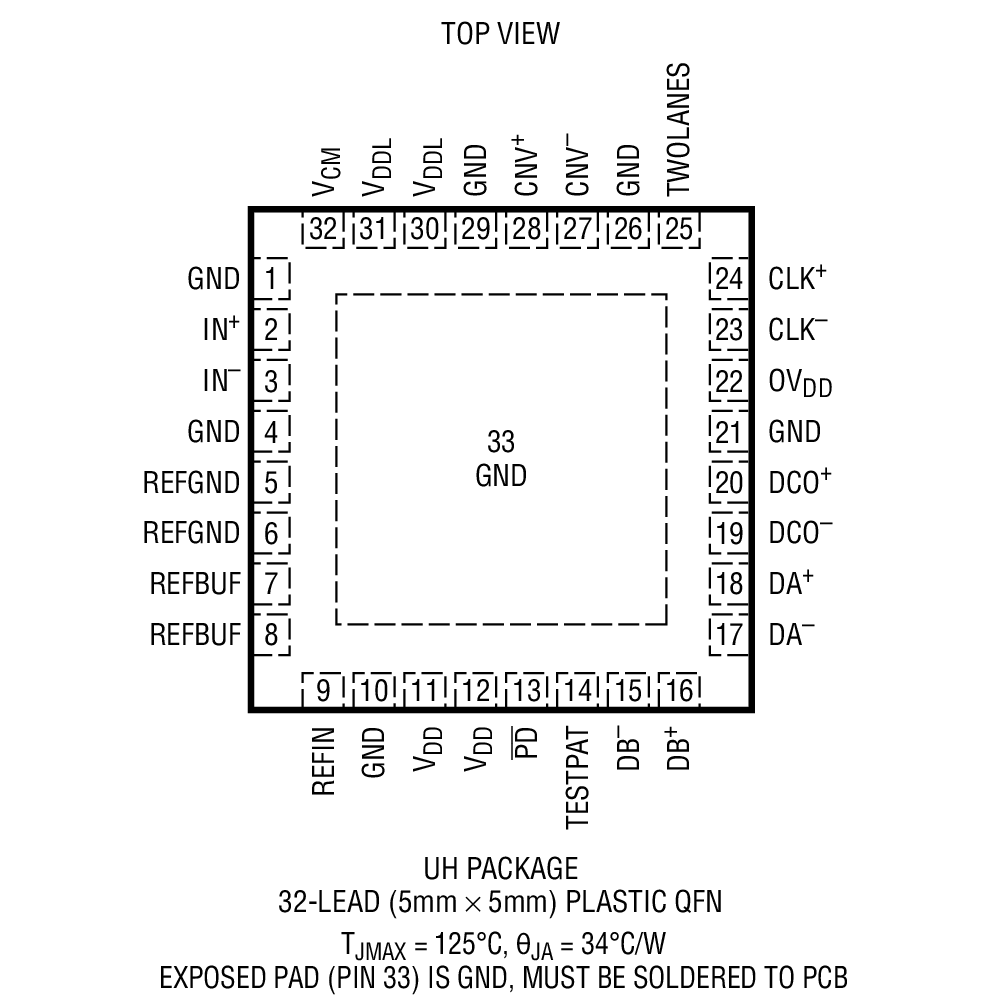

- 32-Pin (5mm × 5mm) QFN Package

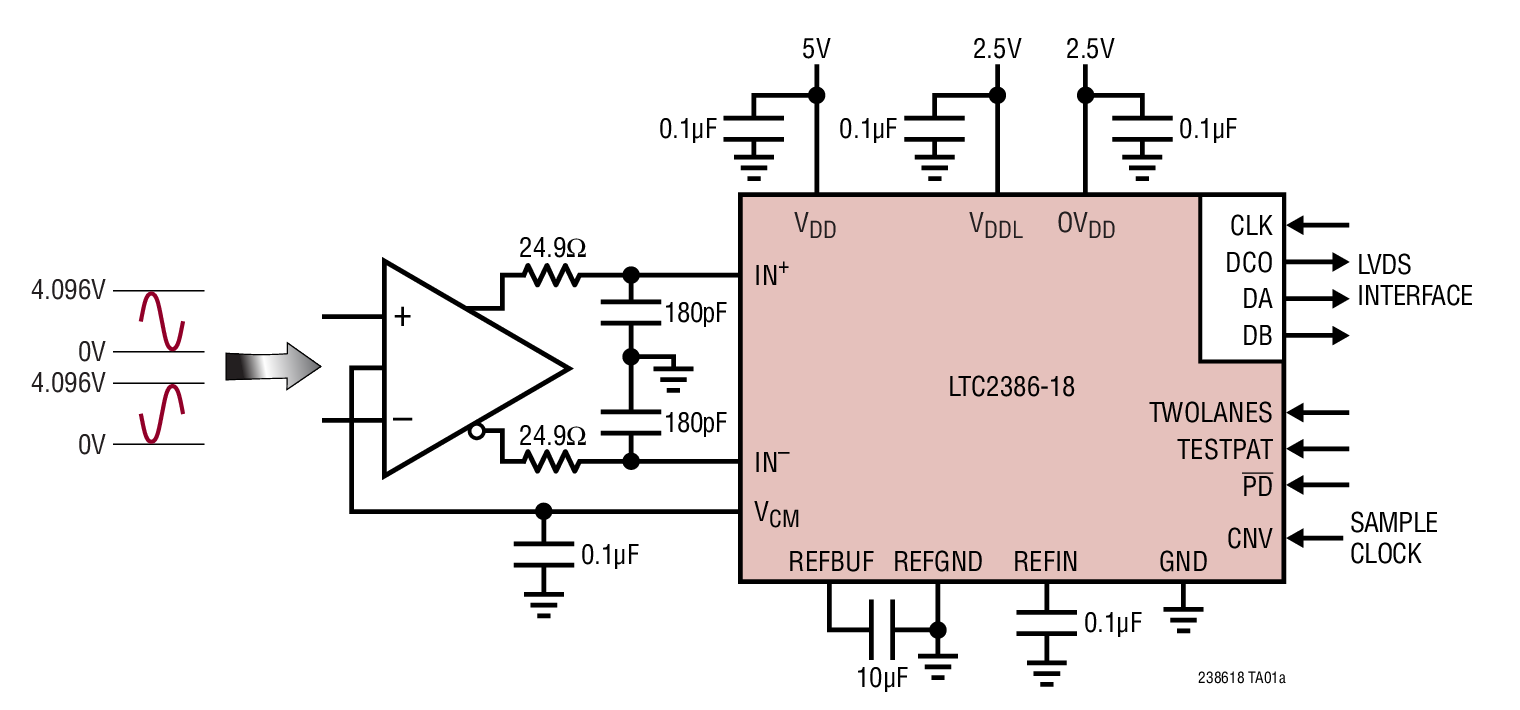

The LTC2386-18 is a low noise, high speed, 18-bit 10Msps successive approximation register (SAR) ADC ideally suited for a wide range of applications. The combination of excellent linearity and wide dynamic range makes the LTC2386-18 ideal for high speed imaging and instrumentation applications. No-latency operation provides a unique solution for high speed control loop applications. The very low distortion at high input frequencies enables communications applications requiring wide dynamic range and significant signal bandwidth.
To support high speed operation while minimizing the number of data lines, the LTC2386-18 features a serial LVDS digital interface. The LVDS interface has one-lane and two-lane output modes, allowing the user to optimize the interface data rate for each application.
Applications
- High Speed Data Acquisition
- Imaging
- Communications
- Control Loops
- Instrumentation
- ATE
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC2386-18
Documentation
Filters
1 Applied
Data Sheet
2
User Guide
1
1.00M
Reliability Data
1
43.73 K
Technical Articles
2
HTML
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Technical Articles 2
Product Selector Card 2
Rarely Asked Question Page 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
LTC2386CUH-18#PBF | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) |
|
|
LTC2386CUH-18#TRPBF | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) |
|
|
LTC2386IUH-18#PBF | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) |
|
|
LTC2386IUH-18#TRPBF | 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP) |
|
- LTC2386CUH-18#PBF
- Pin/Package Drawing
- 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- LTC2386CUH-18#TRPBF
- Pin/Package Drawing
- 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- LTC2386IUH-18#PBF
- Pin/Package Drawing
- 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- LTC2386IUH-18#TRPBF
- Pin/Package Drawing
- 32-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 20, 2022
- 21_0269
Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products
LTC2386CUH-18#PBF
PRODUCTION
LTC2386CUH-18#TRPBF
PRODUCTION
LTC2386IUH-18#PBF
PRODUCTION
LTC2386IUH-18#TRPBF
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 20, 2022
- 21_0269
Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products
LTC2386CUH-18#PBF
PRODUCTION
LTC2386CUH-18#TRPBF
PRODUCTION
LTC2386IUH-18#PBF
PRODUCTION
LTC2386IUH-18#TRPBF
PRODUCTION
Software & Part Ecosystem
Parts | Product Life Cycle | Description | ||
---|---|---|---|---|
High Speed Op Amps (Bandwidth ≥ 50MHz)1 |
||||
PRODUCTION |
Dual 165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Op Amp Family |
|||
Series Voltage References1 |
||||
PRODUCTION |
0.25ppm Noise, Low Drift Precision References |
Parts | Product Life Cycle | Description |
---|---|---|
PRODUCTION |
18-Bit, 15Msps SAR ADC |
A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.
The PScope System is a USB-based product demonstration and data acquisition system for use with high performance ADCs and signal chain receiver family. PScope allows users to evaluate the SNR, SFDR, THD, as well as other key parameters, quickly and easily.
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
DC2290A-C
LTC2386-18 Demo Board | 18-Bit, 10Msps SAR ADC (Requires DC718 & ADC Driver board)
Product Detail
Demonstration circuit 2290A features the LTC2387 family. With up to 15Msps, these differential input, single channel, 18-/16-Bit, serial, high speed successive approximation register (SAR) ADCs are available in a 32-Pin QFN package. The LTC2387 family has an internal 20ppm/°C reference and a serial LVDS interface. The demo manual refers to the LTC2387 but applies to all members of the family, the only difference being the sample rate and the number of bits. The DC2290A demonstrates the AC performance of the LTC2387 in conjunction with the DC718 data collection board. Differential amplifier demo boards are available separately that provide amplification of low level differential signals if required. Alternatively, by connecting the DC2290A into a customer application the performance of the LTC2387 can be evaluated directly in that circuit.
Resources
Tools & Simulations 2
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
