LTC2311-12

12-Bit + Sign, 5Msps Differential Input ADC with Wide Input Common Mode Range

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $6.70
Features
  • 5Msps Throughput Rate
  • ±0.25LSB INL (Typ), ±1LSB INL Guaranteed
  • Guaranteed 12-Bit, No Missing Codes
  • 8VP-P Differential Inputs with Wide Input Common Mode Range

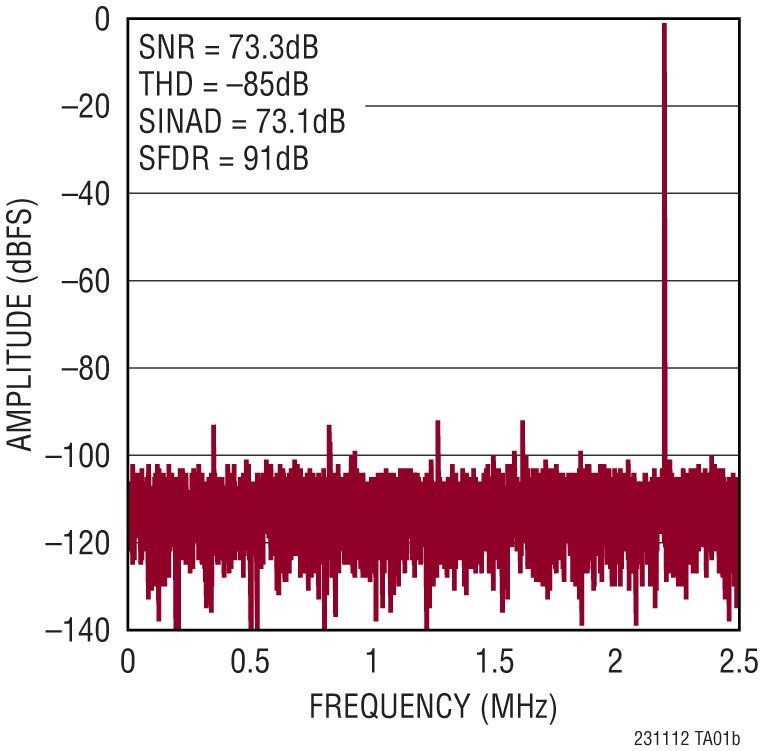

  • 73dB SNR (Typ) at fIN = 2.2MHz
  •  –85dB THD (Typ) at fIN = 2.2MHz
  • Guaranteed Operation –40°C to 125°C
  • Single 3.3V or 5V Supply
  • Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference with 1.25V External Reference Input
  • 1.8V to 2.5V I/O Voltages
  • CMOS or LVDS SPI-Compatible Serial I/O
  • Power Dissipation 50mW at VDD = 5V (Typ)

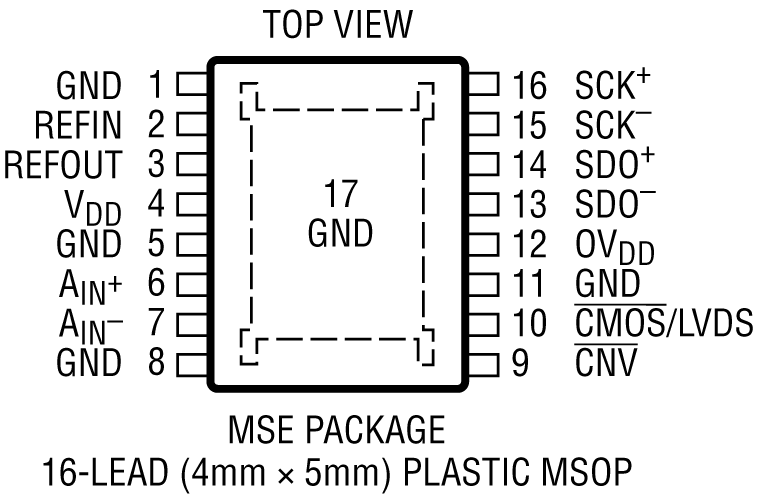

  • Small 16-Lead (4mm × 5mm) MSOP Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

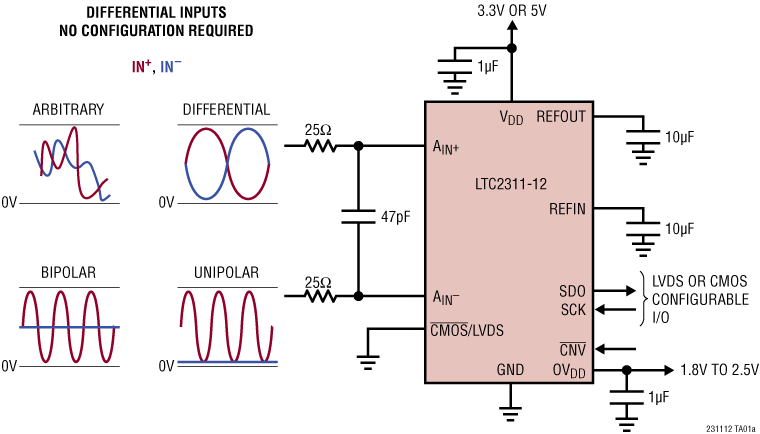

The LTC2311-12 is a low noise, high speed 12-bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2311-12 has an 8VP-P differential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2311-12 achieves ±0.25LSB INL typical, no missing codes at 12 bits and 73dB SNR typical.

The LTC2311-12 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature compensated reference and provides an external 1.25V buffered reference input. The LTC2311-12 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 5Msps throughput with one-cycle latency makes the LTC2311-12 ideally suited for a wide variety of high speed applications. The LTC2311-12 dissipates only 50mW with a 5V supply and offers nap and sleep modes to reduce the power consumption for further power savings during inactive periods.

APPLICATIONS

  • High Speed Data Acquisition Systems
  • Communications
  • Remote Data Acquisition
  • Imaging
  • Optical Networking
  • Automotive
  • Multiphase Motor Control
Part Models 10
1ku List Price Starting From $6.70

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2311CMSE-12#PBF
  • HTML
  • HTML
LTC2311CMSE-12#TRPBF
  • HTML
  • HTML
LTC2311HMSE-12#PBF
  • HTML
  • HTML
LTC2311HMSE-12#TRPBF
  • HTML
  • HTML
LTC2311HMSE-12#WPBF
  • HTML
  • HTML
LTC2311HMSE-12#WTRPBF
  • HTML
  • HTML
LTC2311IMSE-12#PBF
  • HTML
  • HTML
LTC2311IMSE-12#TRPBF
  • HTML
  • HTML
LTC2311IMSE-12#WPBF
  • HTML
  • HTML
LTC2311IMSE-12#WTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2311CMSE-12#PBF

PRODUCTION

LTC2311CMSE-12#TRPBF

PRODUCTION

LTC2311HMSE-12#PBF

PRODUCTION

LTC2311HMSE-12#TRPBF

PRODUCTION

LTC2311IMSE-12#PBF

PRODUCTION

LTC2311IMSE-12#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2311CMSE-12#PBF

PRODUCTION

LTC2311CMSE-12#TRPBF

PRODUCTION

LTC2311HMSE-12#PBF

PRODUCTION

LTC2311HMSE-12#TRPBF

PRODUCTION

LTC2311IMSE-12#PBF

PRODUCTION

LTC2311IMSE-12#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem


LinearLab Tools
Info:False

A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

reference details image

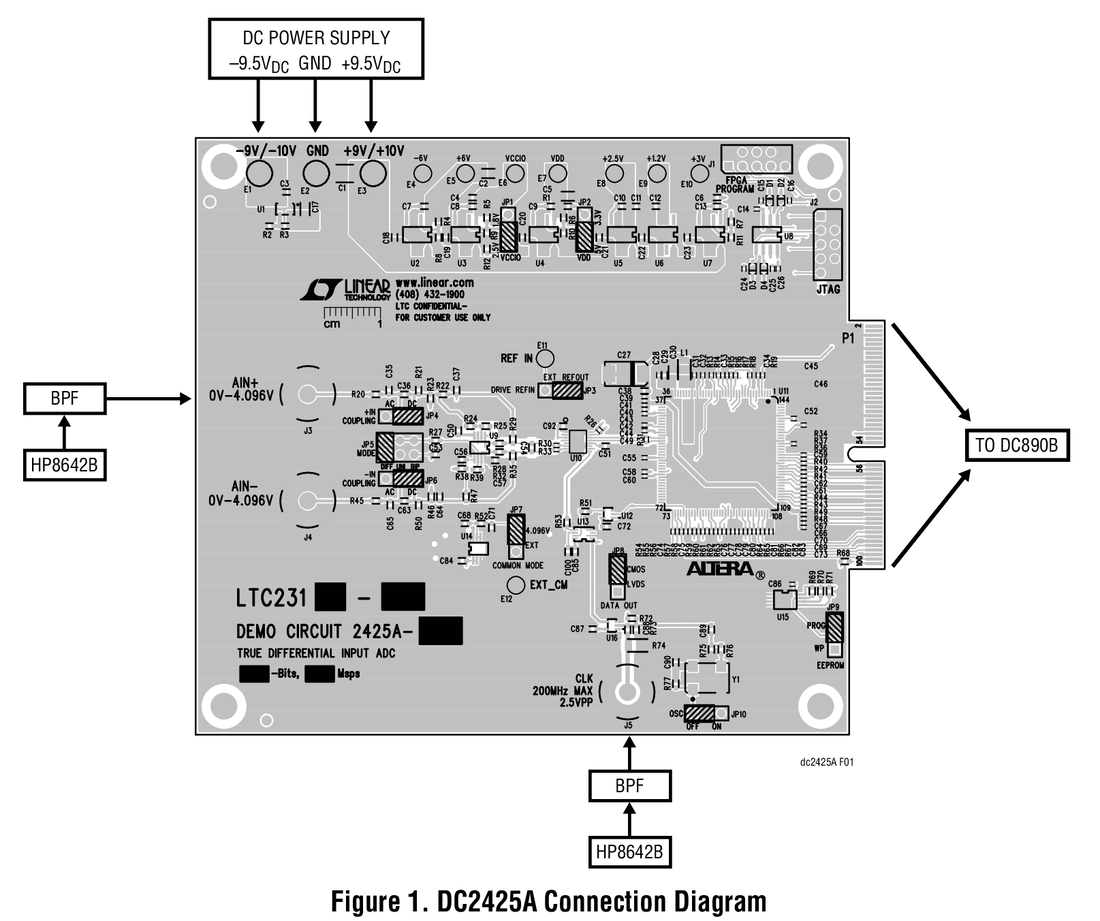

DC2425A-E

LTC2311-12 Demo Board | 12-Bit, 5Msps True Differential Input Serial SAR ADC (Req DC890)

zoom

DC2425A-E

LTC2311-12 Demo Board | 12-Bit, 5Msps True Differential Input Serial SAR ADC (Req DC890)

LTC2311-12 Demo Board | 12-Bit, 5Msps True Differential Input Serial SAR ADC (Req DC890)

Product Detail

Demonstration circuit 2425A features the LTC®2311 family. With up to 5Msps, these differential, single channel, 16-bit, serial, high speed successive approximation register (SAR) ADCs are available in a 16-lead MSOP package. The LTC2311 family has an internal 20ppm/°C maximum drift reference and an SPI-compatible serial interface that supports CMOS and LVDS logic. Note the demo board is configured for CMOS operation by default; see the note under JP3 for LVDS operation. The demo manual refers to the LTC2311, but applies to all members of the family, the only difference being the sample rate and/or the number of bits.





Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
